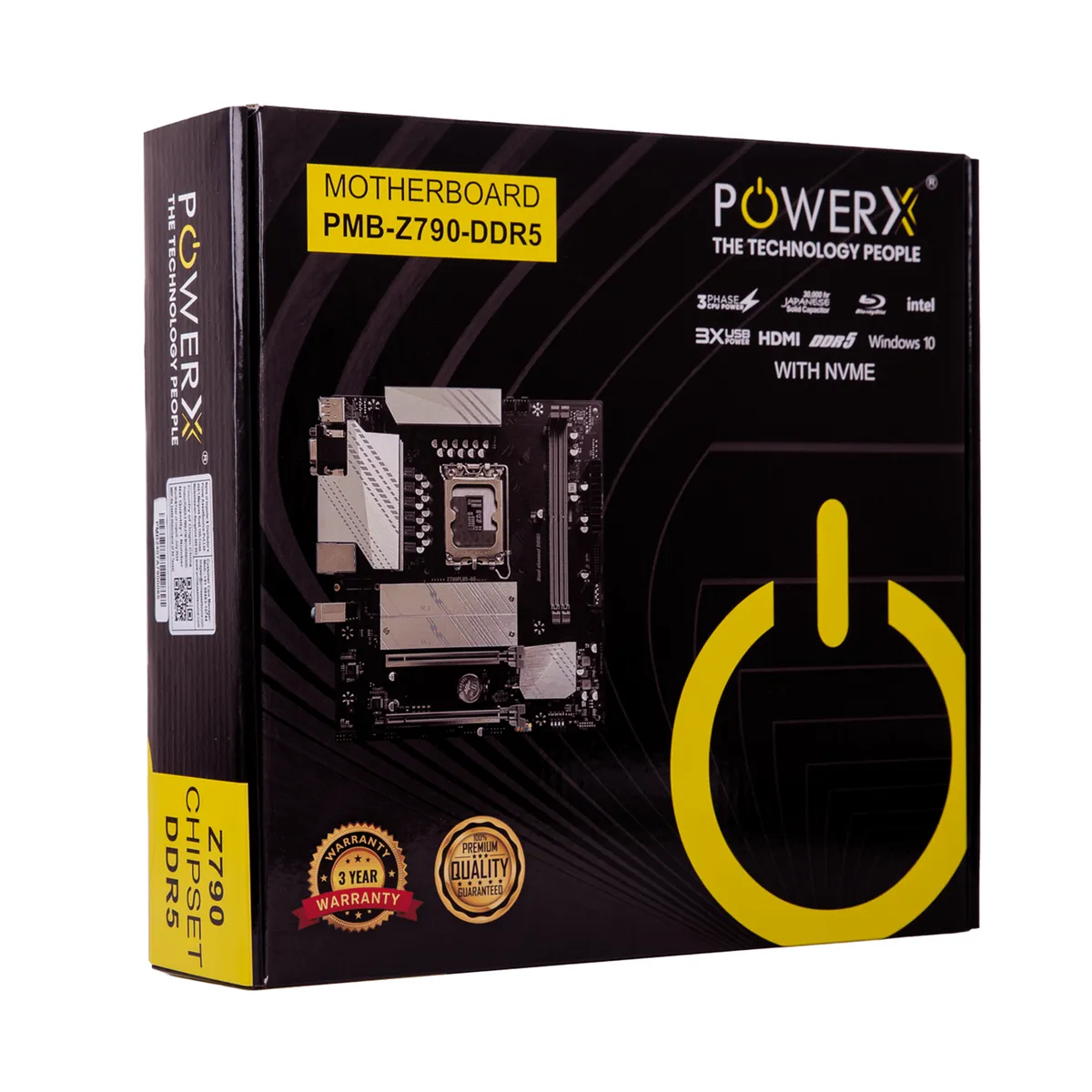

POWERX PMB-Z790-DDR5 MOTHERBOARD
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-Z790-DDR5 MOTHERBOARD
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India
The PMBZ790DDR5 Micro-ATX Motherboard is a strong and future-ready platform based on the Intel Z790 chipset. It supports 12th, 13th, and 14th Generation Intel Core i3, i5, i7, and i9 processors with the LGA 1700 socket. It supports DDR5 memory with two DIMM slots, allowing up to 128GB dual-channel RAM at speeds of up to 6400MHz. The Micro-ATX form factor (22 x 24cm) makes it perfect for high-performance PCs.
This motherboard provides outstanding expansion with two PCIe x16 slots, two M.2 NVMe slots, and a dedicated M.2 CNVi Wi-Fi slot, as well as three SATA ports for flexible storage. HDMI, VGA, DisplayPort, USB 3.2, and USB 2.0 connections are all available, as well as a high-speed LAN capable of 100/1000/2500 Mbps. Other features include AMI EFI BIOS, onboard audio with front audio support, CPU and system fan headers, and extensive OS compatibility with Windows, Linux, and Chrome OS. Accessories include an I/O panel, SATA cable, user manual, and driver CD, making it an extensive and trustworthy option for modern PC designs.
| Specification | Details |
| Model | PMBZ790DDR5 |

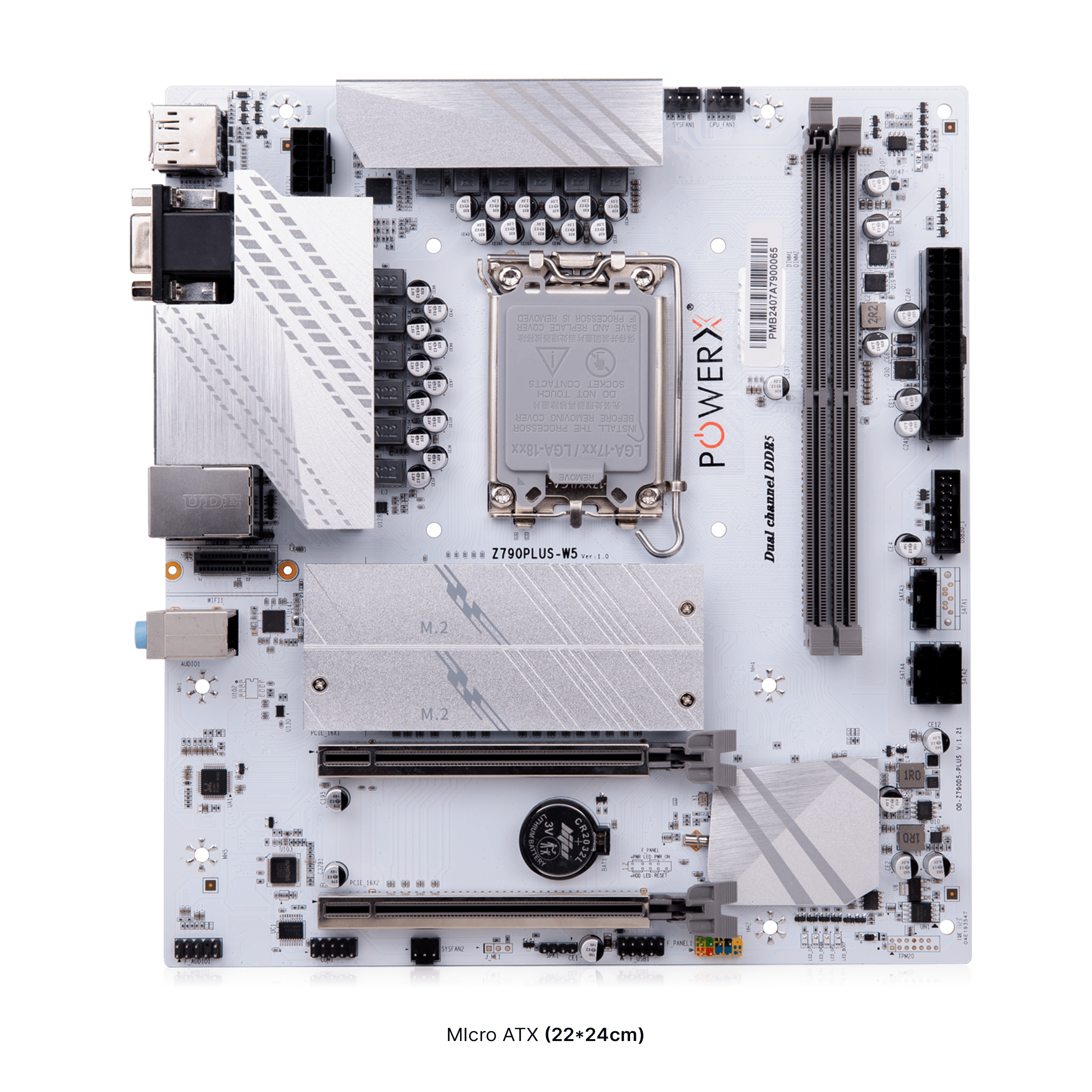

| Form Factor | Micro ATX (22 x 24cm) |
| Chipset | Z790 |
| CPU Support | 12th, 13th and 14th Gen |
| Socket | LGA 1700 |
| Processor Support | Intel Core i3/i5/i7/i9 |
| BIOS | AMI EFI |
| Memory Type | DDR5 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 128GB (64GB x 2) |
| Memory Speed | 6400 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x2 |
| M.2 NVMe Slots | x2 |
| M.2 Wi-Fi Slot | x1 |
| SATA Ports | x3 |

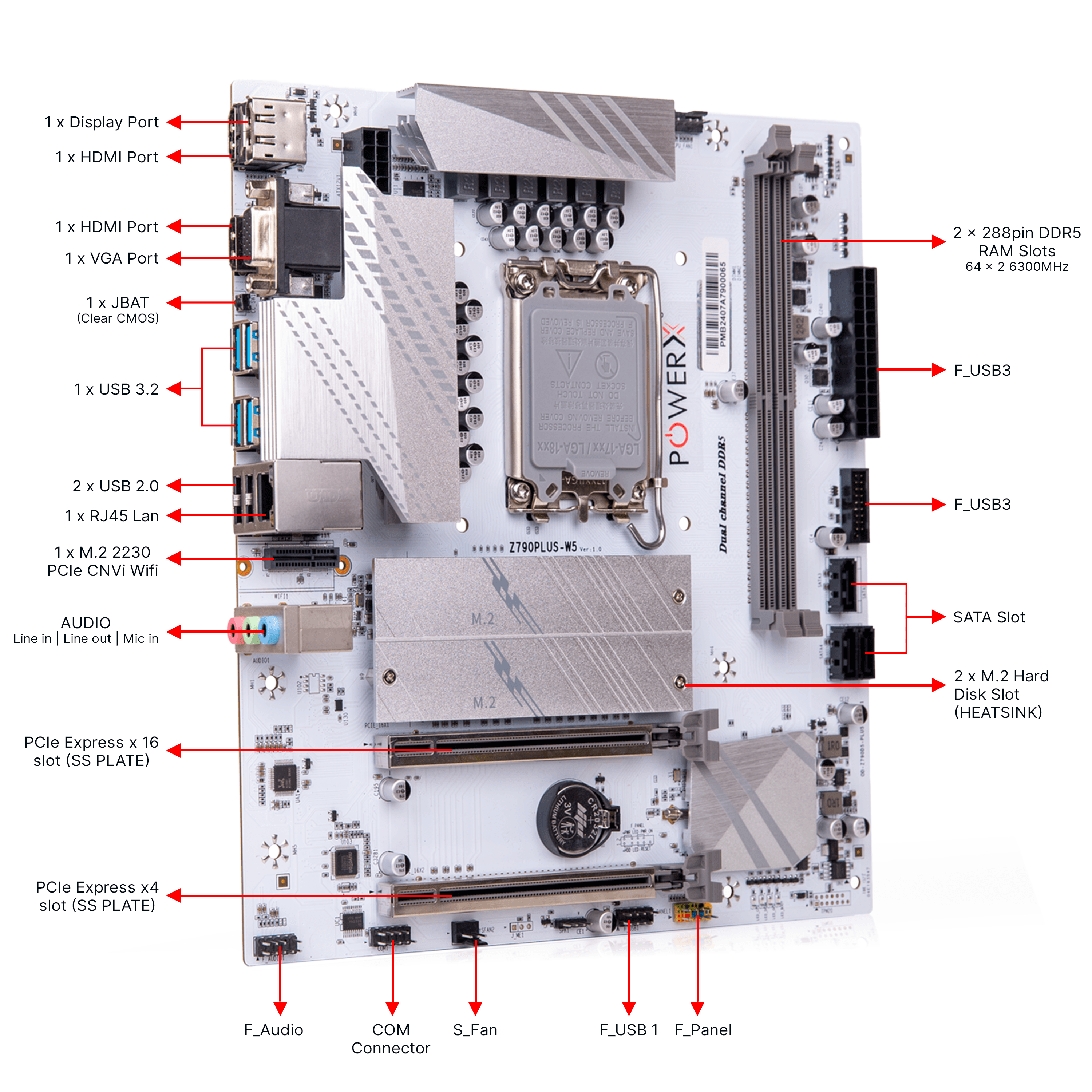

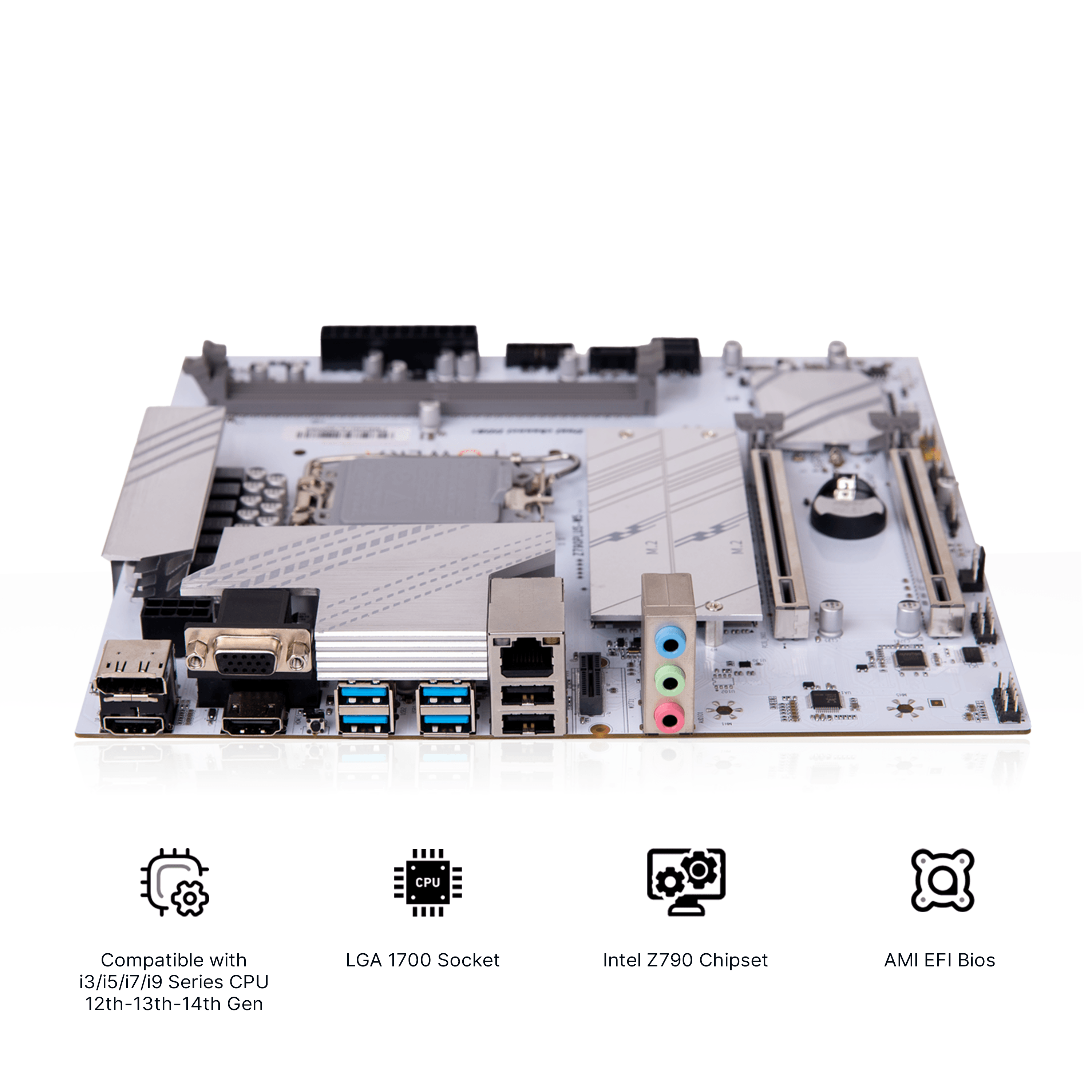

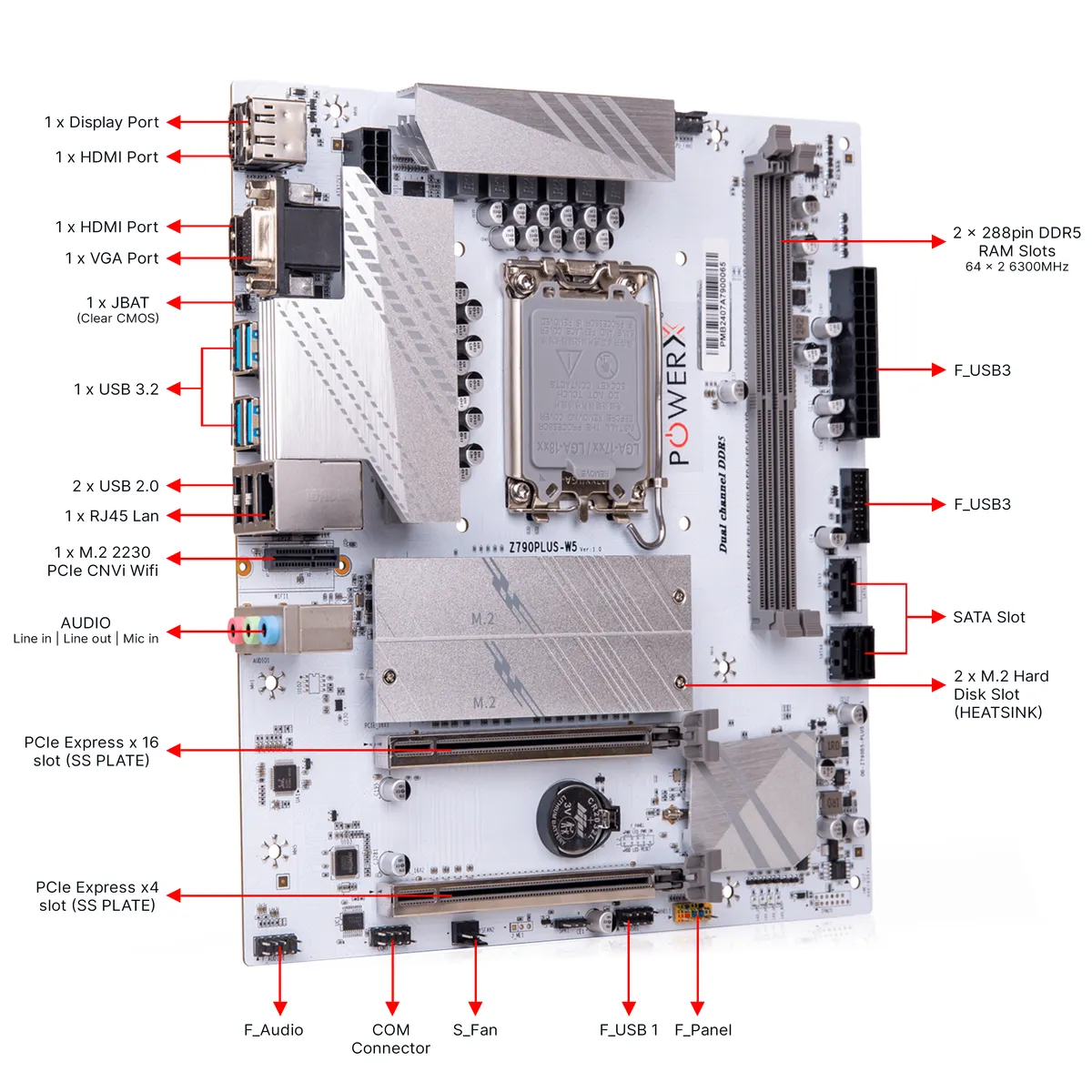

| I/O Panel | 1 x DP | 2 x HDMI | 1 x VGA | 4 x USB3.2 | 2 x USB2.0 | 3 in 1 Audio | LAN (RJ45) speeds of 100/1000/2500Mbps |
| Expansion Slots | 2 x PCIe x 16 | M.2 2230 PCIe CNVi Wi-fi Slot | 2 x NVMe Slots |
| HDMI Ports | x2 |
| Display Port | x1 |
| USB Ports | USB 3.2 x 4 | USB 2.0 x 2 |
| USB Front Header | Yes |

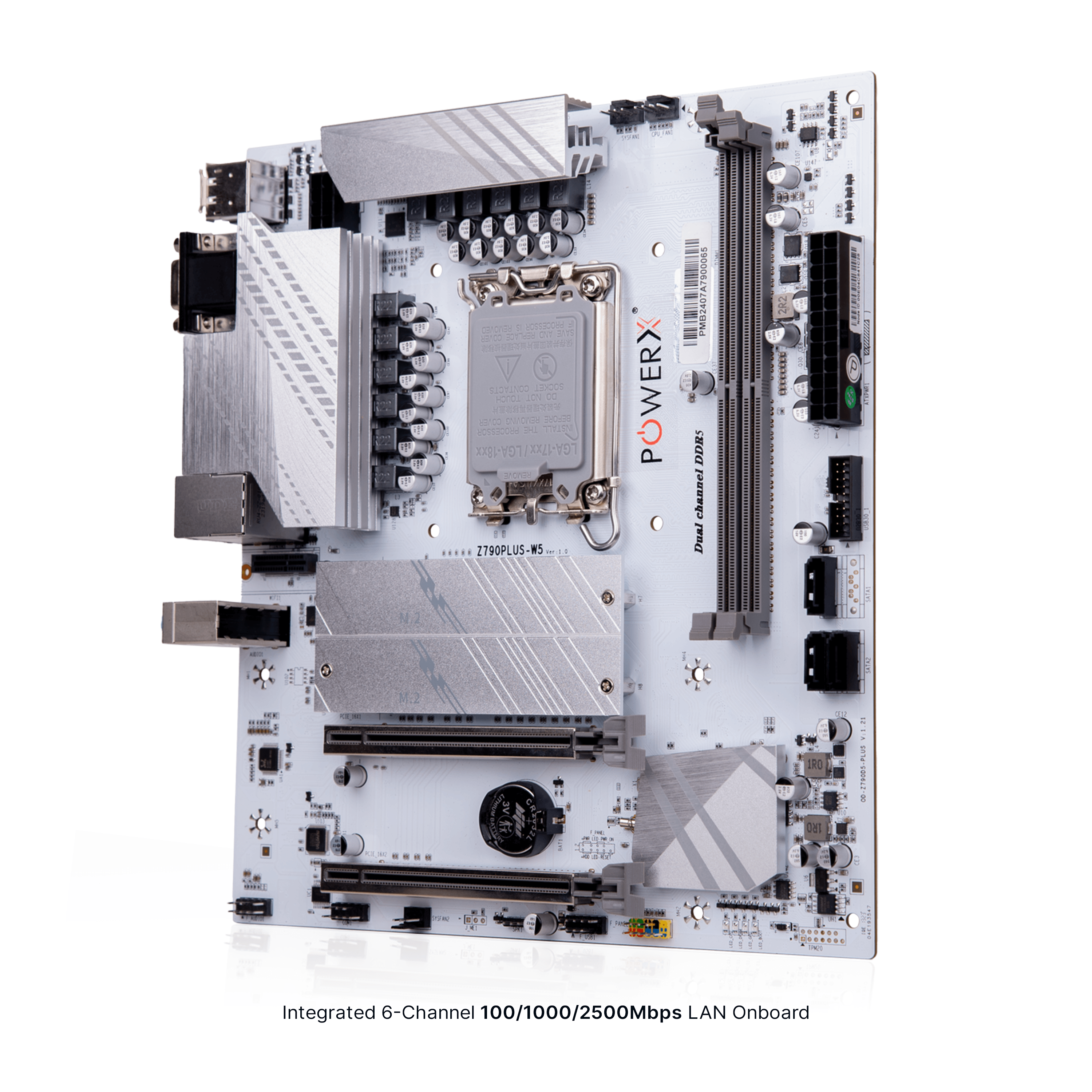

| LAN | 100/1000/2500 Mbps |
| Wi-Fi | M.2 PCIe CNVi |
| Audio | Line in / Line out / Mic In |
| Front Audio | Yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |

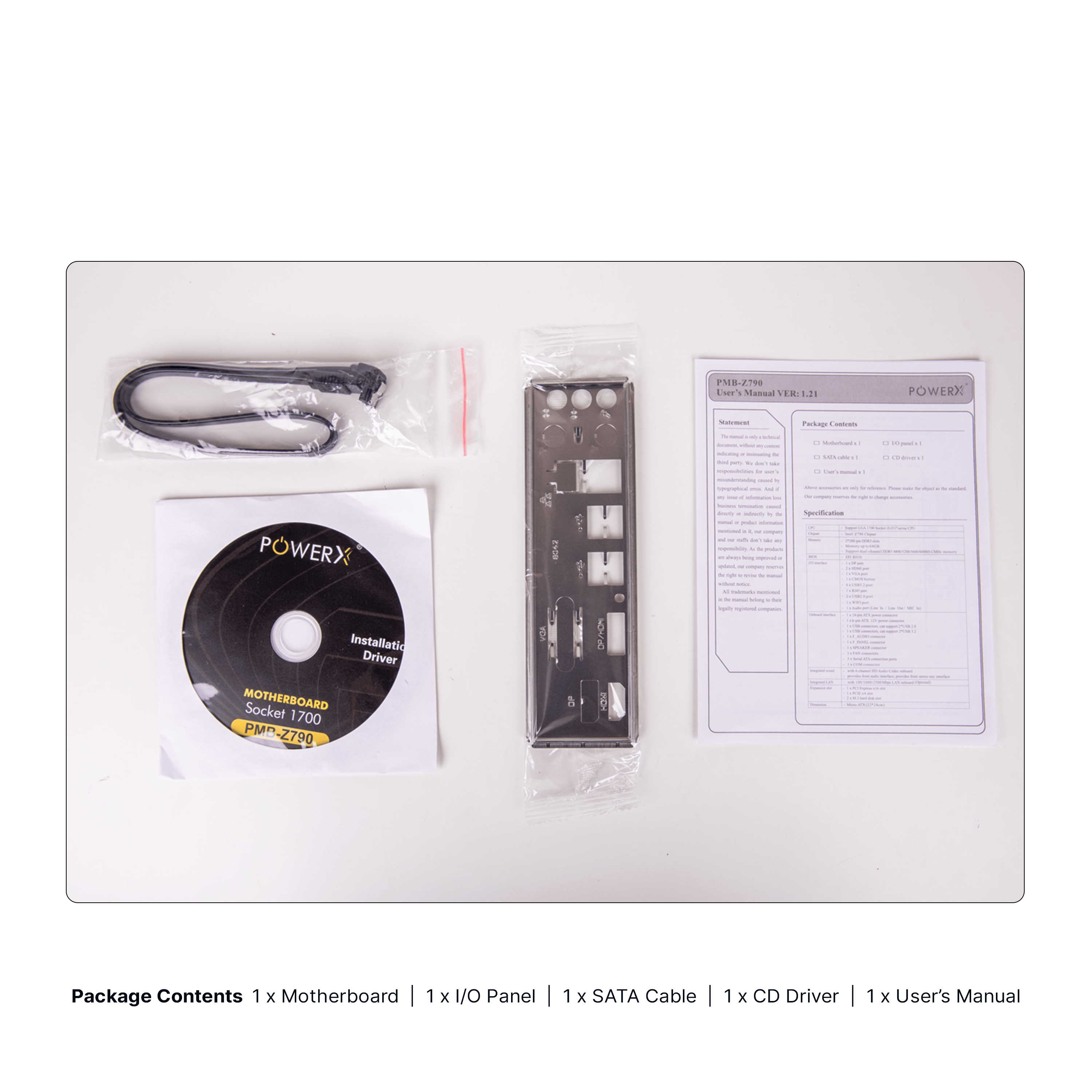

| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
