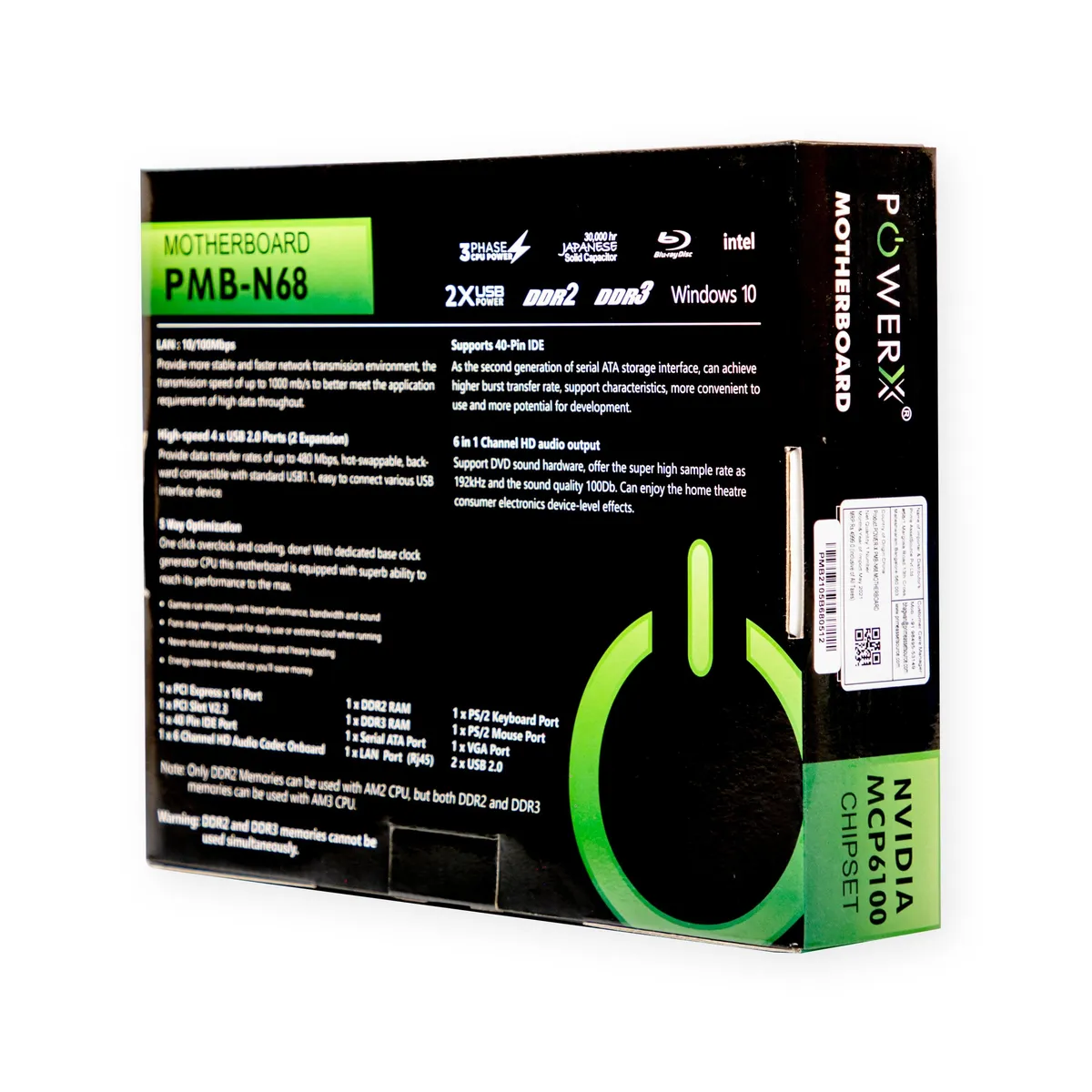

POWERX PMB-N68-DDR2/DDR3 MOTHERBOARD
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-N68-DDR2/DDR3 MOTHERBOARD
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India
%20is%20an%20accurate%20option%20for%20AMD%20desktop%20setups%20and%20upgrades.%20The%206100/7025%20chipset%20and%20AM2/AM2+/AM3%20socket%20support%20a%20variety%20of%20AMD%20processors,%20including...
){kind=link}

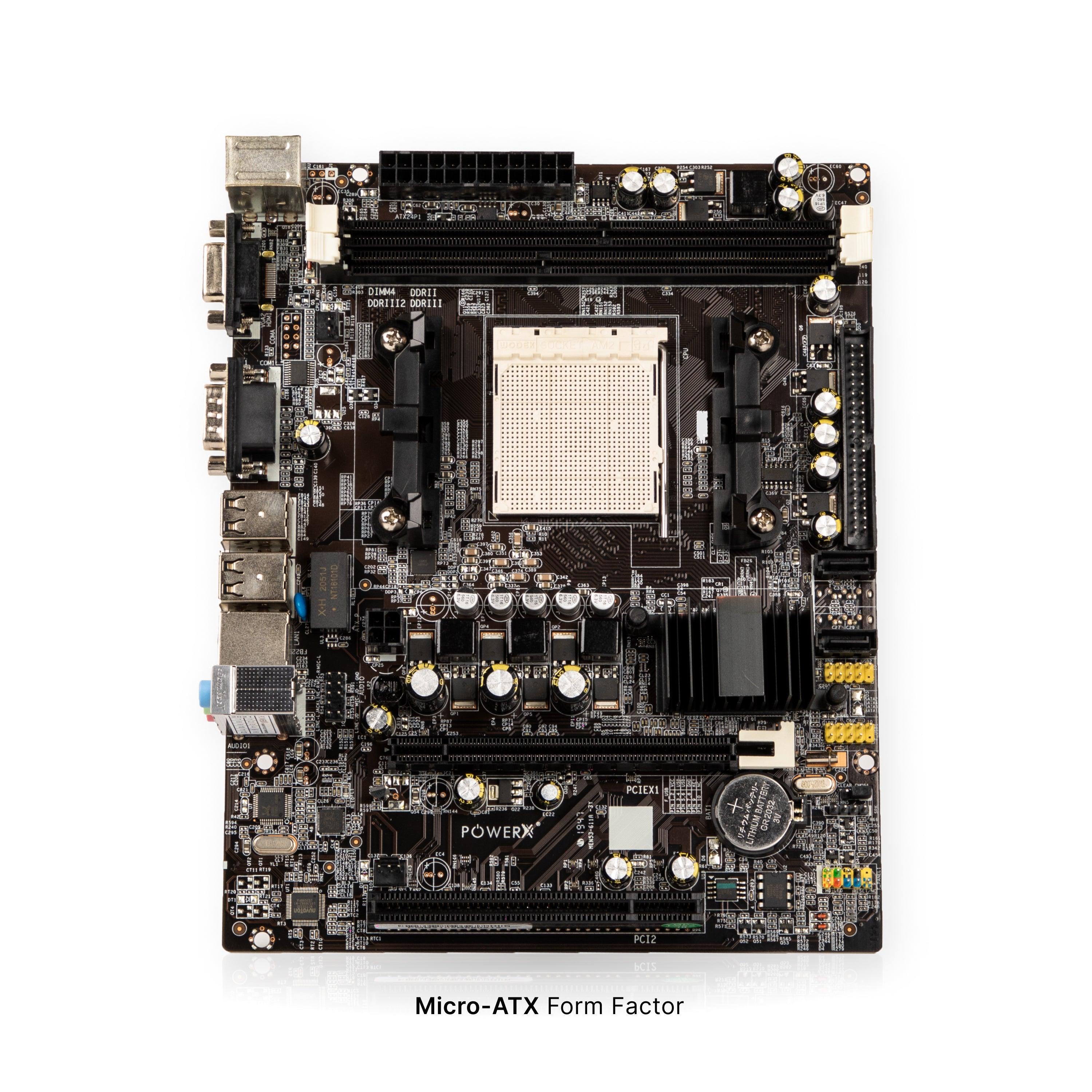

The PMBN68 Micro-ATX Motherboard (17 × 21 cm) is an accurate option for AMD desktop setups and upgrades. The 6100/7025 chipset and AM2/AM2+/AM3 socket support a variety of AMD processors, including Phenom™ II X6/X4/X3/X2 (except 920/940), Athlon™ II X4/X3/X2, and Sempron CPU. This motherboard provides consistent computing performance with DDR2 and DDR3 memory compatibility, dual-channel capability, and up to 8GB RAM (4GB × 2) at 1333 MHz.
The PMBN68 is designed for expansion, with two PCIe x16 slots, two SATA connections, and one IDE connector to accommodate legacy storage. The back I/O panel provides VGA output, PS/2, COM port, 4x USB 2.0 ports, 3-in-1 audio, and 10/100 Mbps LAN connectivity. AMI BIOS, front USB and audio connectors, CPU and system fan headers, and extensive compatibility with Windows, Linux, and Chrome OS are among the additional features. The kit contains the motherboard, I/O panel, SATA cable, driver disc, and user manual, making it perfect for budget-friendly setups and system replacements.

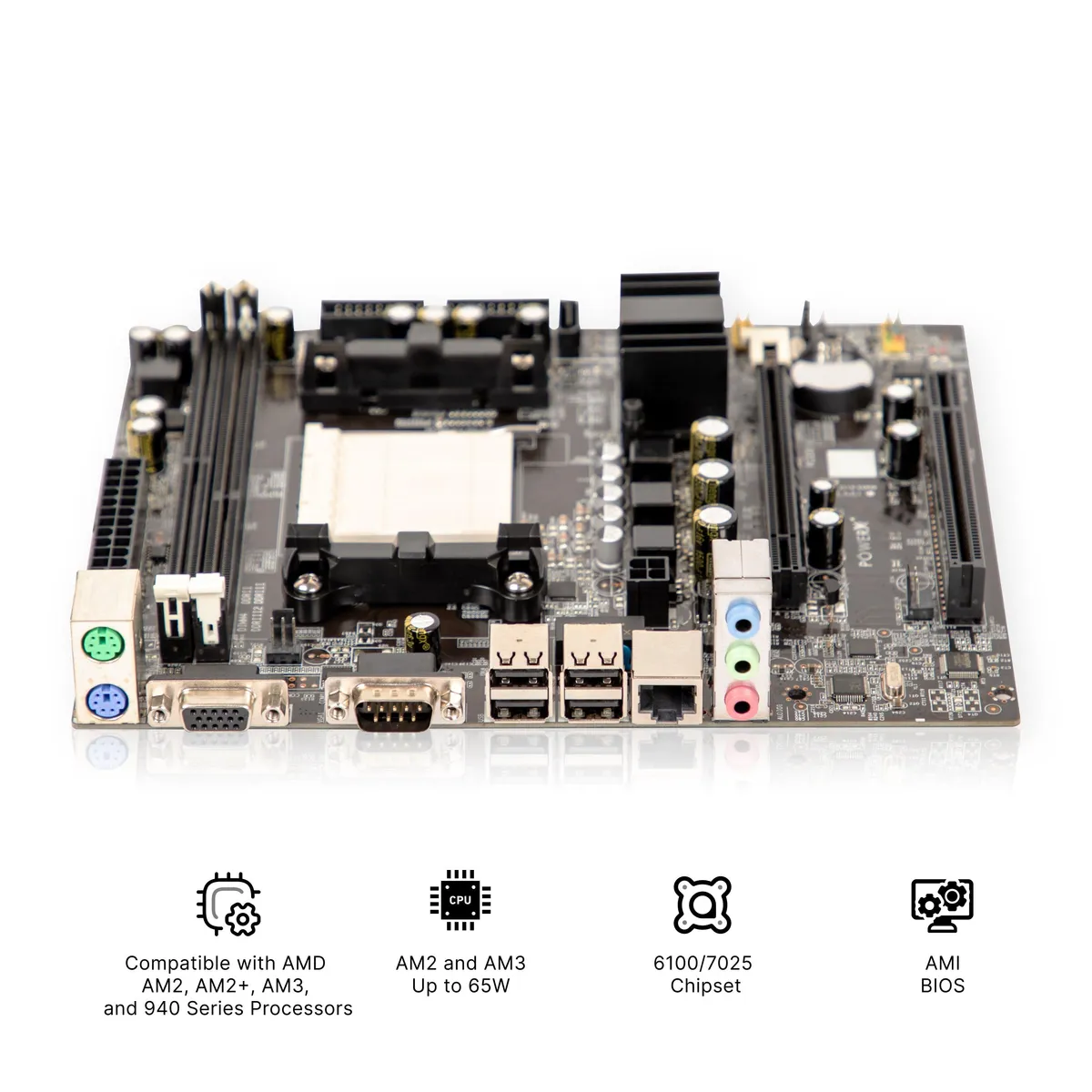

CPU Compatibility – Supports AMD AM2, AM2+, AM3, and 940 CPUs
| Specification | Details |
| Model | PMBN68 |
| Form Factor | Micro ATX (17 x 21cm) |
| Chipset | 6100 / 7025 |
| CPU Support | AM2 / AM2+ / AMD3 Series |
| Socket | AMD Phenom™ II X6/X4/X3/X2 (except 920 /940)/ Athlon II X4 / X3 /X2 / Sempron |
| Processor Support | AMD |
| BIOS | AMI |
| Memory Type | DDR2 / DDR3 |
| Memory Slots | 1 x DDR2 | 1 x DDR3 |
| Maximum Memory | 8GB (4GB x 2) |
| Memory Speed | 1333 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x2 |
| SATA Ports | x2 |

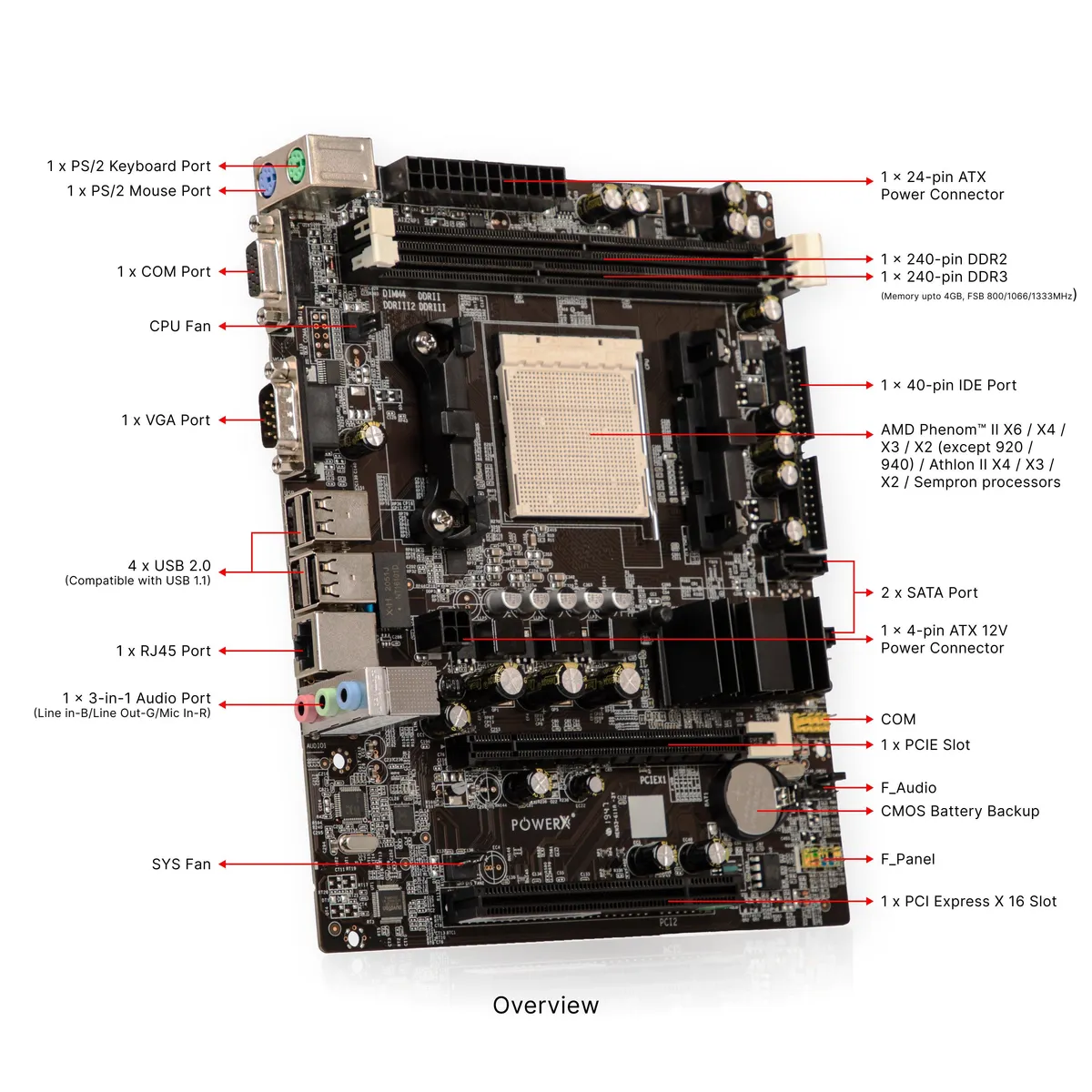

| I/O Panel | 1 x PS2 | 1 x VGA | 1 x COM | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) speeds of 10/100Mbps |
| USB Rear Ports | USB 2.0 x 4 |
| USB Front Header | Yes |

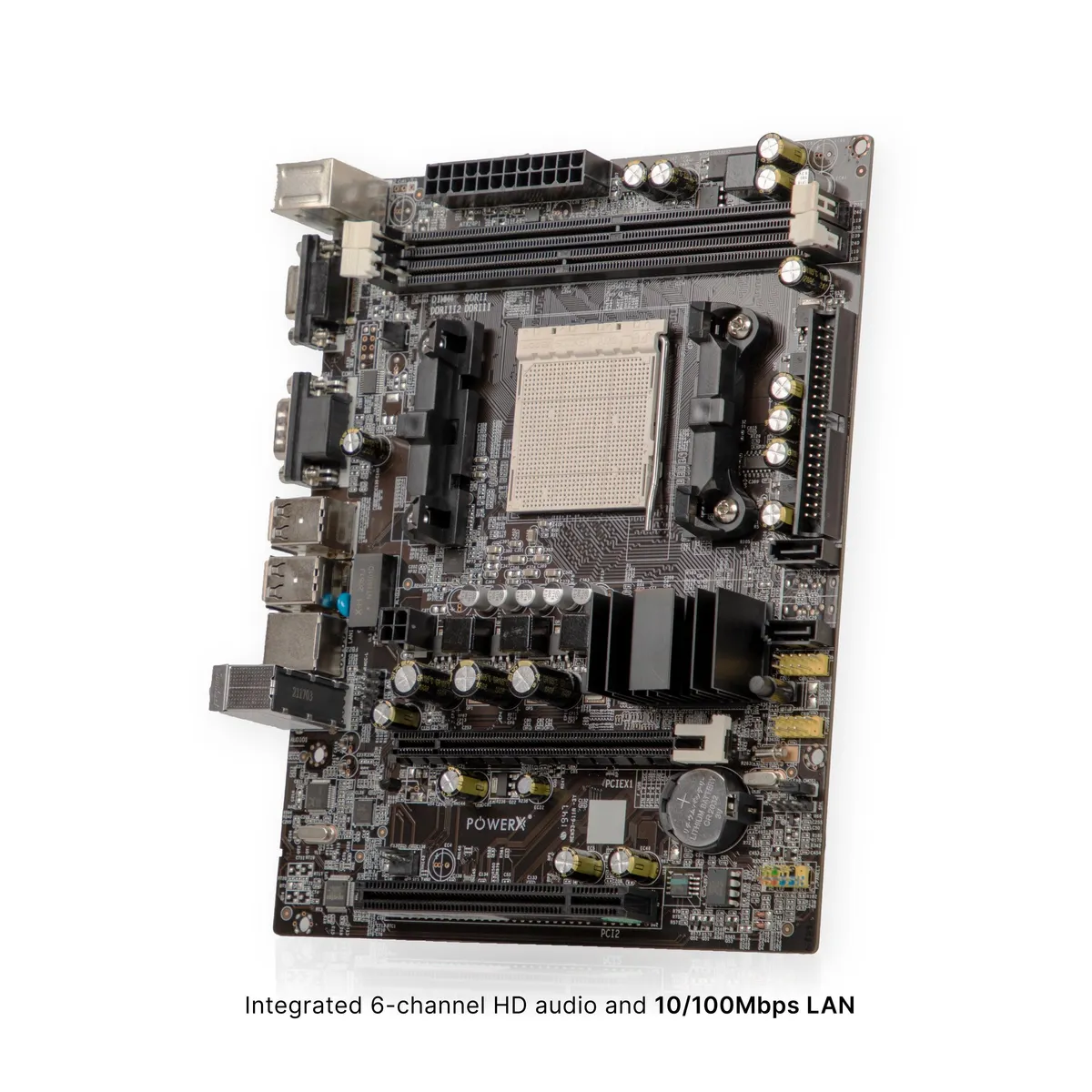

| LAN | 10/100 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20 + 40Pin |
| IDE Connector | 40Pin |
| COM Connector | x1 |
| 4-Pin Connector | x1 |
| OS Support | Windows / Linux / Chrome OS |

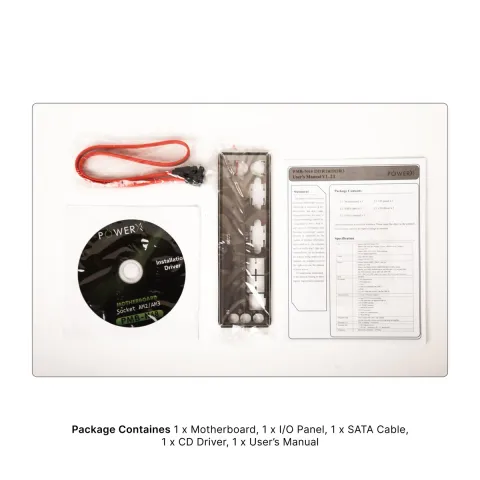

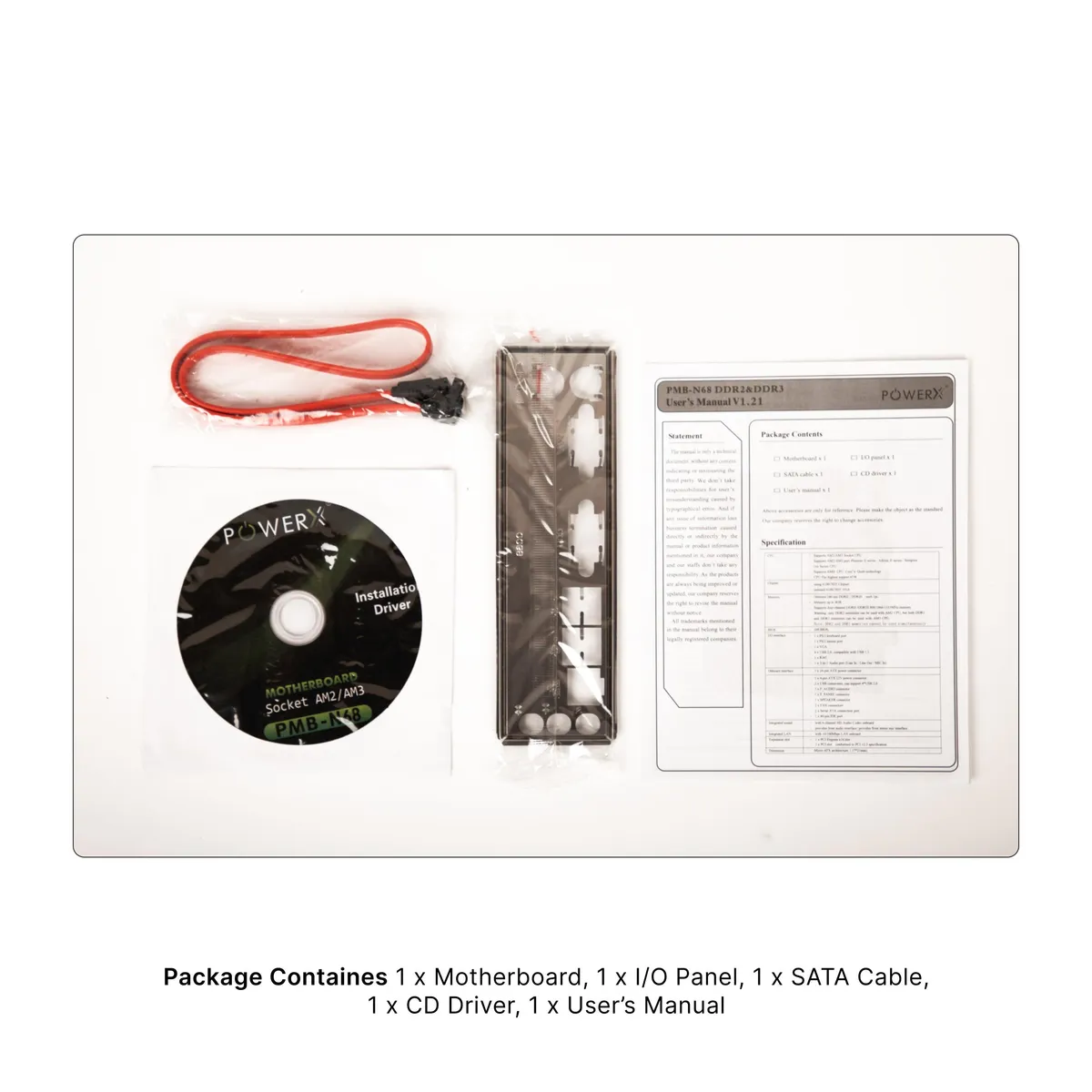

| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
