The PMBH410DDR4 Micro-ATX Motherboard is a solid and compact platform powered by the Intel H410 chipset, specifically intended to support 10th Gen Intel Core i3, i5, i7, and i9 processors with the LGA 1200 socket. The Micro-ATX form factor (18 × 22 cm) allows for up to 64GB of DDR4 RAM in dual-channel mode at speeds of up to 3200MHz, making it suitable for office PCs, home systems, and everyday computing demands.

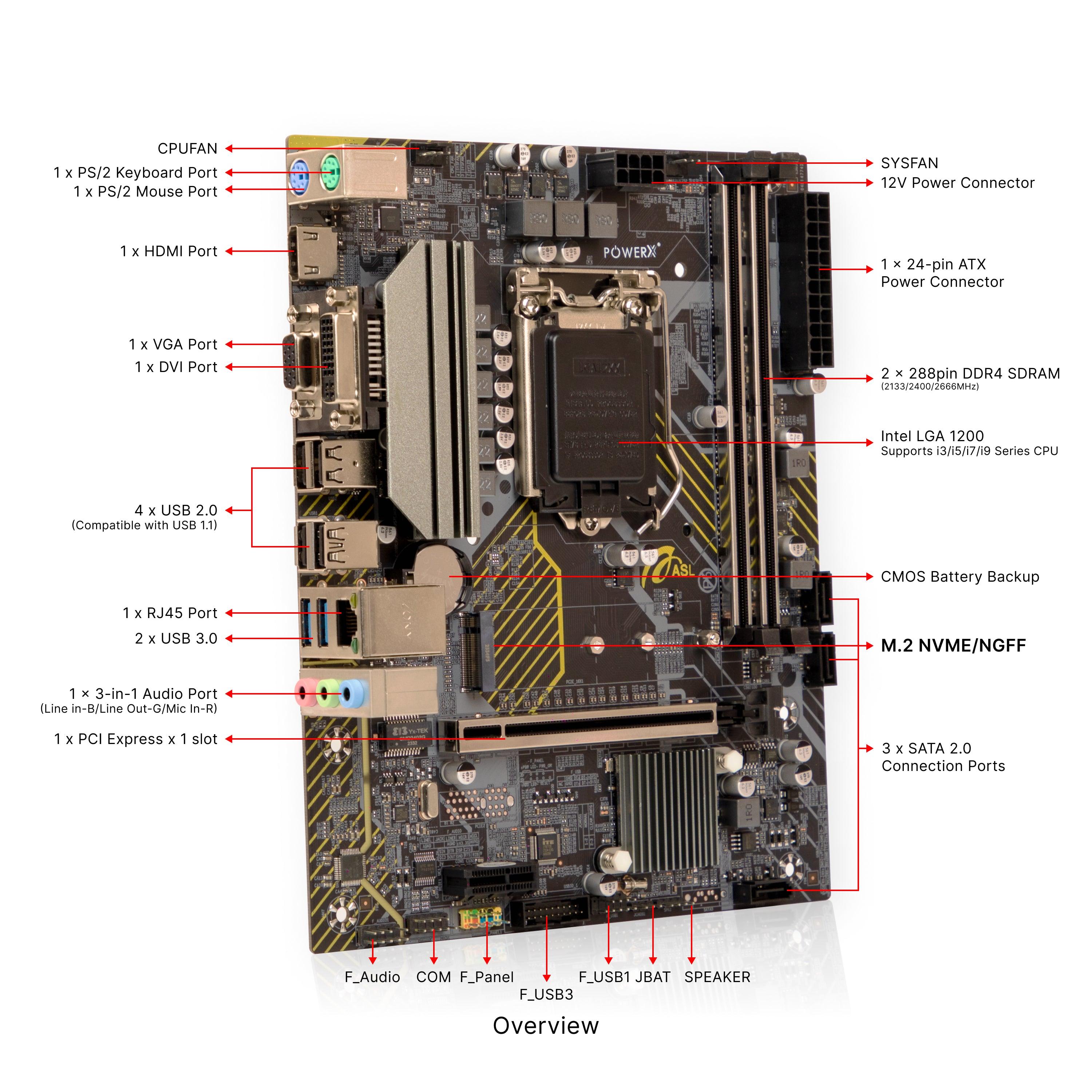

For expansion and connection, the motherboard has one PCIe x16 slot, one PCIe x1 slot, one M.2 slot with Wi-Fi compatibility, and three SATA ports for flexible storage. The back I/O panel has HDMI, DVI, VGA, PS/2, USB 3.0 and USB 2.0 connections, 3-in-1 audio, and Gigabit LAN (10/100/1000 Mbps) for efficient networking. Other features include an EFI BIOS, CPU and system fan headers, front USB and audio headers, a 20+4 pin power connector, and extensive OS compatibility with Windows, Linux, and Chrome OS. The package includes the motherboard, I/O panel, SATA cable, user manual, and driver disk to finish the build process.
| Model | PMBH410DDR4 |

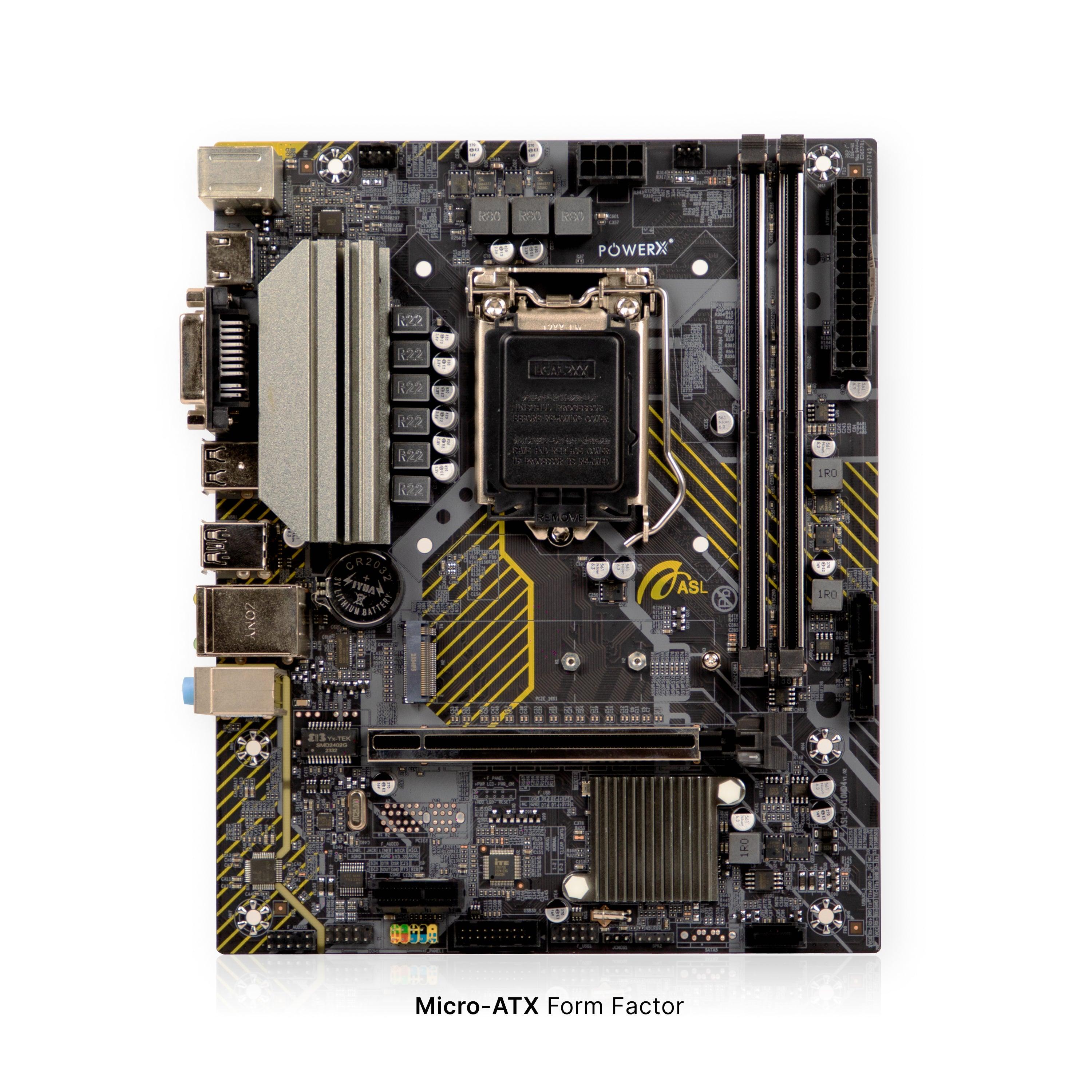

| Form Factor | Micro ATX (18 x 22cm) |
| Chipset | H410 |
| CPU Support | 10th |
| Socket | LGA 1200 |
| Processor Support | Inter Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR4 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 64GB (32GB x 2) |
| Memory Speed | 3200 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x1 |
| M.2 NVMe Slots | x1 |
| M.2 Wi-Fi Slot | x1 |
| SATA Ports | x3 |

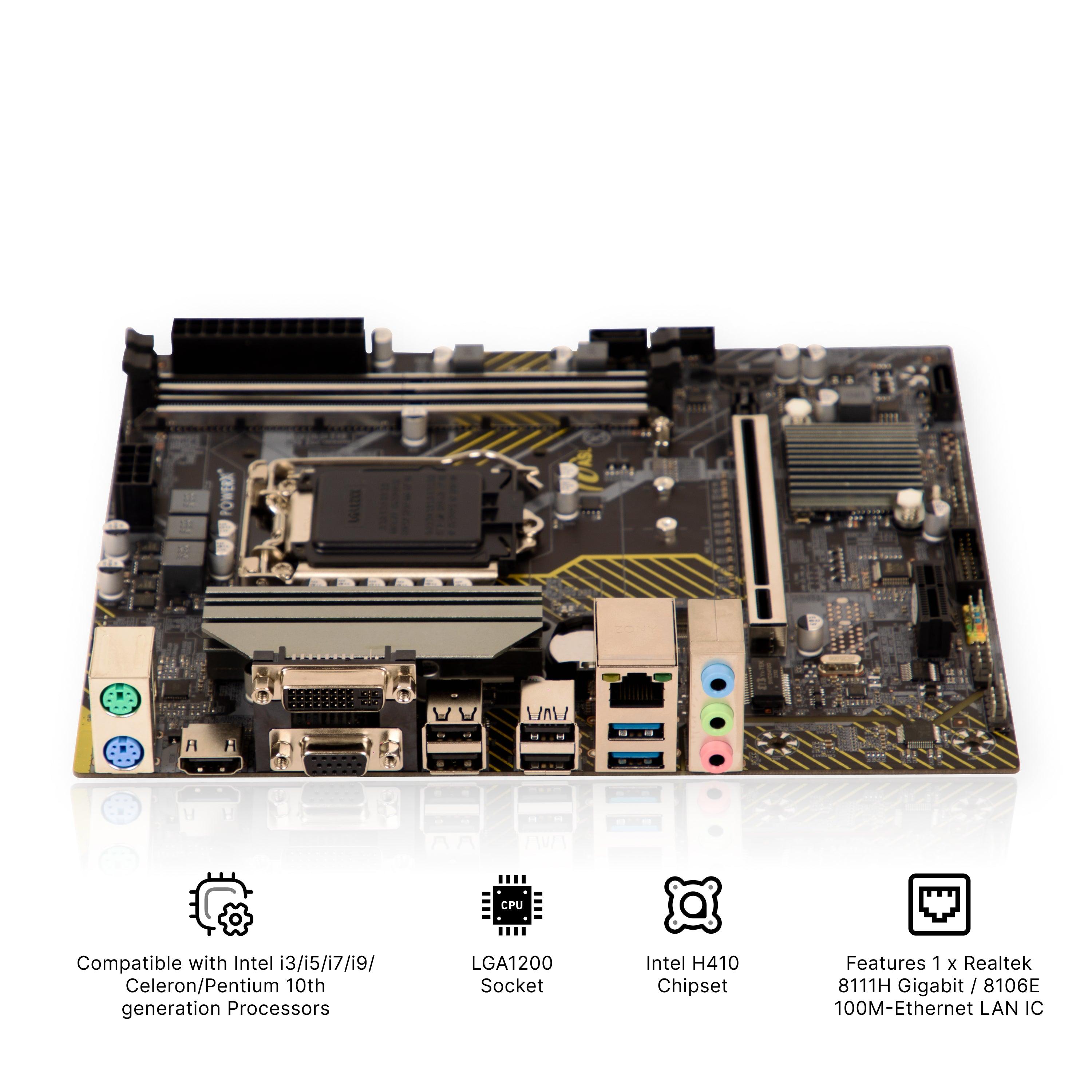

| I/O Panel | 1 x PS2 | 1 x HDMI | 1 x DVI | 1 x VGA | 2 x USB3.0 | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100/1000Mbps |
| Expansion Slots | PCIe x 16 | PCIe x 1 | M.2 WiFi slot |
| HDMI Ports | x1 |
| Display Port | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 4 |
| USB Front Header | Yes |

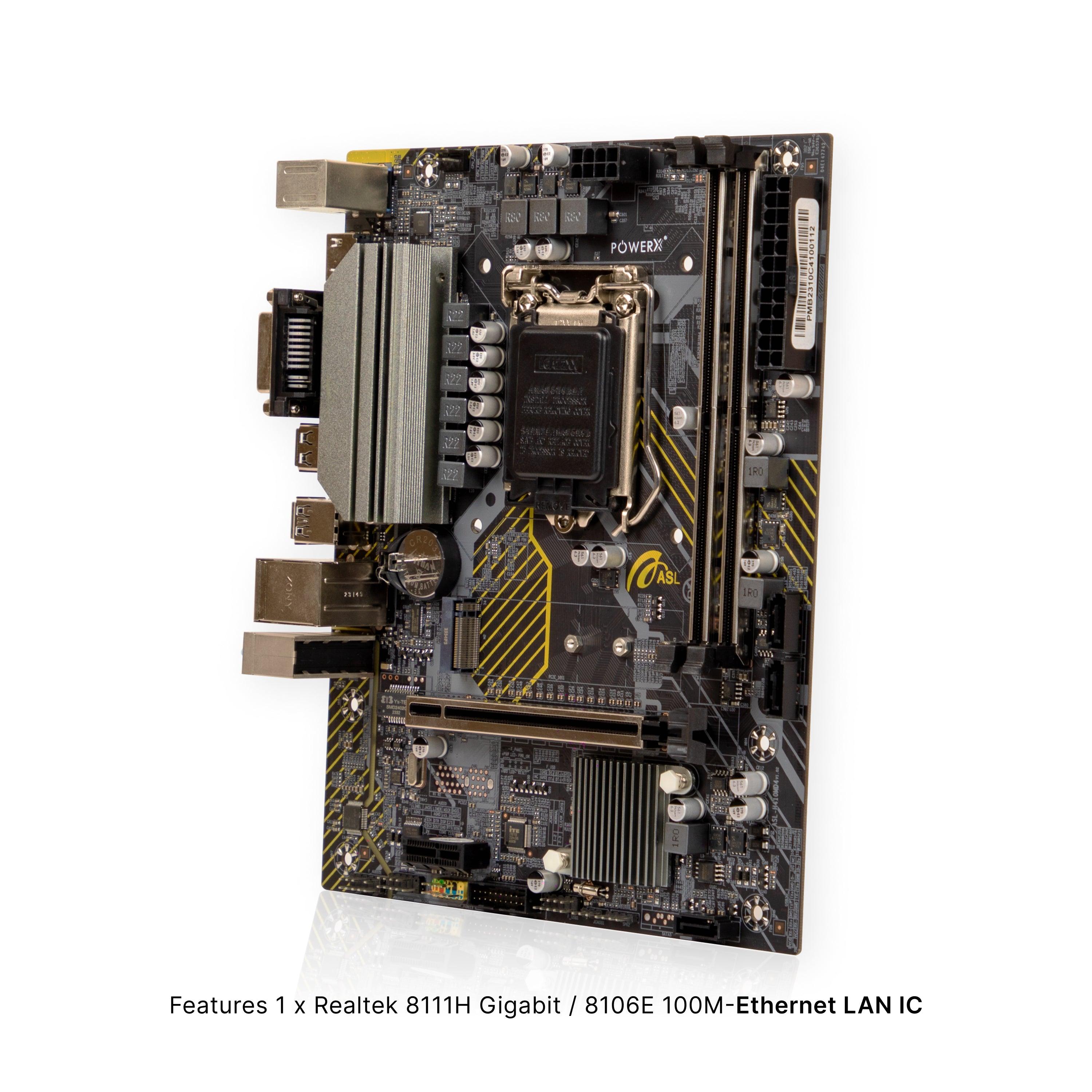

| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |

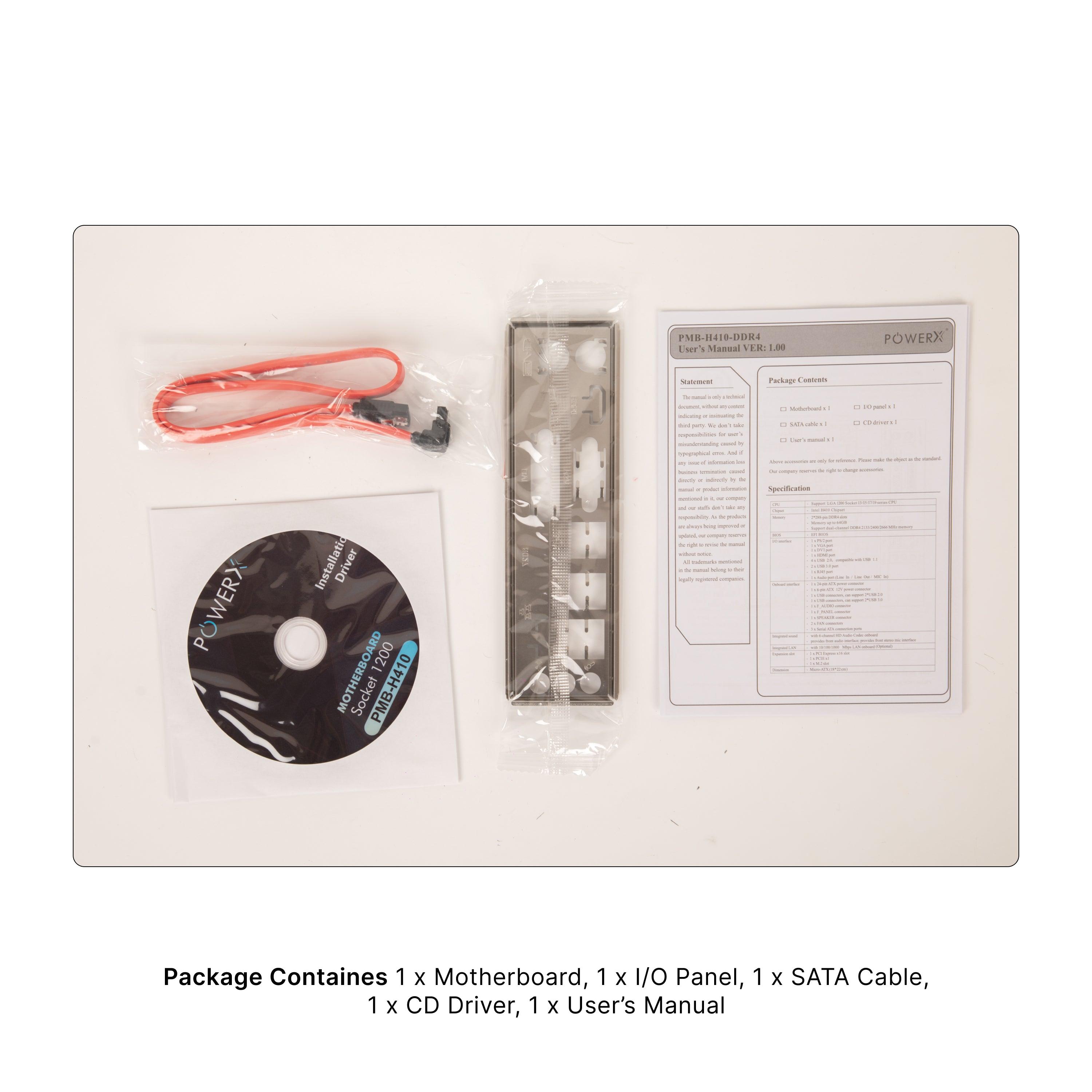

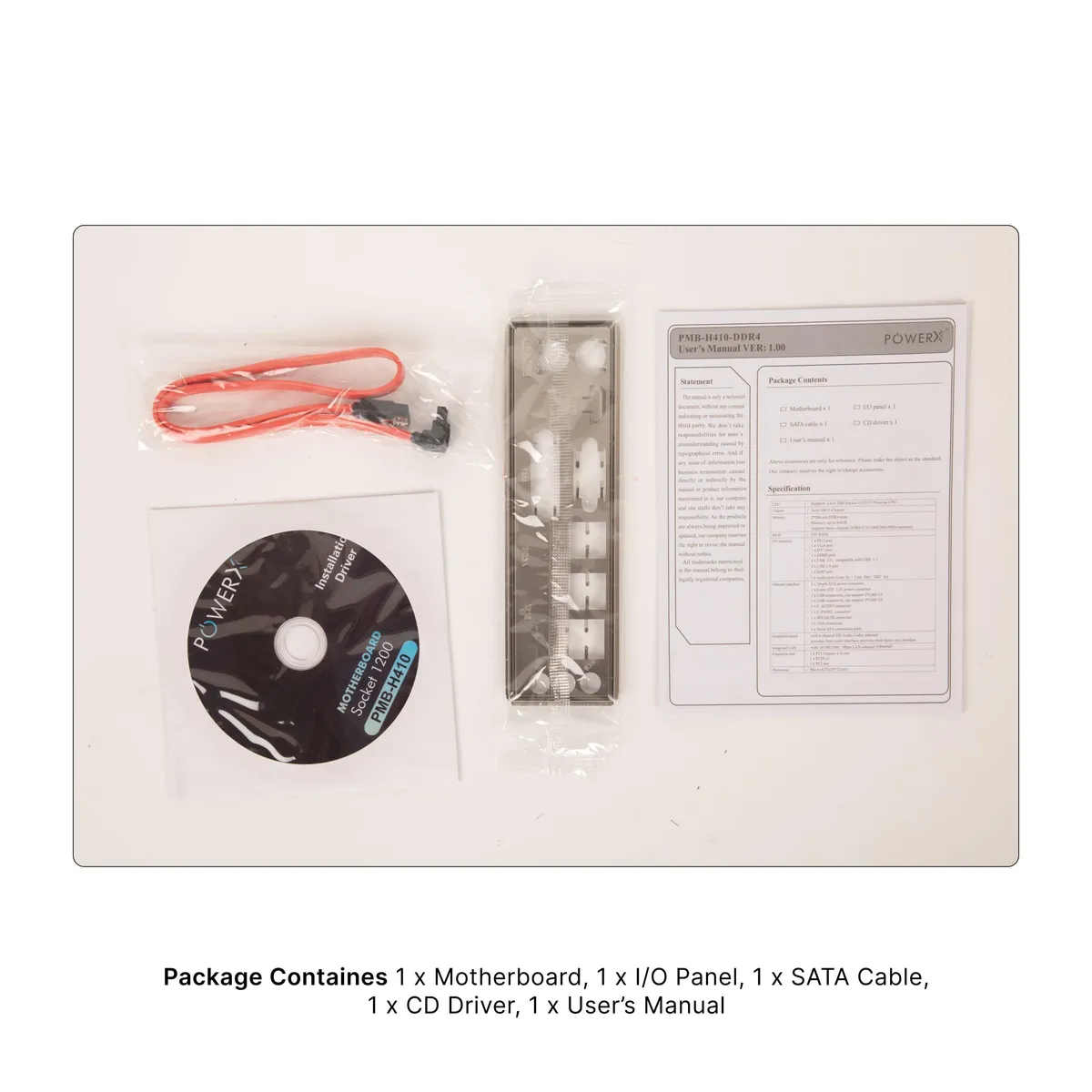

| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
