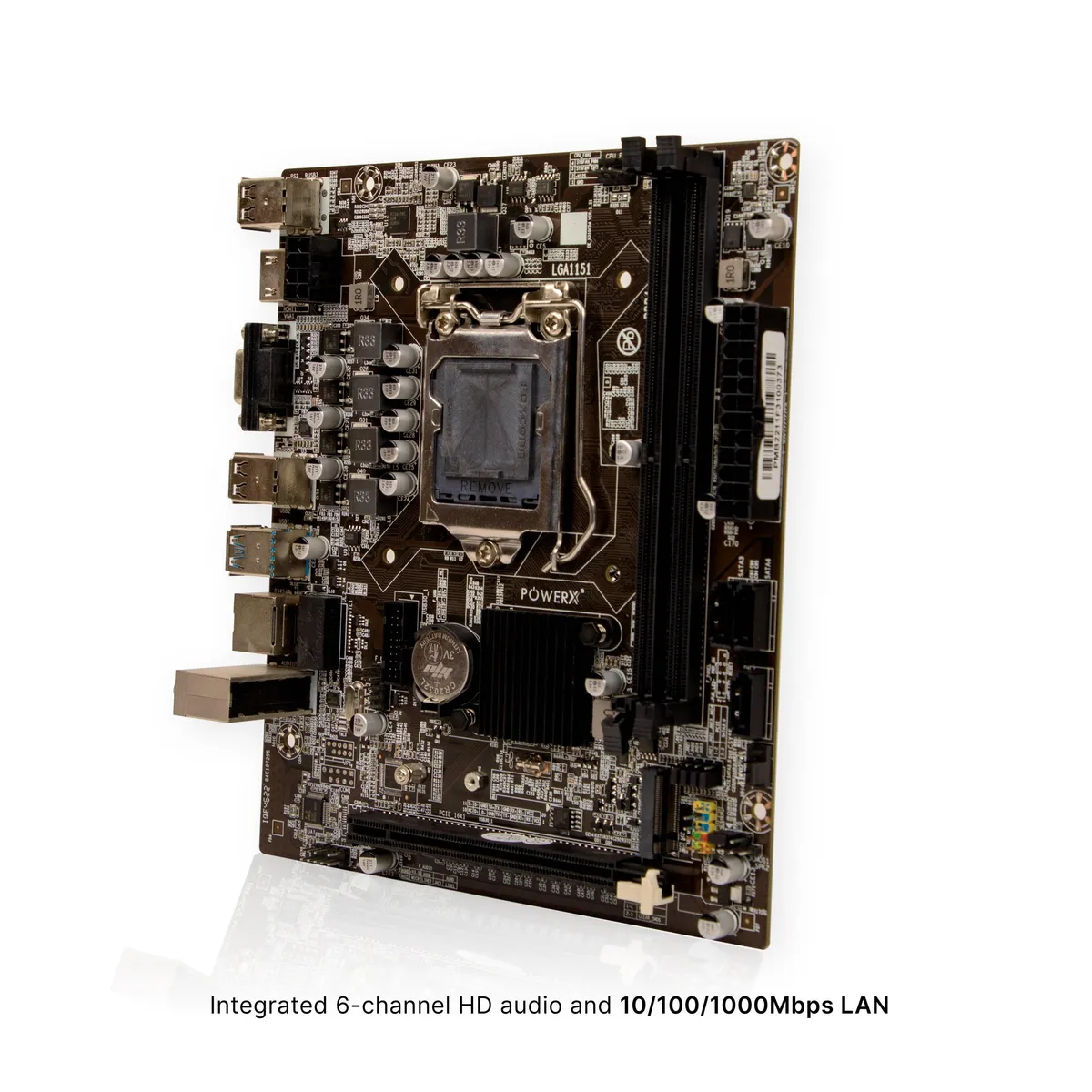

The PMBH310DDR4 Micro-ATX Motherboard is a compact and dependable option for 8th and 9th generation Intel Core i3, i5, i7, and i9 CPUs with the LGA 1151 socket. Built on the H310C/B250 chipset, it supports DDR4 memory with two DIMM slots, allowing for up to 32GB of RAM in dual-channel mode at speeds of up to 2666MHz. The space-saving Micro-ATX form factor (17 × 19.6 cm) makes it suitable for home, office, and budget desktop systems.
This motherboard provides broad connectivity, including 1 PCIe x16 slot, 1 M.2 NVMe/NGFF slot, and 3 SATA ports for quick and flexible storage expansion. The back I/O panel features HDMI and VGA display outputs, USB 3.0 and USB 2.0 ports, 3-in-1 audio, and Gigabit LAN (10/100/1000 Mbps) for reliable networking. Other features include an EFI BIOS, CPU and system fan headers, front USB and audio connectivity, a 20+4 pin power connector, and OS compatibility with Windows, Linux, and Chrome OS. The package includes the motherboard, I/O panel, SATA cable, driver disk, and user manual for simple installation.
| Specification | Details |
| Model | PMBH310DDR4 |

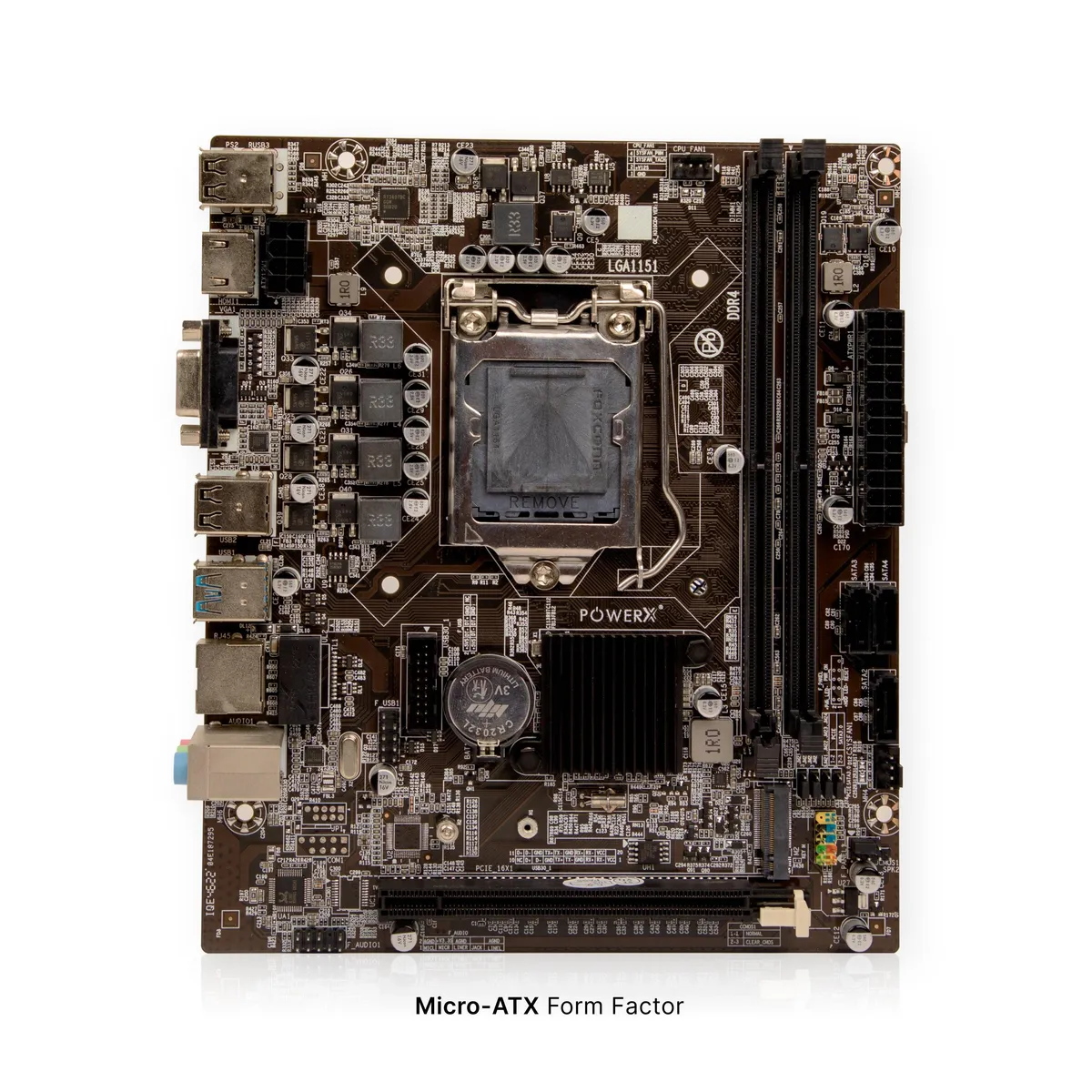

| Form Factor | Micro ATX (17 x 19.6cm) |
| Chipset | H310C / B250 |
| CPU Support | 8th and 9th Gen |
| Socket | LGA 1151 |
| Processor Support | Inter Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR4 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 32GB (16GB x 2) |
| Memory Speed | 2666 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x1 |
| M.2 NVMe Slots | x1 |
| SATA Ports | x3 |

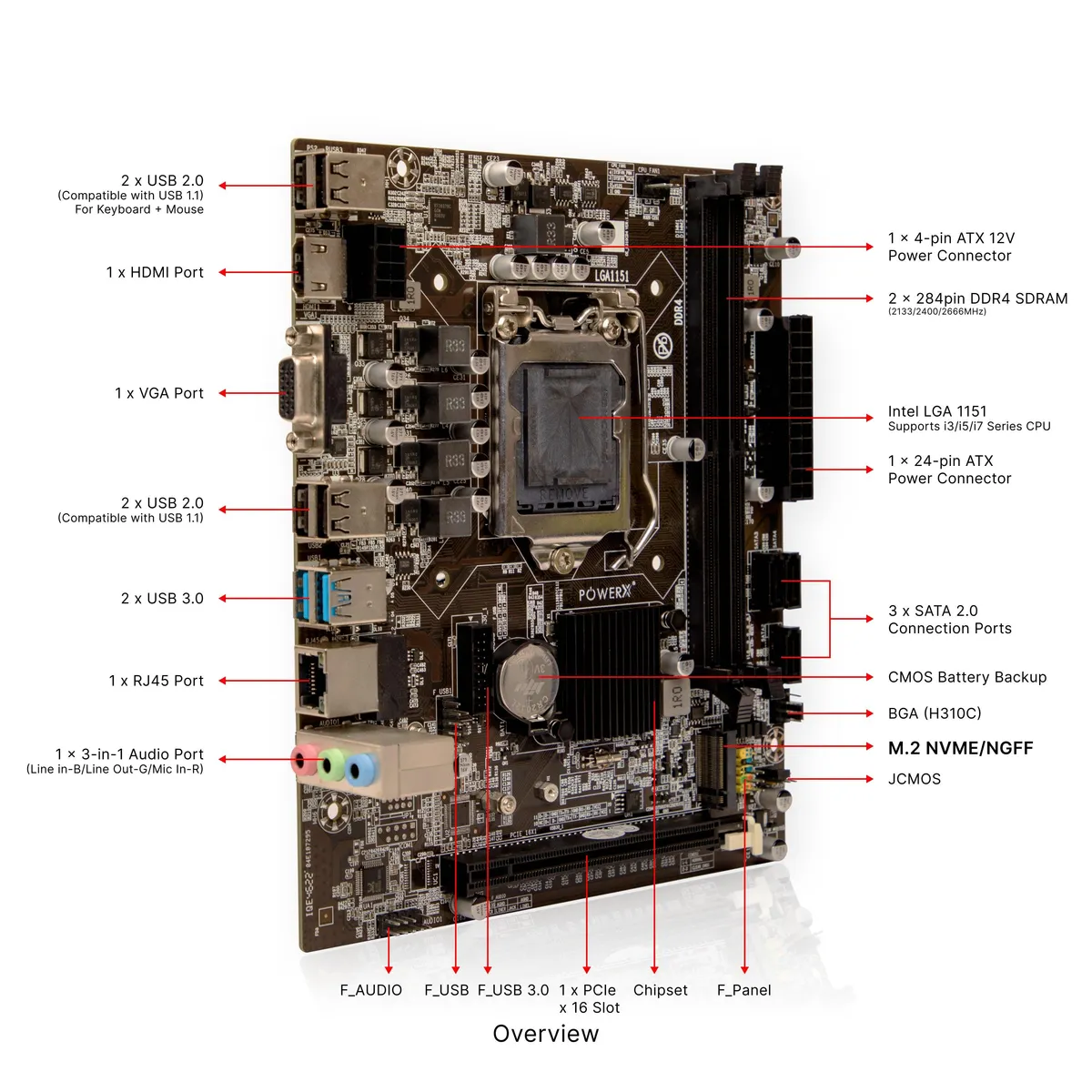

| I/O Panel | 1 x HDMI | 1 x VGA | 2 x USB3.0 | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100/1000Mbps |
| Expansion Slots | PCIe x 16 | M.2 NVMe/NGFF |
| HDMI Ports | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 4 |
| USB Front Header | Yes |
| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |

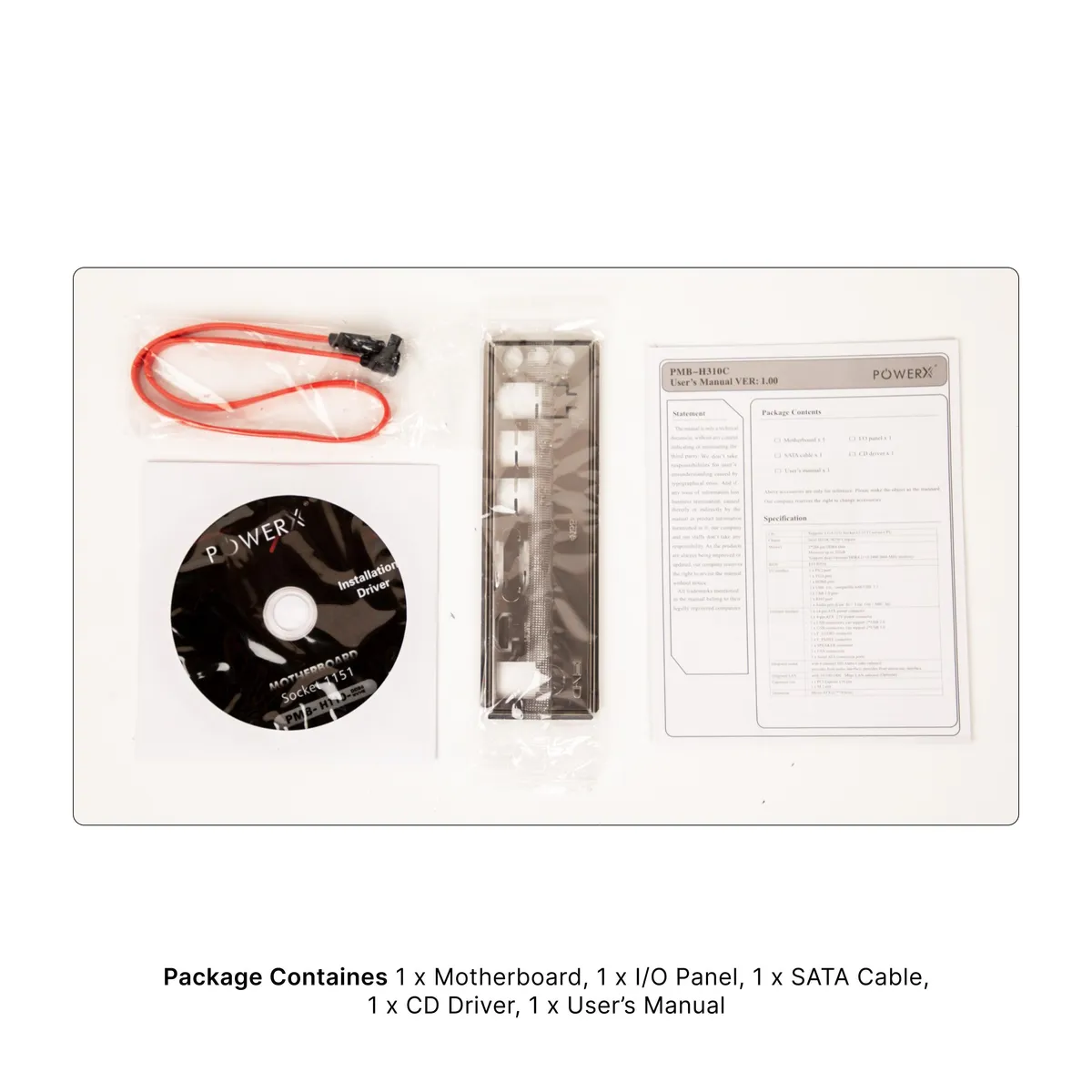

| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
| Motherboard Driver | Click Here |
