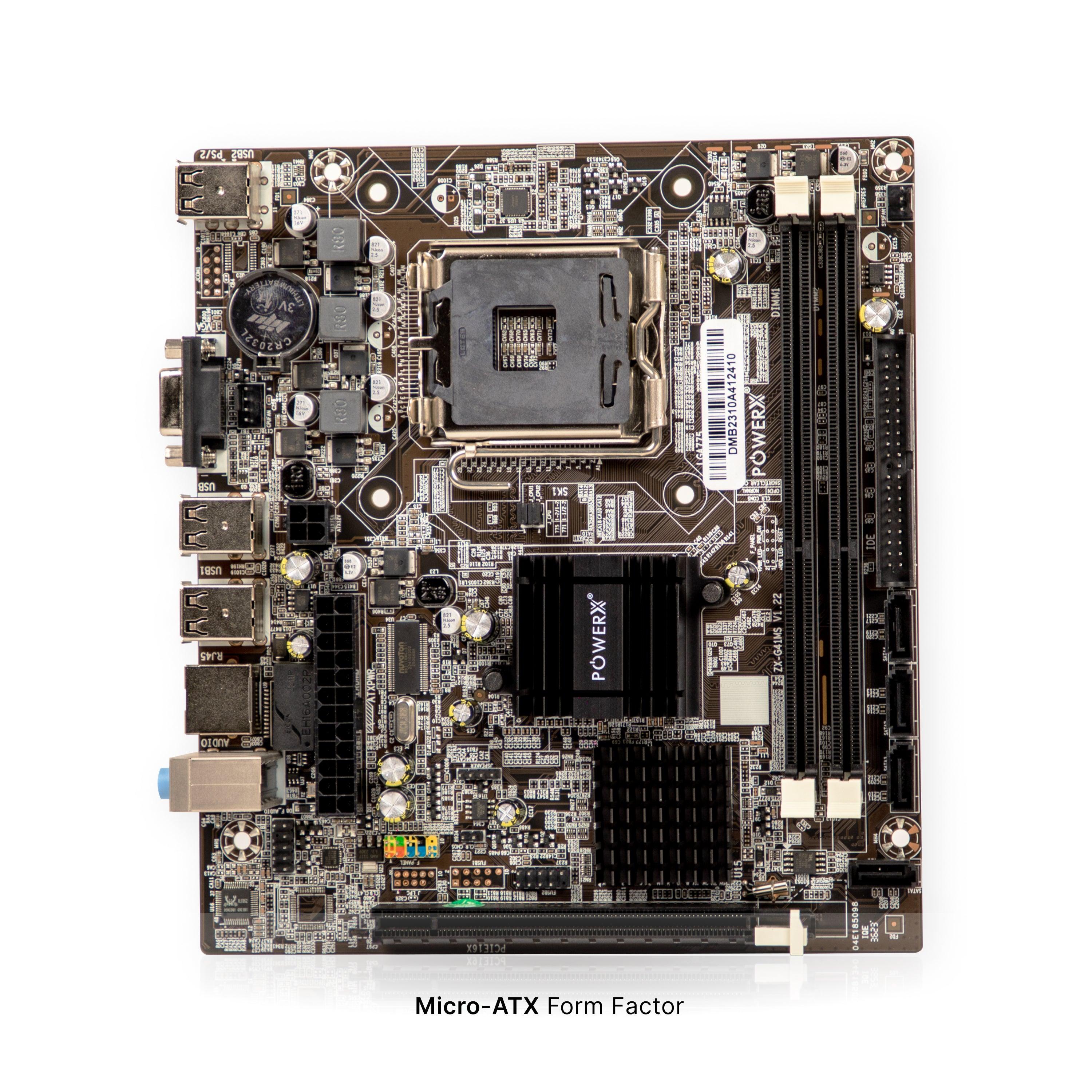

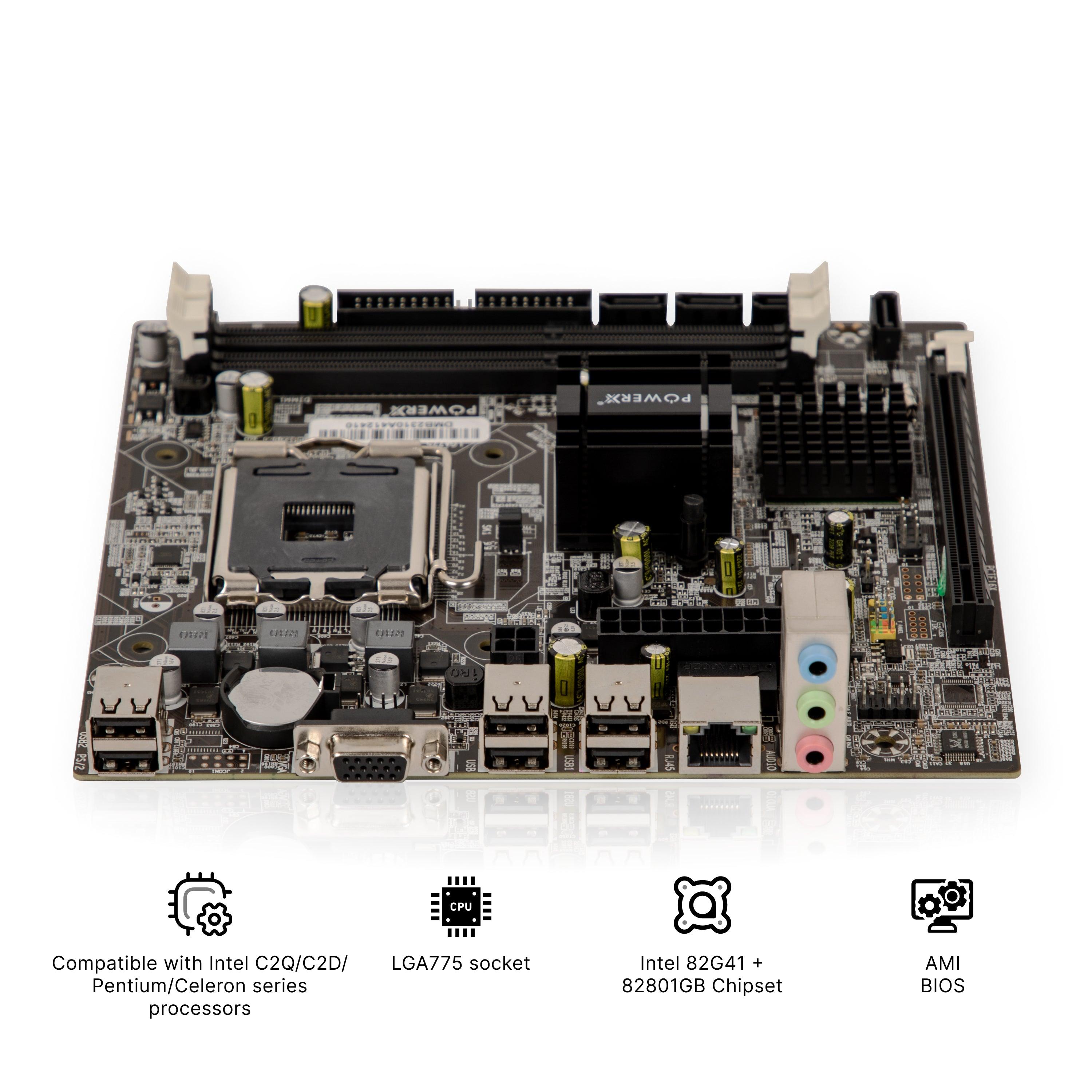

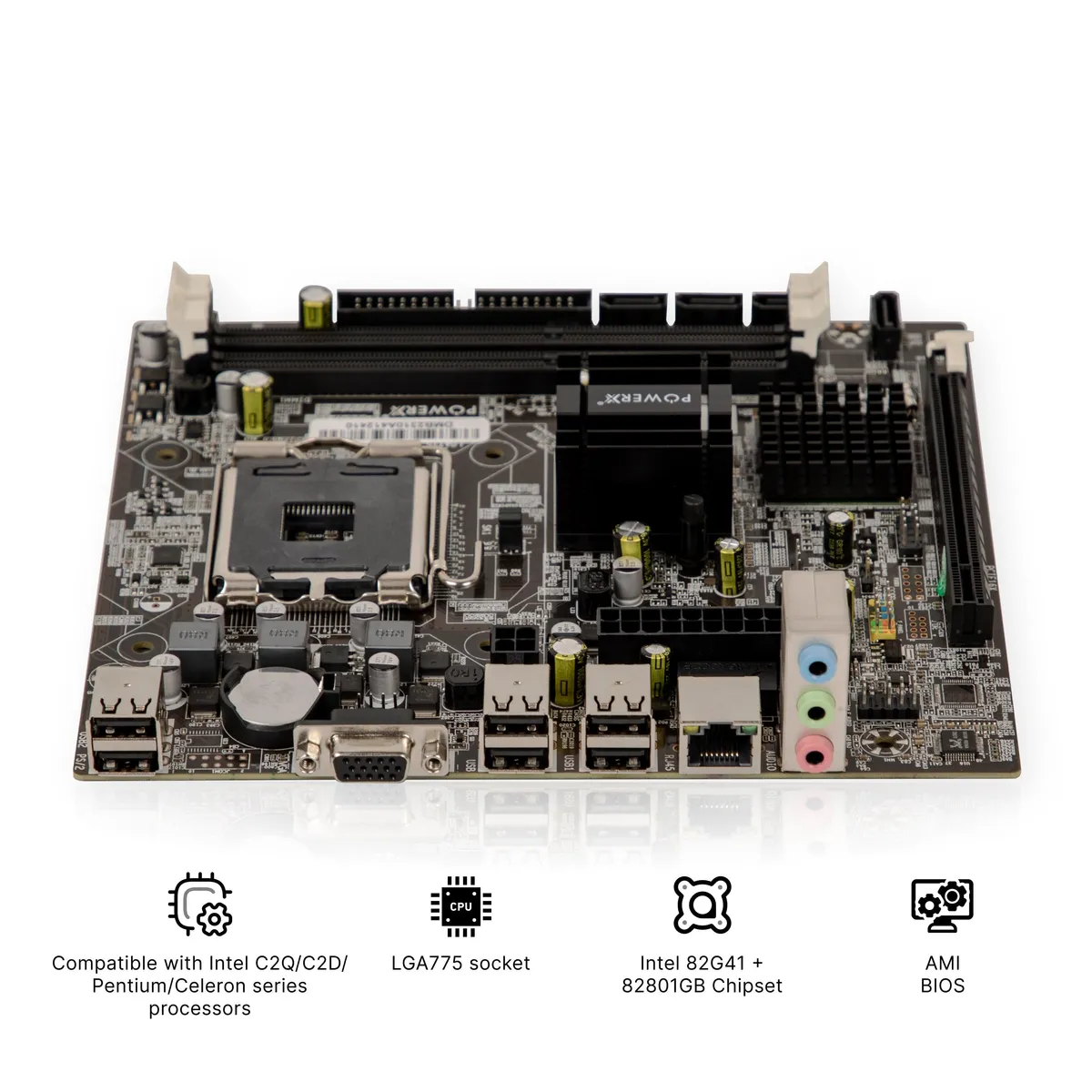

The PMBG41DDR3 Micro-ATX Motherboard (17.2 × 23.5 cm) is a solid solution for legacy and cheap PC builds, powered by Intel's 82G41 + 82801GB chipset and LGA 775 socket. It can run Intel Core 2 Quad, Core 2 Duo, Pentium, and Celeron CPUs, making it perfect for office, educational, and basic home computing. With DDR3 memory compatibility, 2 DIMM slots, and a maximum capacity of 8GB (4GB × 2) @ 1066 MHz with dual-channel support, it provides accurate daily performance.

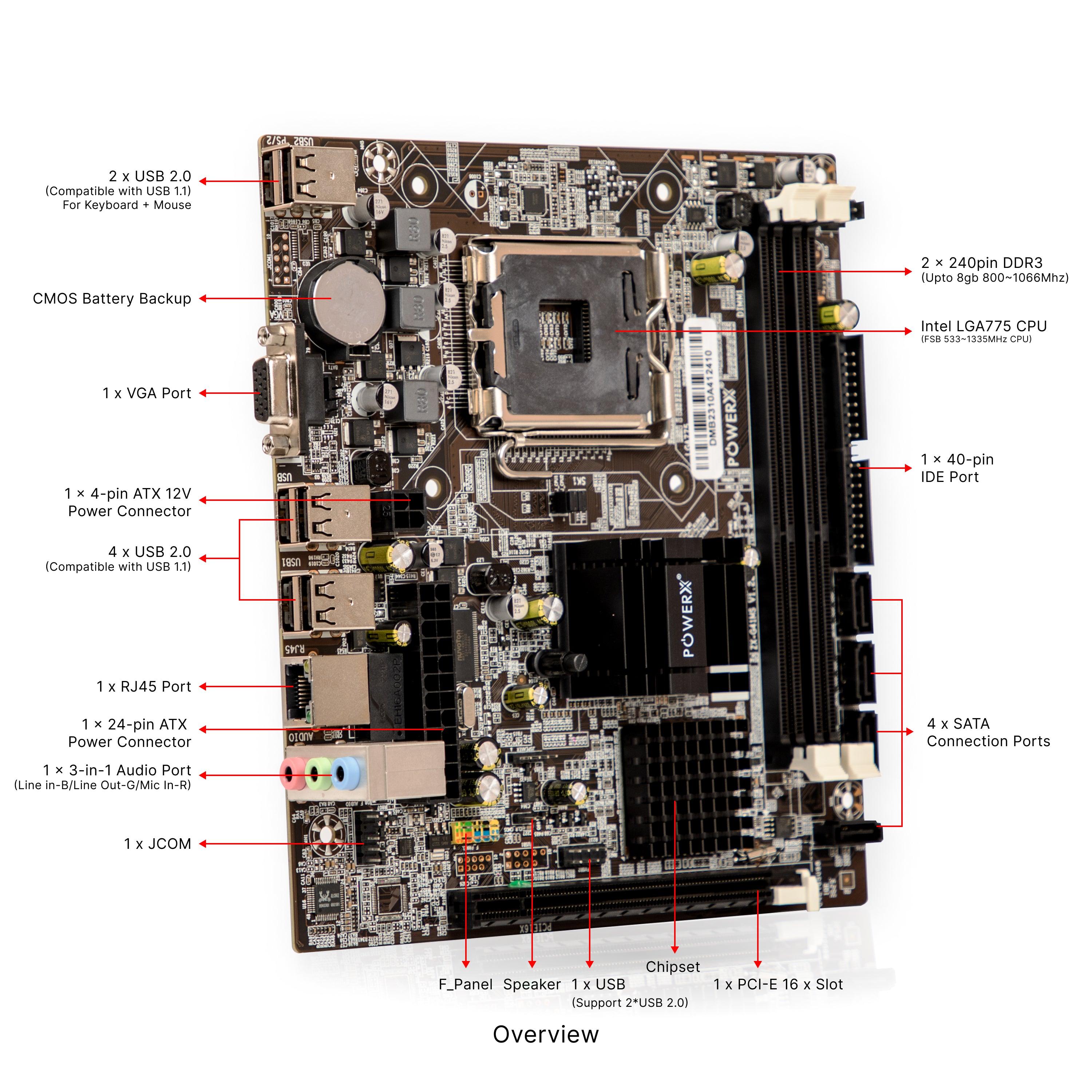

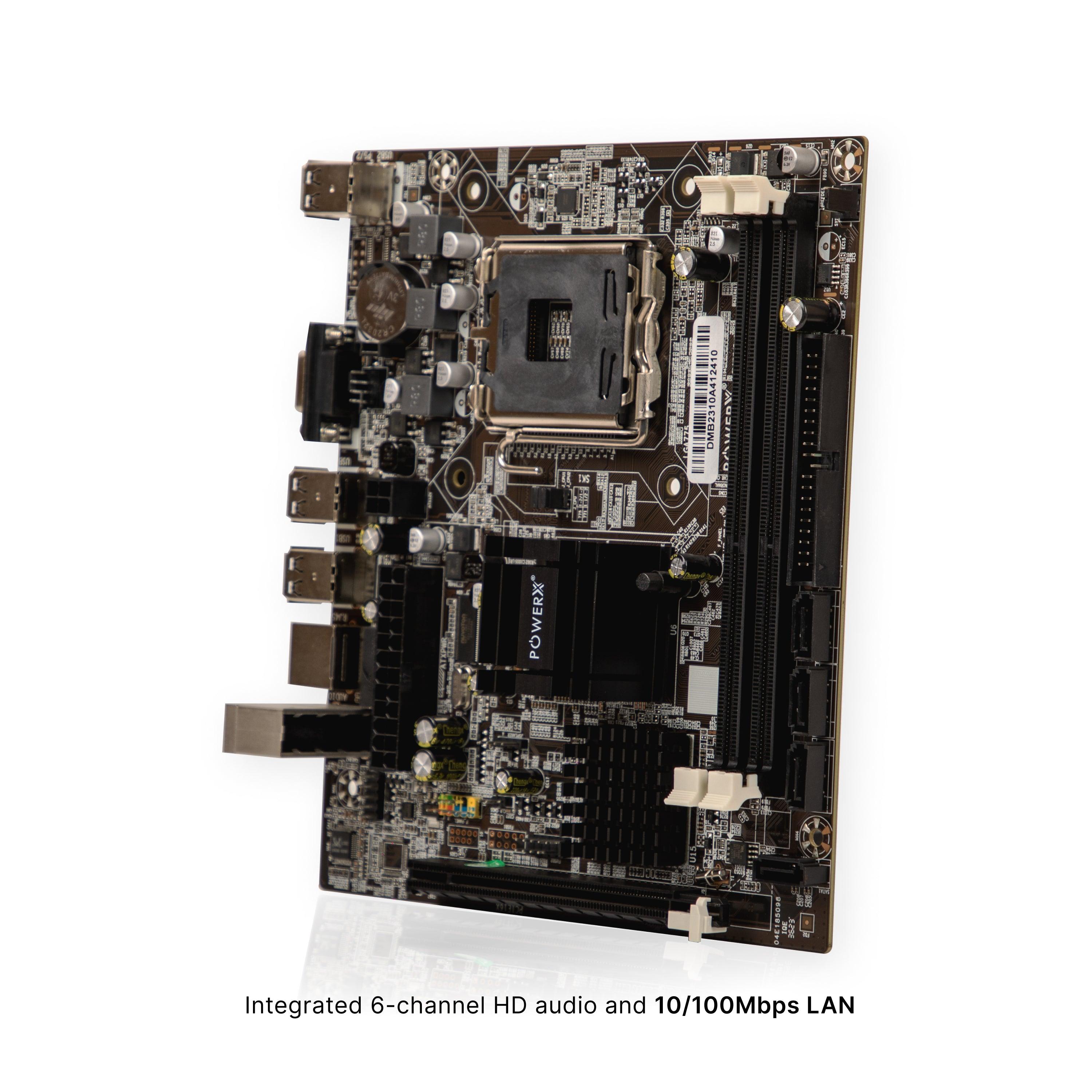

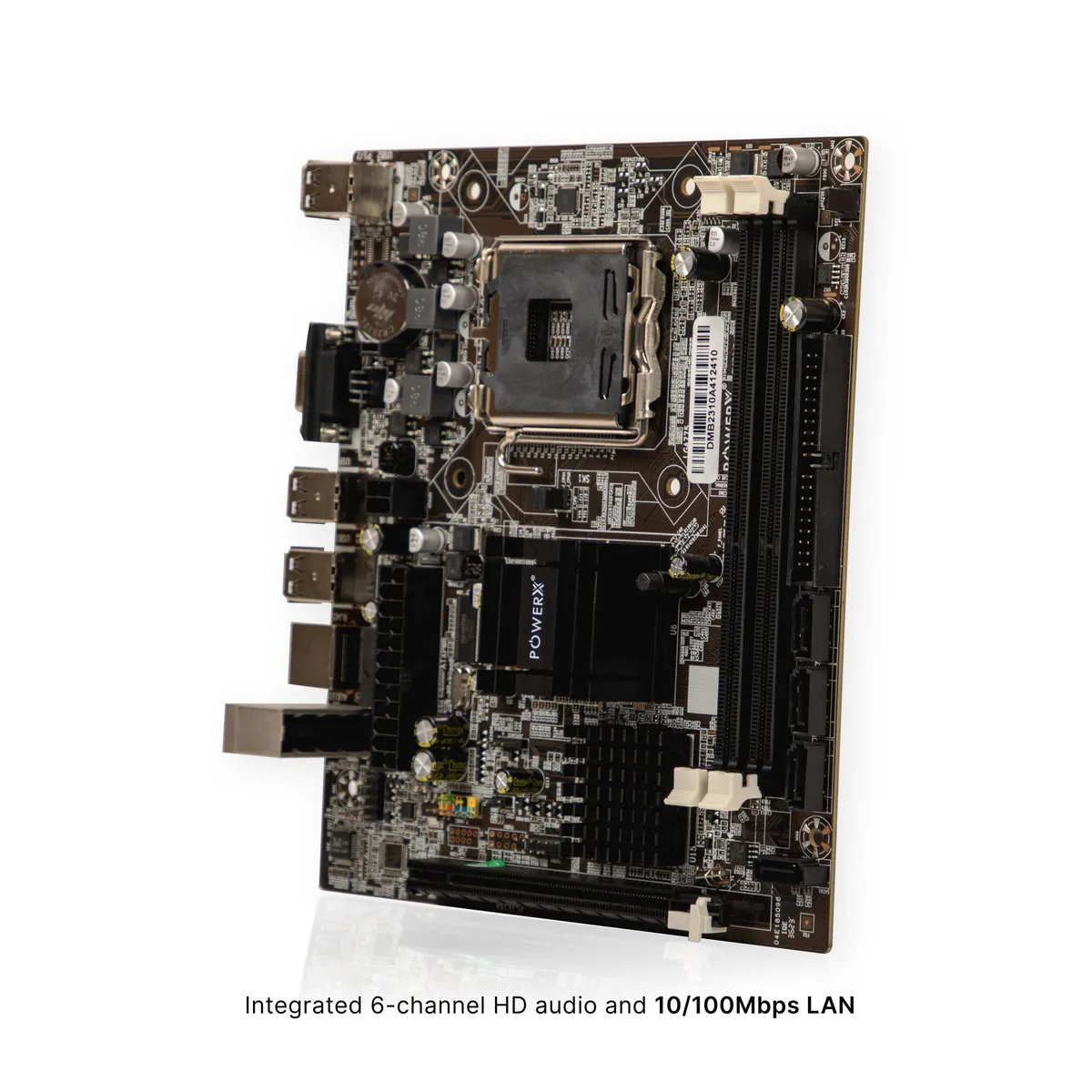

The motherboard includes integrated Intel GMA X4500 graphics, one PCIe x16 expansion slot, four SATA ports, and a 40-pin IDE connector for versatile storage options. The rear I/O features VGA output, 6x USB 2.0 ports, 3-in-1 audio jacks, and 10/100 Mbps LAN connectivity. Additional features such as AMI BIOS, front USB and audio connectors, CPU and system fan headers, and broad Windows, Linux, and Chrome OS support provide accessibility and compatibility. The package contains the motherboard, I/O panel, SATA cable, driver disk, and user manual.
| Specification | Details |
| Model | PMBG41DDR3 |
| Form Factor | Micro ATX (17.2 x 23.5cm) |
| Chipset | Intel 82G41 + 82801GB |
| CPU Support | Core 2 Quad / Core 2 Duo / Pentium / Celeron Series |
| Socket | LGA 775 |
| Processor Support | Intel |
| BIOS | AMI |
| Memory Type | DDR3 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 8GB (4GB x 2) |
| Memory Speed | 1066MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x1 |
| Integrated Graphics | GMAX 4500 |
| SATA Ports | x4 |
| JCOM Connector | x1 |
| I/O Panel | 1 x VGA | 6 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100Mbps |
| Expansion Slots | PCIe x 16 |
| USB Rear Ports | USB 2.0 x 6 |
| USB Front Header | Yes |
| LAN | 10/100 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 1 x 40-Pin IDE Port |
| OS Support | Windows / Linux / Chrome OS |

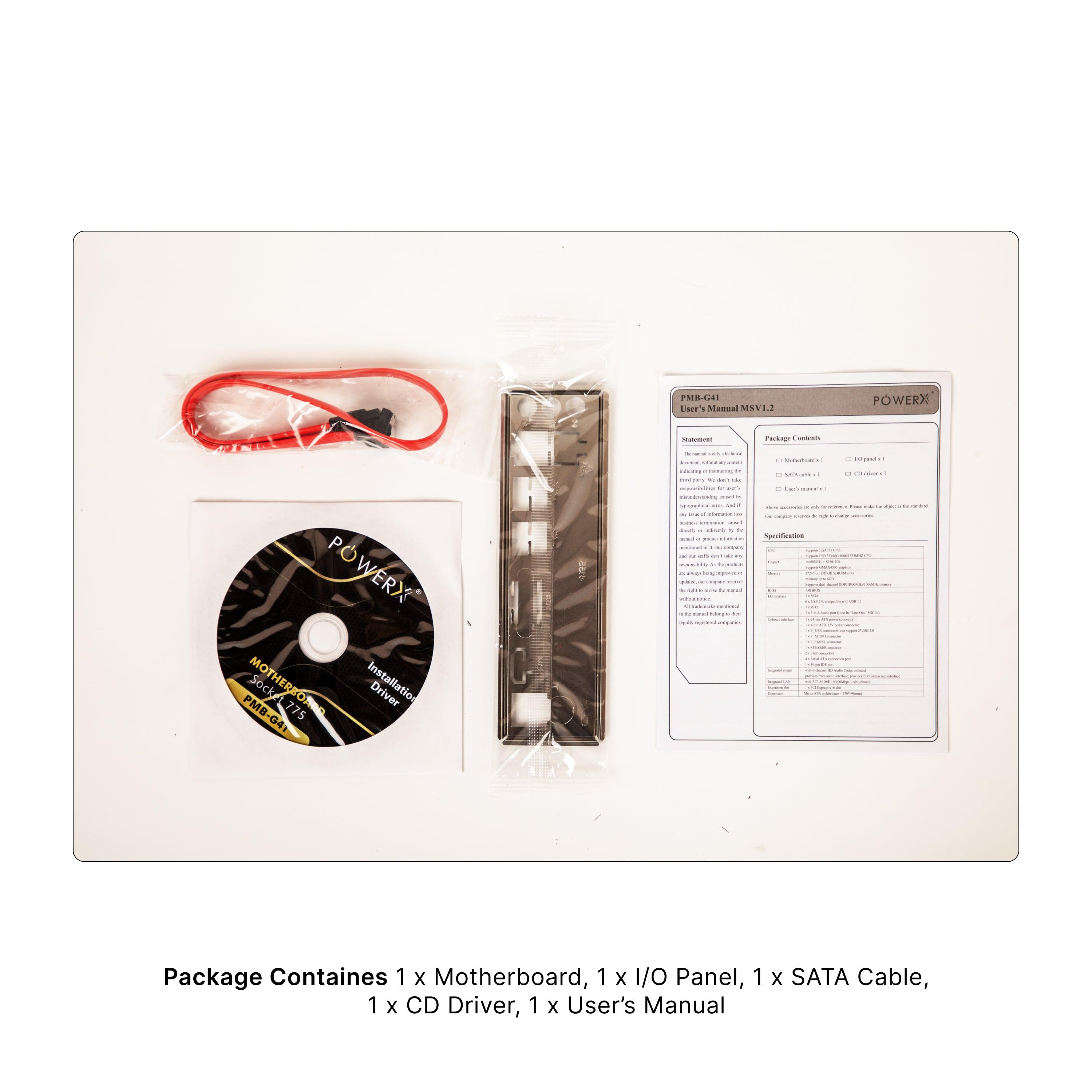

| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
