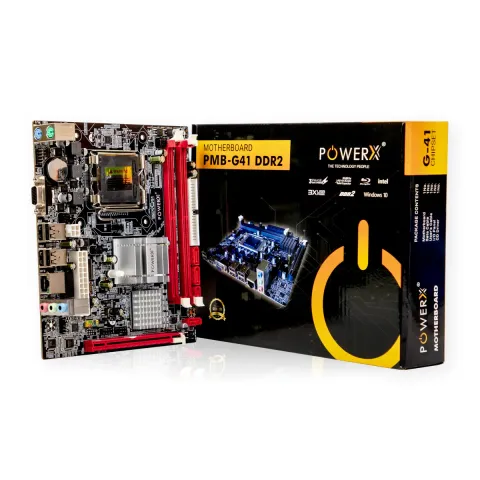

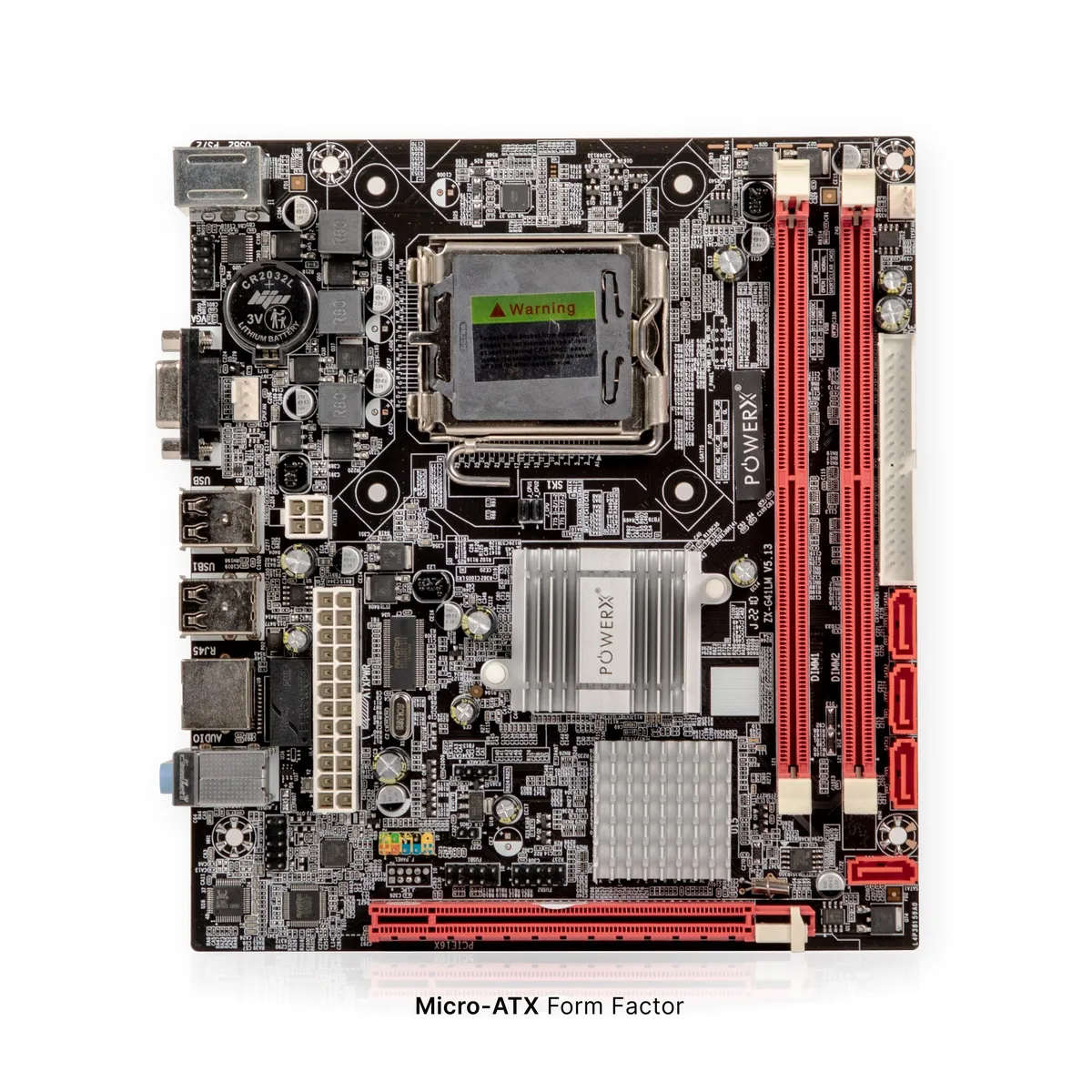

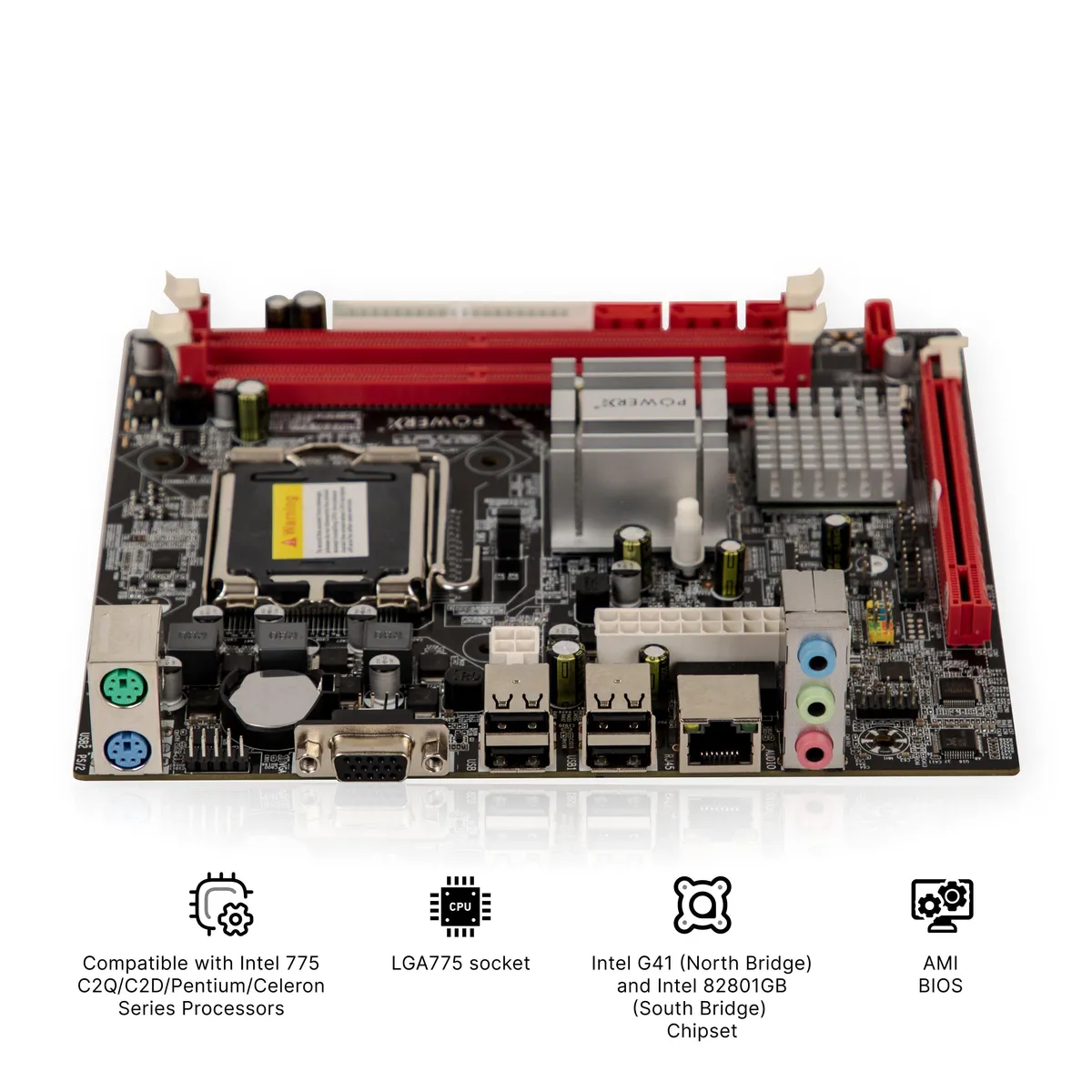

The PMBG41DDR2 Micro-ATX Motherboard (17.2 × 23.5 cm) is a suitable option for both classic and budget PC setups. It supports Intel Core 2 Quad, Core 2 Duo, Pentium, and Celeron CPUs and is powered by the Intel G41 chipset with the 82801GB southbridge and the LGA 775 socket. With DDR2 memory support, 2 DIMM slots, and up to 8GB RAM (4GB × 2) @ 800 MHz with dual-channel support, it offers steady performance for daily workplace, educational, and home computing demands.

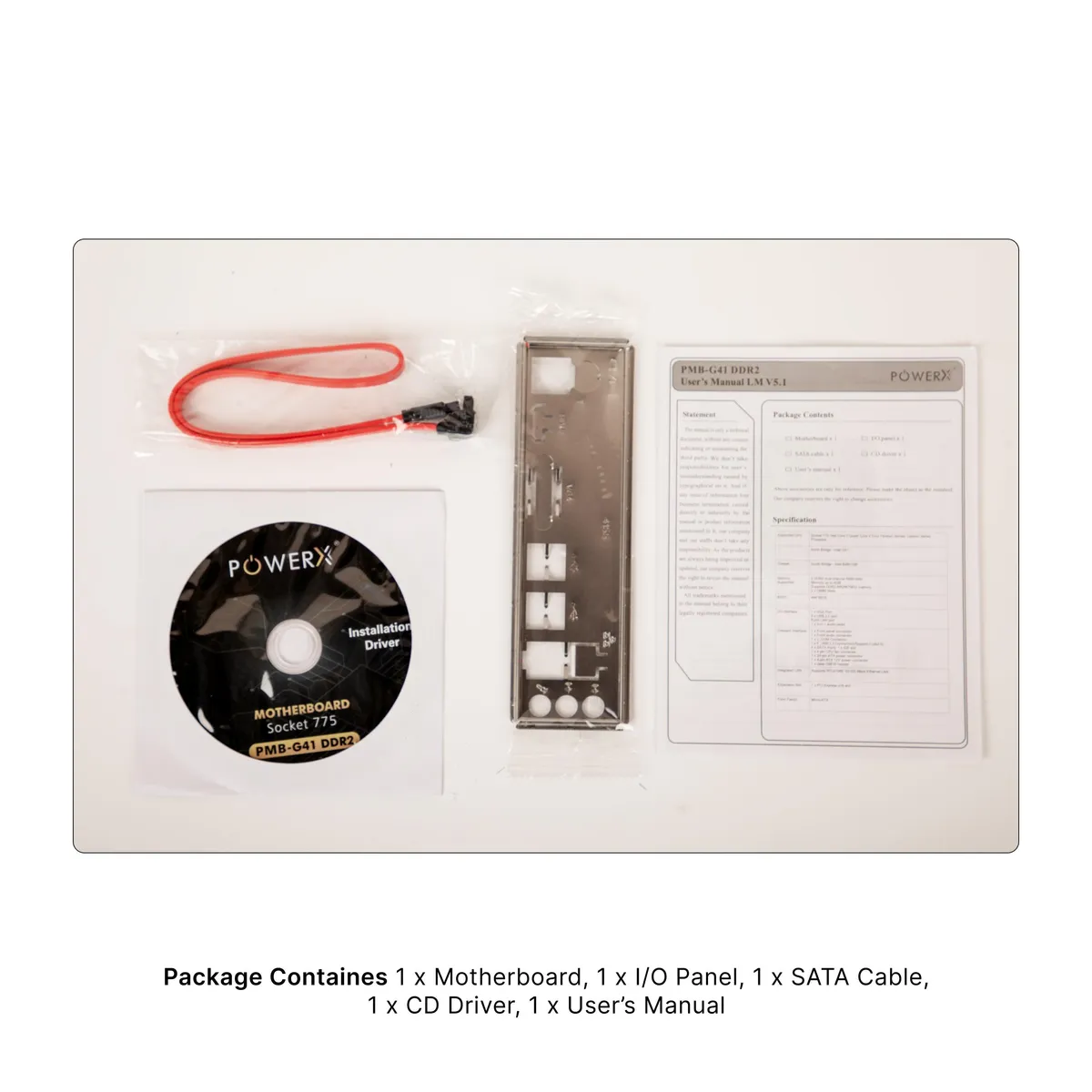

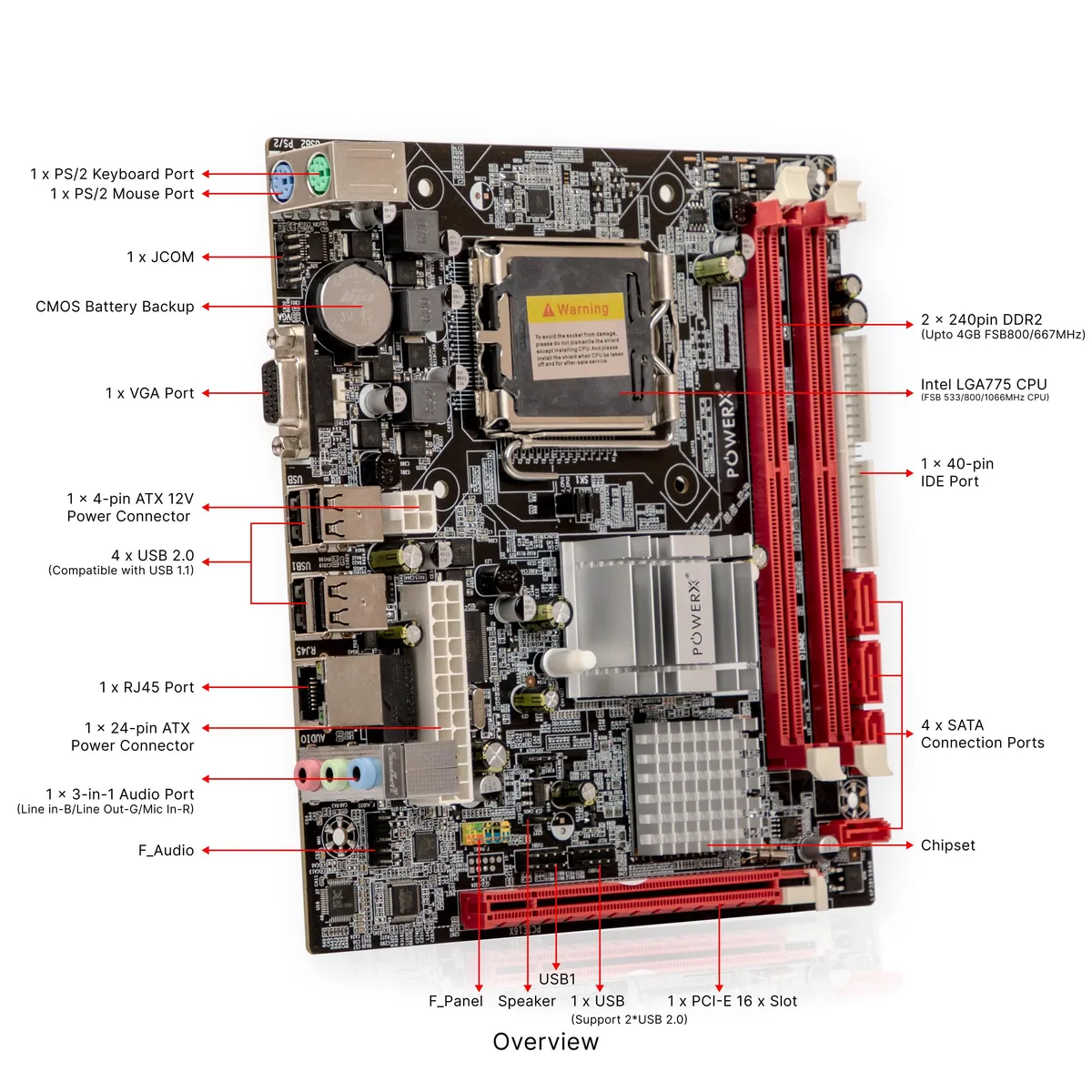

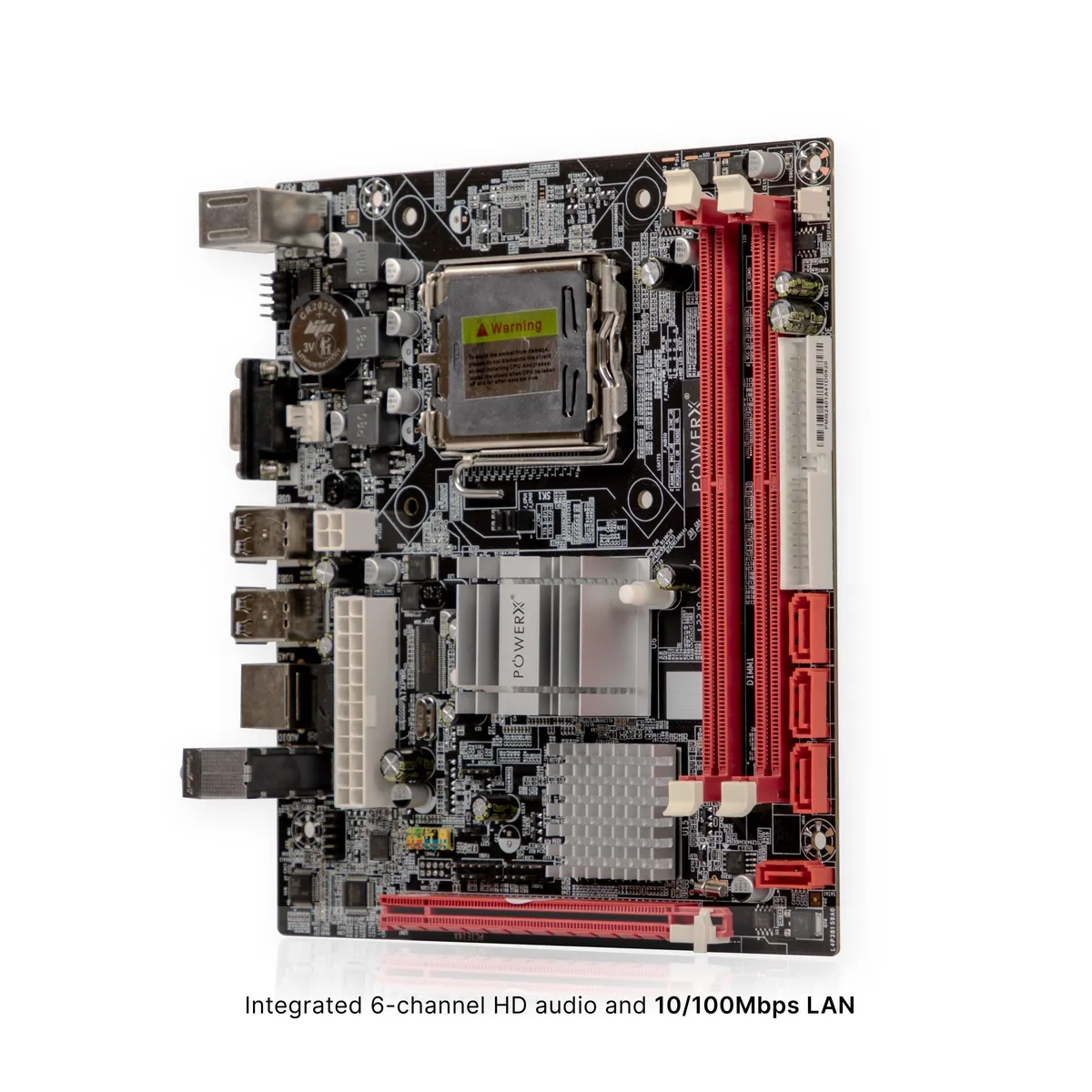

This motherboard has one PCIe x16 expansion slot, four SATA ports, and a 40-pin IDE connector for versatile storage options. Rear I/O includes VGA output, 4x USB 2.0 ports, PS/2, 3-in-1 audio jacks, and 10/100 Mbps LAN. AMI BIOS, front USB and audio headers, CPU and system fan headers, and extensive Windows, Linux, and Chrome OS support are among the other advantages. The package includes the motherboard, I/O panel, SATA cable, driver disc, and user manual, making it suitable for building or replacing a trustworthy system.
| Specification |
Details |
| Model |
PMBG41DDR2 |
| Form Factor |
Micro ATX (17.2 x 23.5cm) |
| Chipset |
Intel G41 (North Bridge) 82801GB (South Bridge) |
| CPU Support |
Core 2 Quad / Core 2 Duo / Pentium / Celeron Series |
| Socket |
LGA 775 |
| Processor Support |
Intel |
| BIOS |
AMI |
| Memory Type |
DDR2 |
| Memory Slots |
2 x DIMM |
| Maximum Memory |
8GB (4GB x 2) |
| Memory Speed |
800 MHz |
| Dual Channel Support |
Yes |
| PCIe x16 Slots |
x1 |
| SATA Ports |
x4 |
| JCOM Connector |
x1 |
| I/O Panel |
1 x PS2 | 1 x VGA | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) speeds of 10/100Mbps |
| Expansion Slots |
PCIe x 16 |
| VGA Port |
x1 |
| USB Rear Ports |
USB 2.0 x 4 |
| USB Front Header |
Yes |
| LAN |
10/100 Mbps |
| Audio |
Line in / Line out / Mic In |
| Front Audio |
yes |
| Fan Header |
CPU Fan | System Fan |
| Power Connector |
1 x 40-Pin IDE Port |
| OS Support |
Windows / Linux / Chrome OS |
| Accessories |
1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
| Motherboard Drivers |
