The PMB760DDR5 Micro-ATX Motherboard is a dependable and high-performance platform driven by the Intel B760 chipset. It supports 12th, 13th, and 14th Generation Intel Core i3, i5, i7, and i9 CPUs on the LGA 1700 socket. The tiny Micro-ATX form factor (22 × 24 cm) supports DDR5 memory with 2 DIMM slots, allowing up to 128GB dual-channel RAM at speeds up to 6400MHz for effortless multitasking and quicker performance.

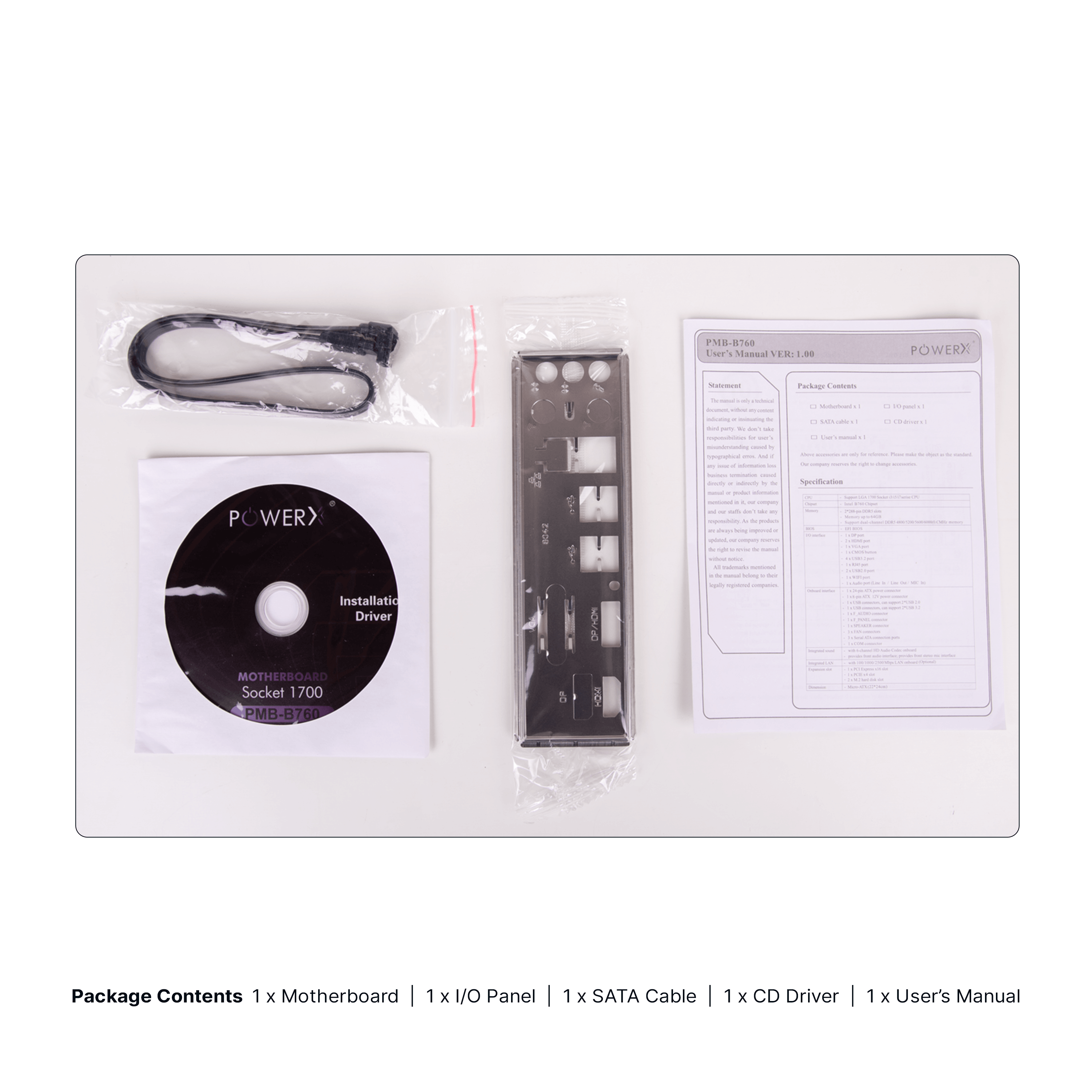

For expansion and connection, the PMB760DDR5 has two PCIe x16 slots, two M.2 NVMe slots, a dedicated M.2 CNVi Wi-Fi slot, and three SATA ports. The rear I/O panel has HDMI, DisplayPort, VGA, USB 3.2 and 2.0 ports, high-speed LAN (100/1000/2500 Mbps), Bluetooth, and 3-in-1 audio with front audio headers. AMI EFI BIOS, CPU and system fan headers, a 20+4 pin power connector, and compatibility with Windows, Linux, and Chrome OS are among the additional features. Accessories include an I/O panel, a SATA cable, a user manual, and a driver disk, making it a complete solution for modern PC setups.
| Specification | Details |
| Model | PMB760DDR5 |

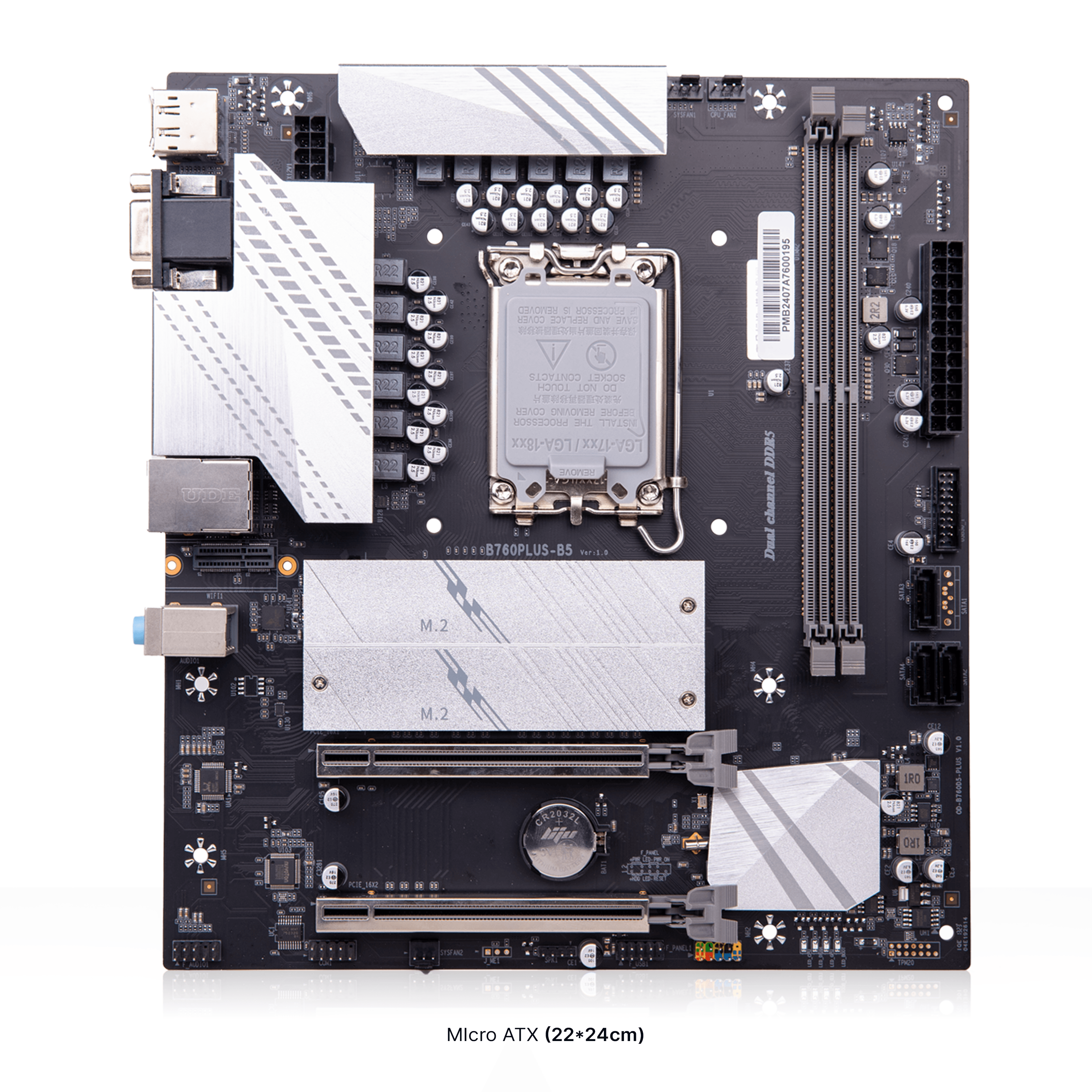

| Form Factor | Micro ATX (22 x 24cm) |
| Chipset | B760 |
| CPU Support | 12th, 13th and 14th Gen |
| Socket | LGA 1700 |
| Processor Support | Inter Core i3/i5/i7/i9 |
| BIOS | AMI EFI |
| Memory Type | DDR5 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 128GB (64GB x 2) |
| Memory Speed | 6400 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x2 |
| M.2 NVMe Slots | x2 |
| M.2 Wi-Fi Slot | x1 |
| SATA Ports | x3 |

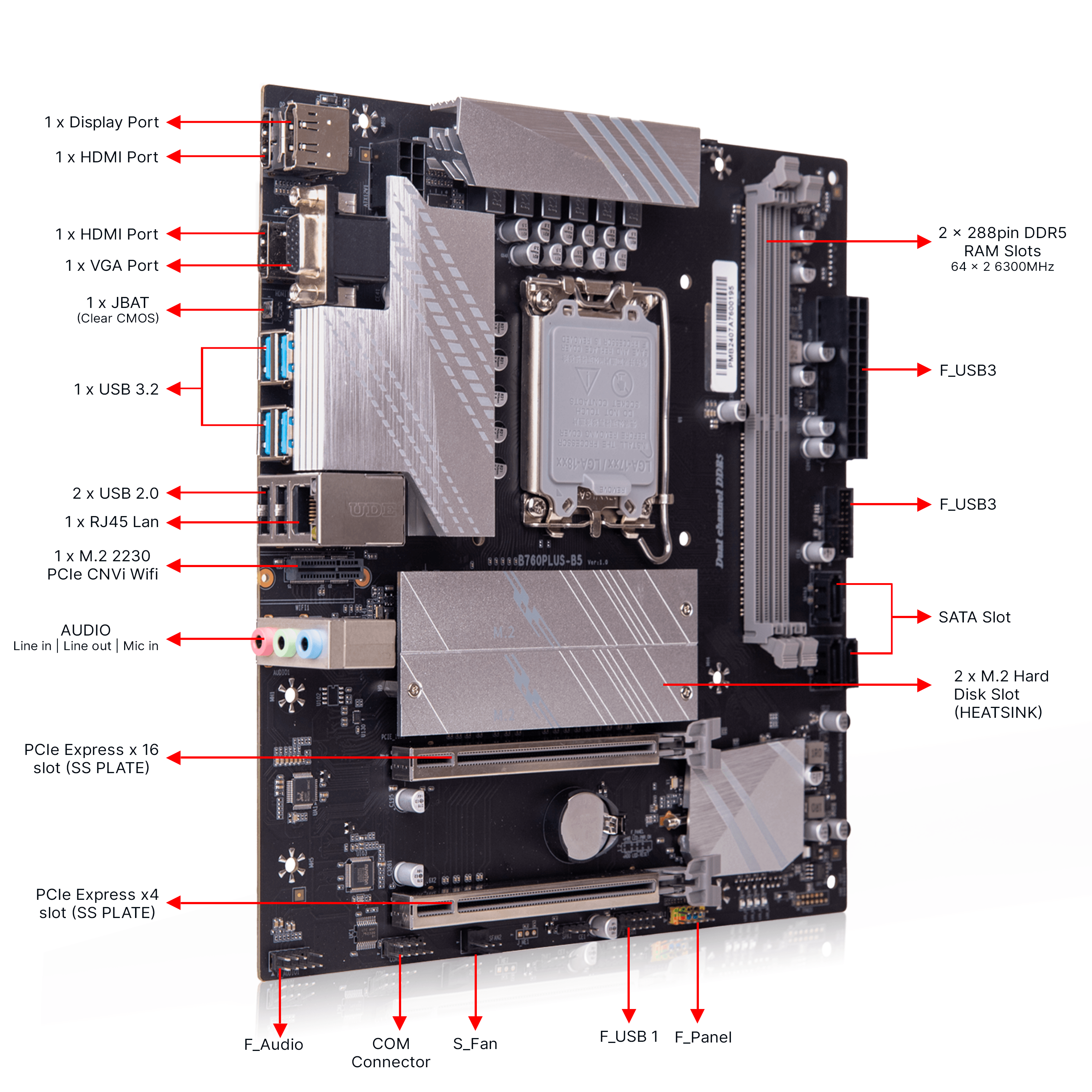

| I/O Panel | 1 x DP | 2 x HDMI | 1 x VGA | 4 x USB3.2 | 2 x USB2.0 | 3 in 1 Audio | LAN (RJ45) speeds of 100/1000/2500Mbps |
| Expansion Slots | 2 x PCIe x 16 | M.2 2230 PCIe CNVi Wifi Slot | 2 x NVMe Slots |
| HDMI Ports | x2 |
| Display Port | x1 |
| USB Ports | USB 3.2 x 4 | USB 2.0 x 2 |
| USB Front Header | Yes |

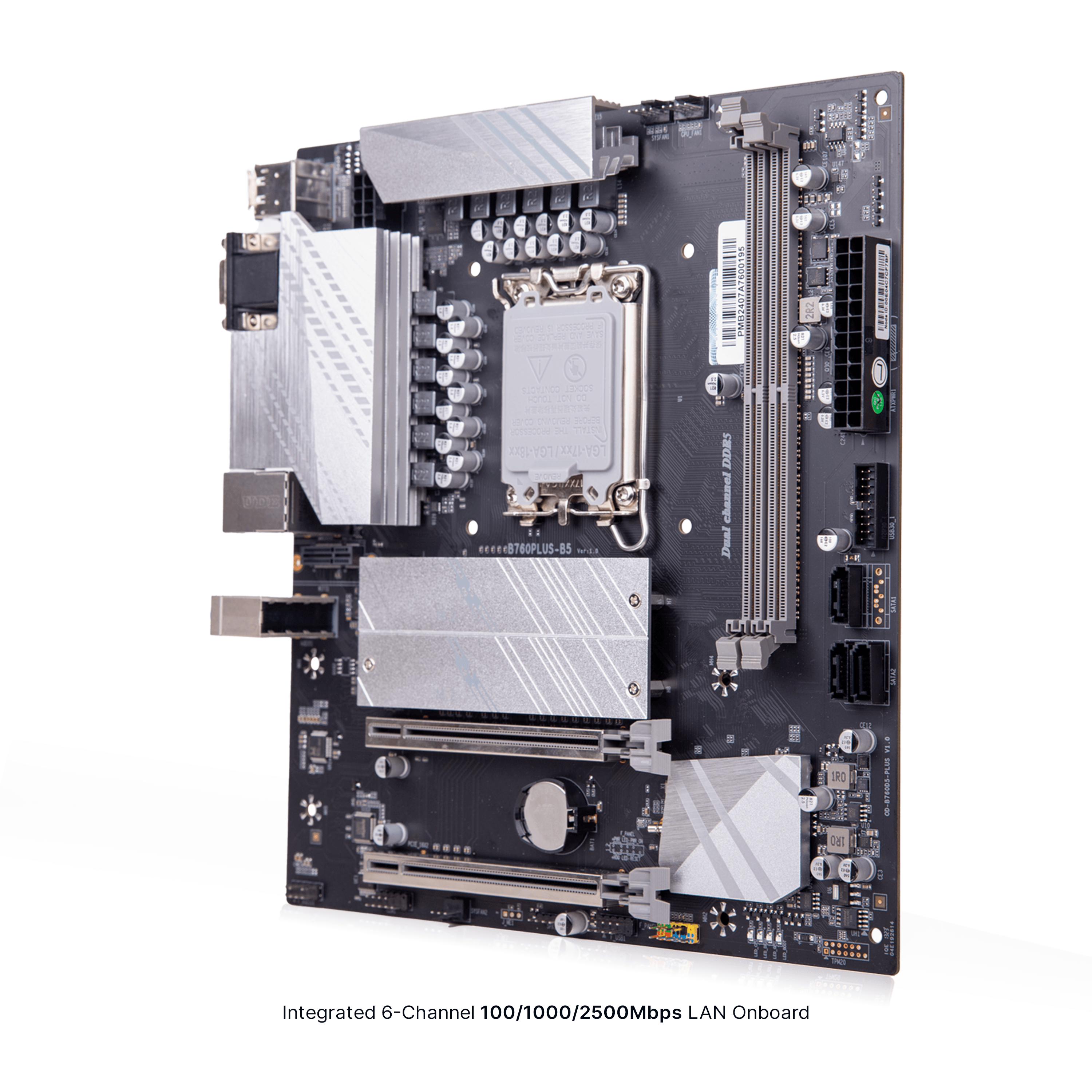

| LAN | 100/1000/2500 Mbps |
| Bluetooth | yes |
| Audio | Line in / Line out / Mic In |
| Front Audio | yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |
| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
| Motherboard Driver | Click Here |
| Wi-Fi Driver |
