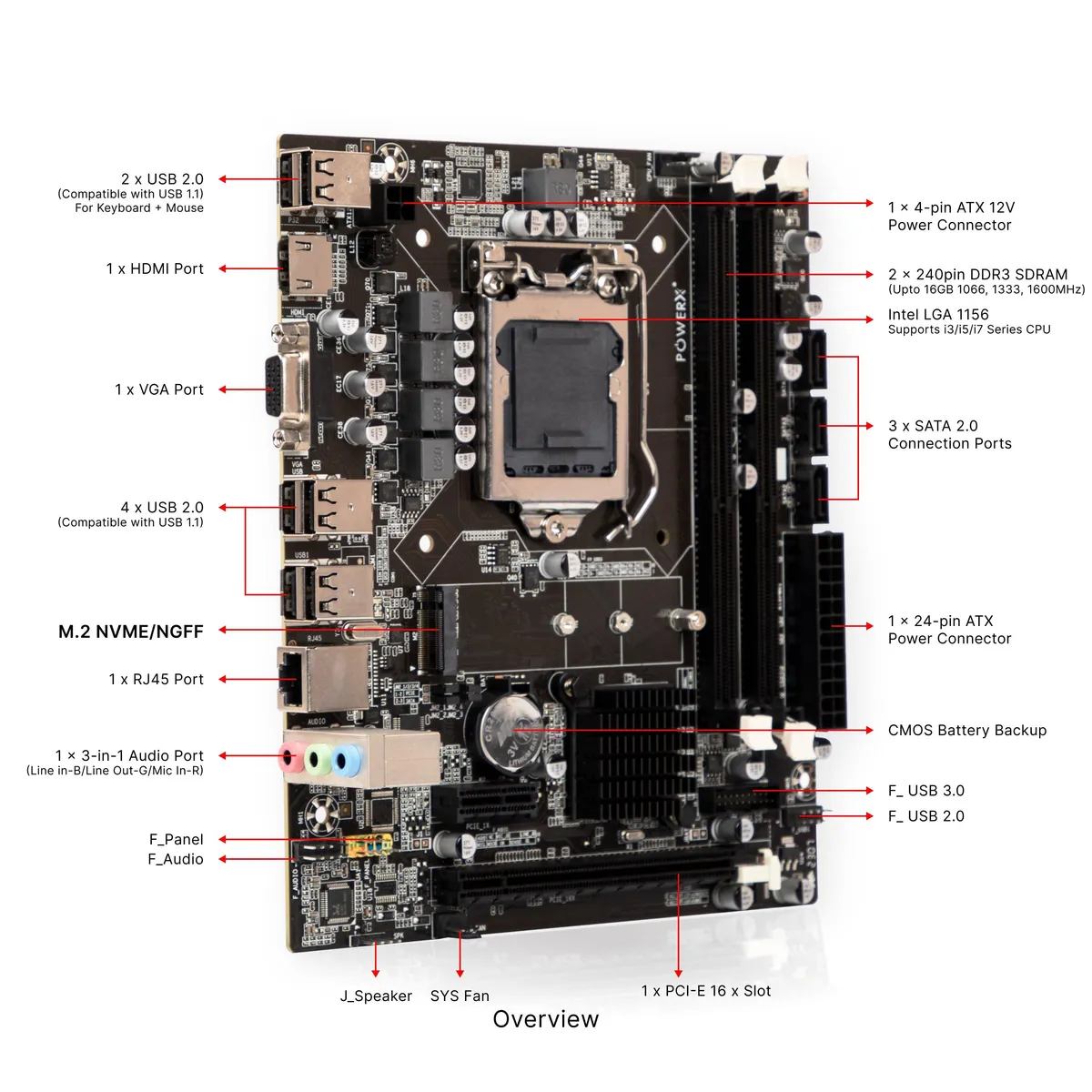

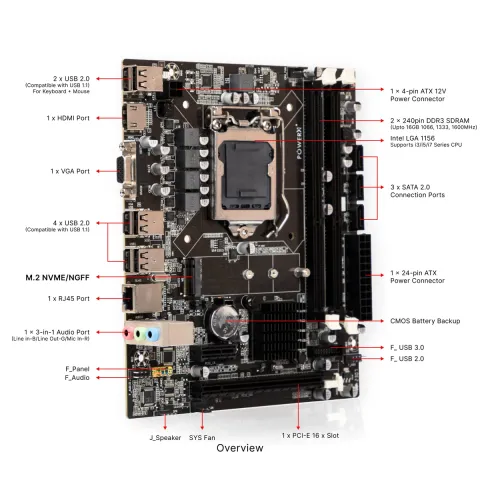

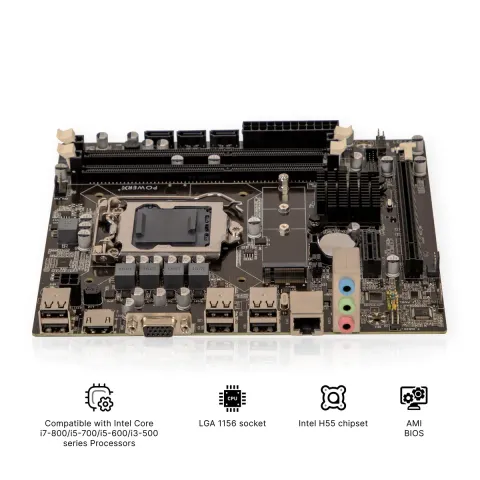

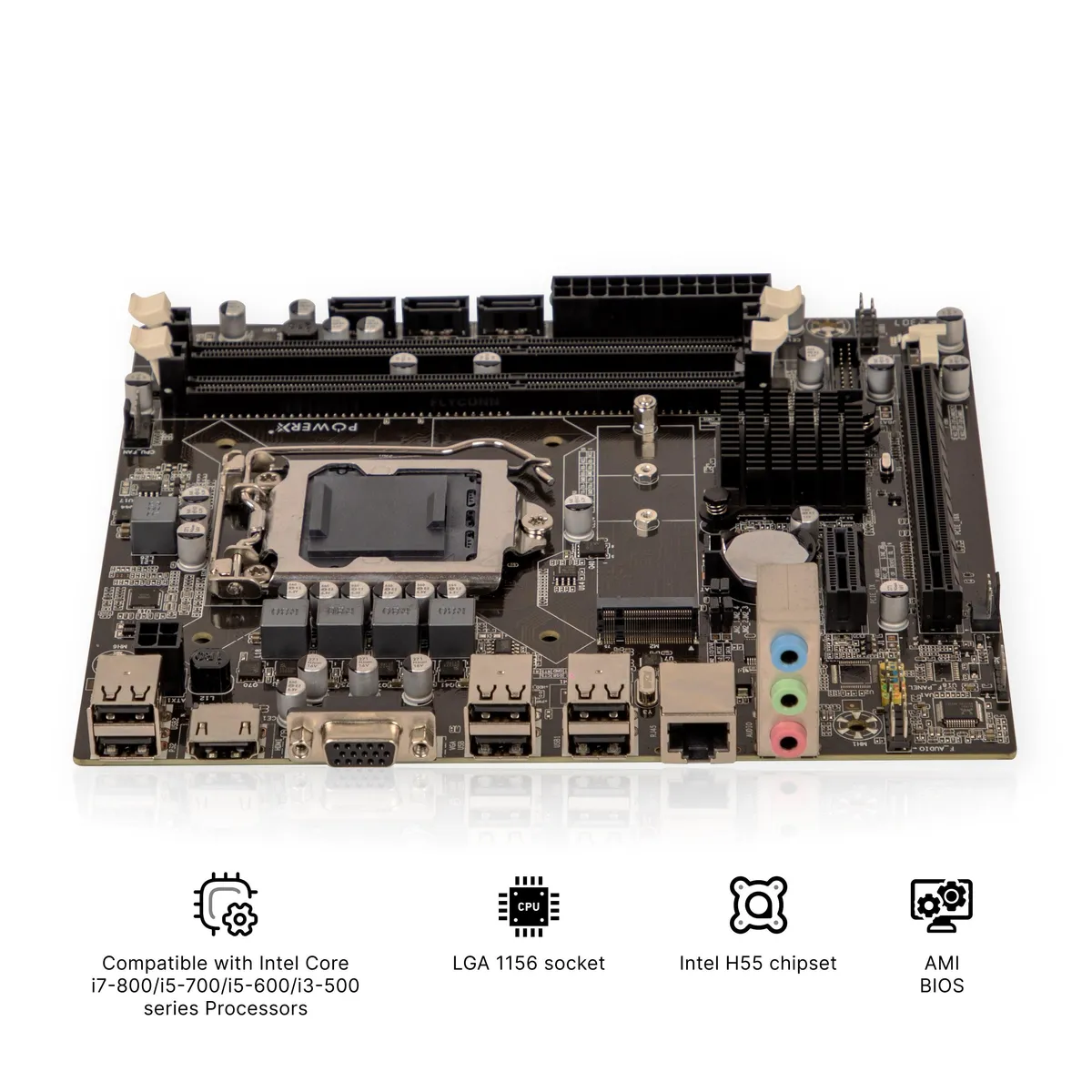

The PMBH55DDR3 Micro-ATX Motherboard (16.8 x 19.6 cm) features the Intel H55 chipset and LGA 1156 socket support, ensuring stable and efficient performance. It works with Intel Core i3, i5, and i7 processors, including the i7-800, i5-700/600, and i3-500 series CPUs. The board supports DDR3 memory with two DIMM slots, allowing for up to 16GB RAM at 1066 / 1333 / 1600 MHz with dual-channel support, making it ideal for everyday home and office computing.

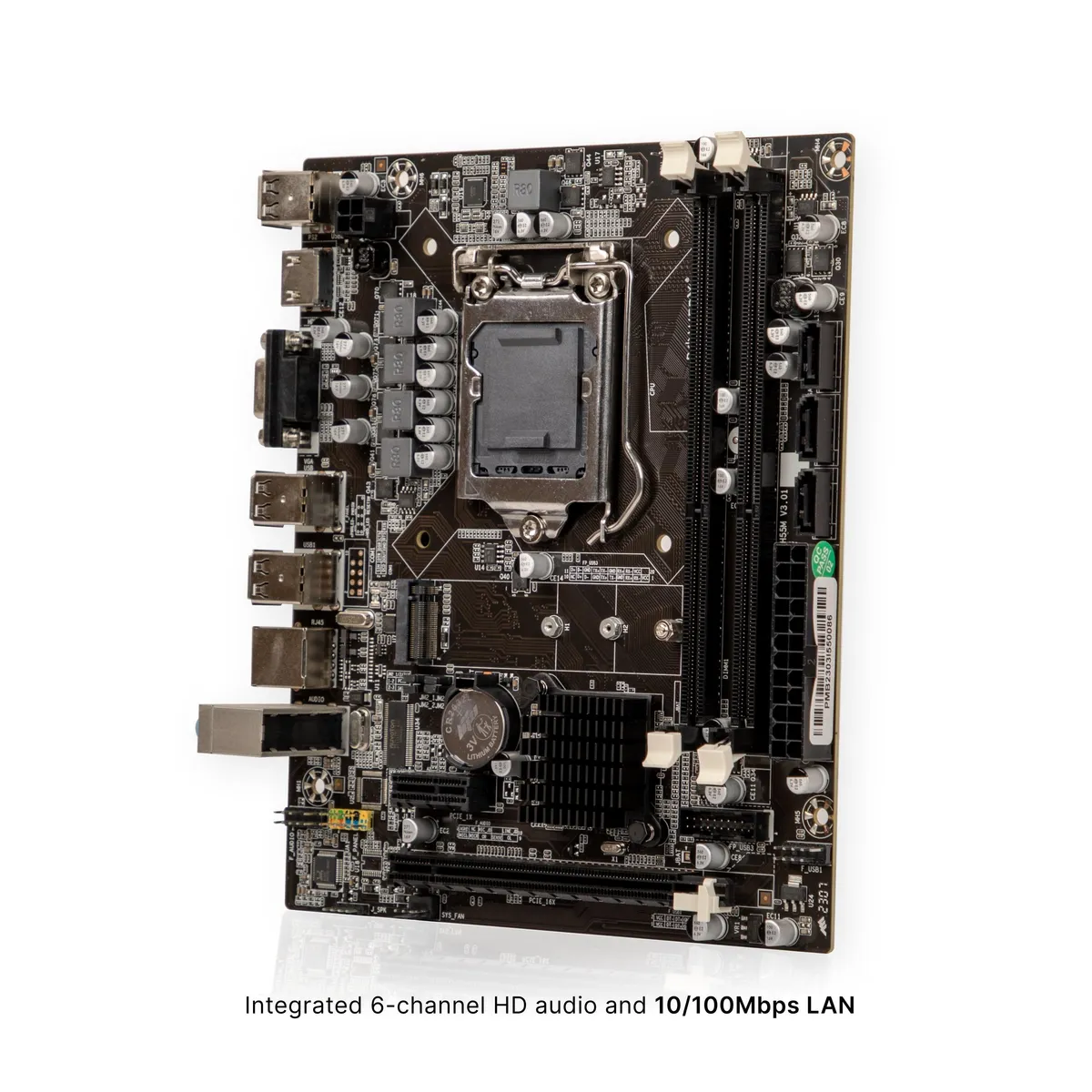

The motherboard is built for flexibility, featuring one PCIe x16 slot and one PCIe x1 slot for expansion, as well as three SATA storage connections. The back I/O panel includes HDMI and VGA outputs, 6 USB 2.0 ports, 3-in-1 audio jacks, and 10/100 Mbps LAN connectivity. Additional features include AMI BIOS, front USB and audio connectors, CPU and system fan headers, and a 20+4 pin power connector for easy installation. It supports Windows, Linux, and Chrome OS and comes with a motherboard, I/O panel, SATA cable, driver CD, and user manual.
| Specification |
Details |
| Model |
PMBH55DDR3 |

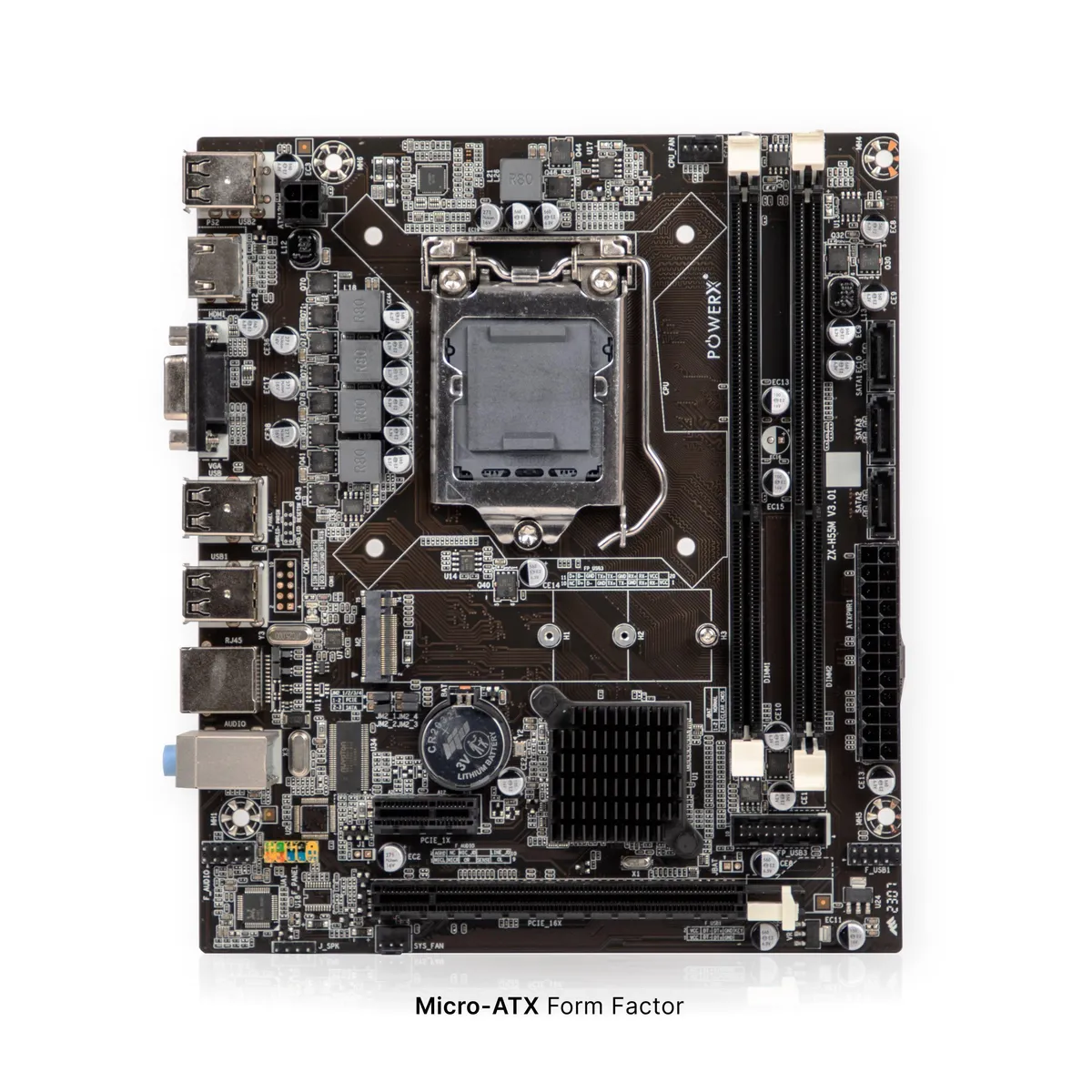

| Form Factor |
Micro ATX (16.8 x 19.6cm) |
| Chipset |
H55 |
| CPU Support |
Intel Core i7-800 / i5-700-600 / i3-500 Series |
| Socket |
LGA 1156 |
| Processor Support |
Inter Core i3/i5/i7 |
| BIOS |
AMI |
| Memory Type |
DDR3 |
| Memory Slots |
2 x DIMM |
| Maximum Memory |
16GB (8GB x 2) |
| Memory Speed |
1066MHz, 1333MHz, 1600 MHz |
| Dual Channel Support |
Yes |
| PCIe x16 Slots |
x1 |
| PCIe x1 Slots |
x1 |
| M.2 Slot |
x1 |
| SATA Ports |
x3 |
| I/O Panel |
1 x HDMI | 1 x VGA | 6 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100Mbps |
| Expansion Slots |
PCIe x 16 | PCIe x 1 | M.2 NVMe/NGFF slot |
| HDMI Ports |
x1 |
| VGA Port |
x1 |
| USB Rear Ports |
USB 2.0 x 6 |
| USB Front Header |
Yes |
| LAN |
10/100 Mbps |
| Audio |
Line in / Line out / Mic In |
| Front Audio |
yes |
| Fan Header |
CPU Fan | System Fan |
| Power Connector |
20+4Pin |
| OS Support |
Windows / Linux / Chrome OS |
| Accessories |

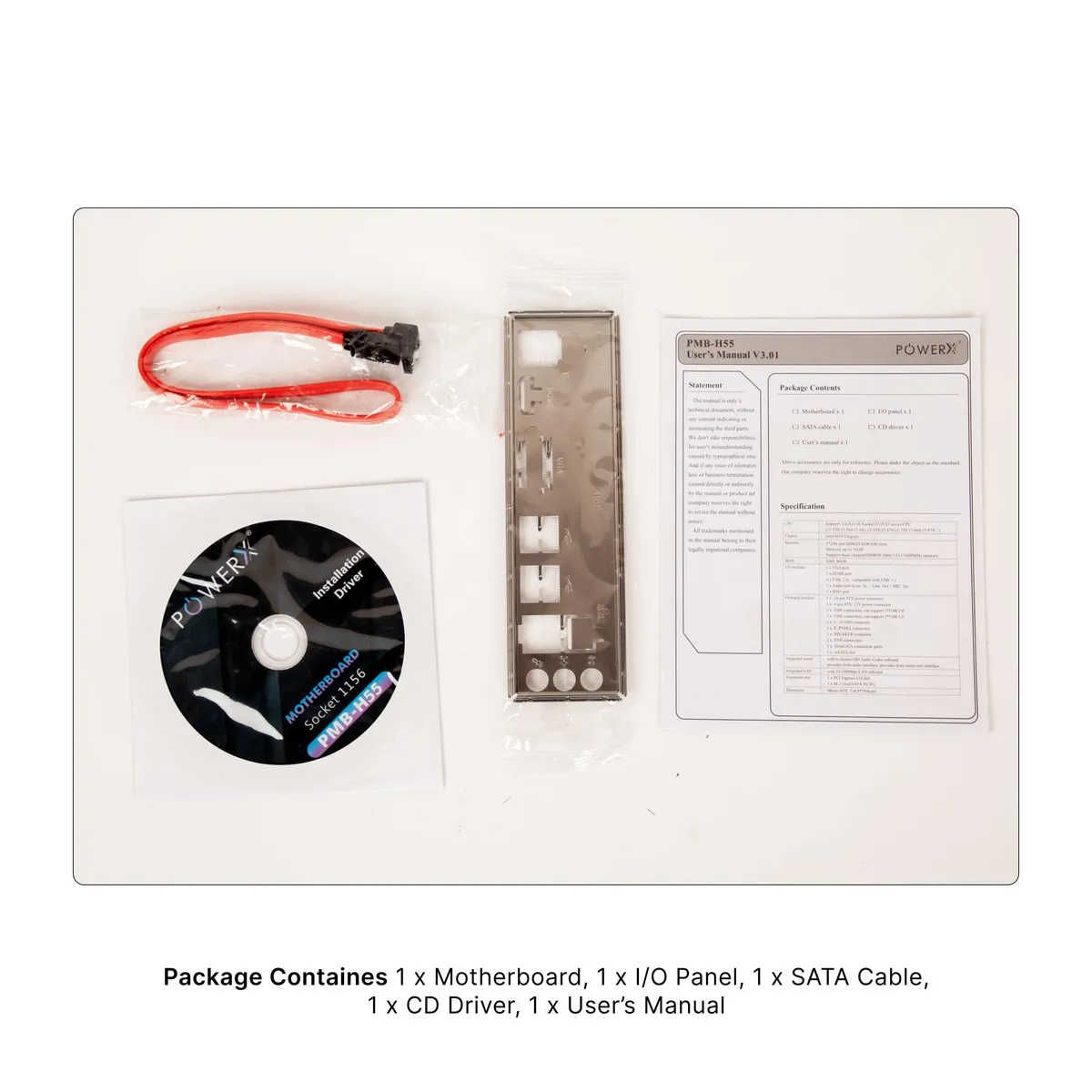

1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
