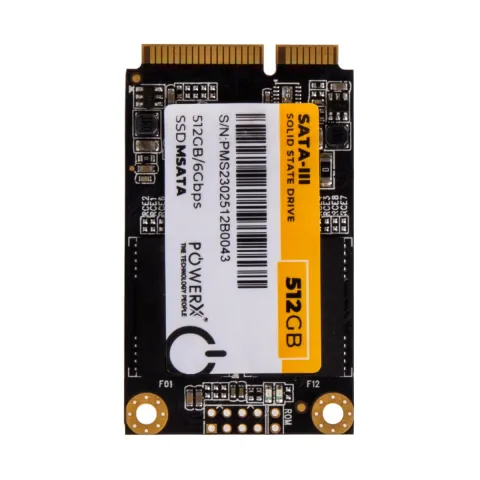

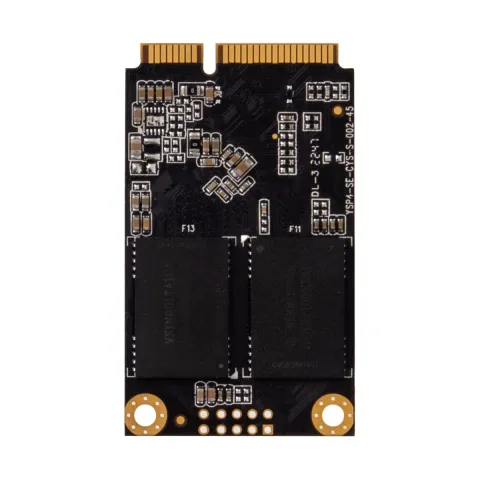

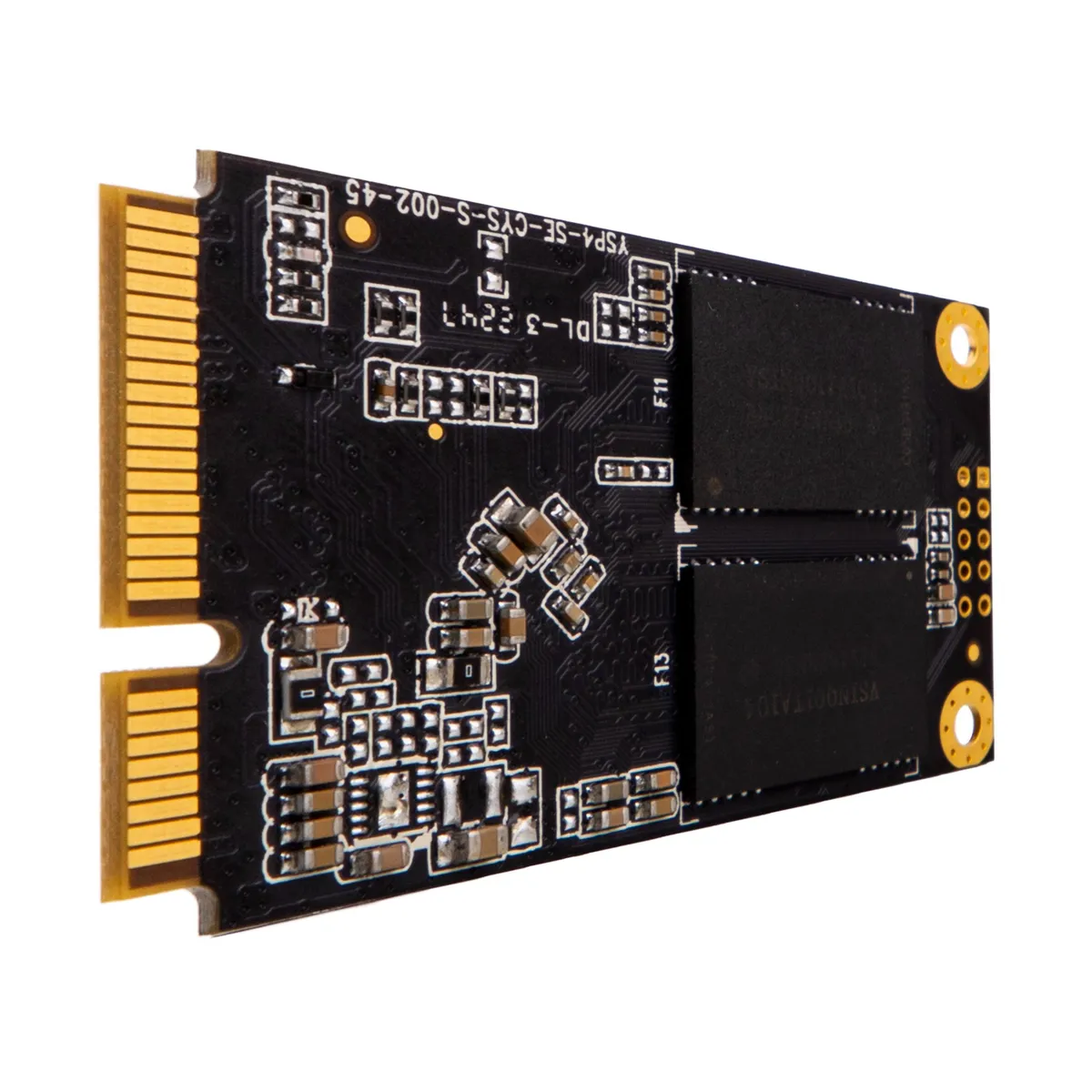

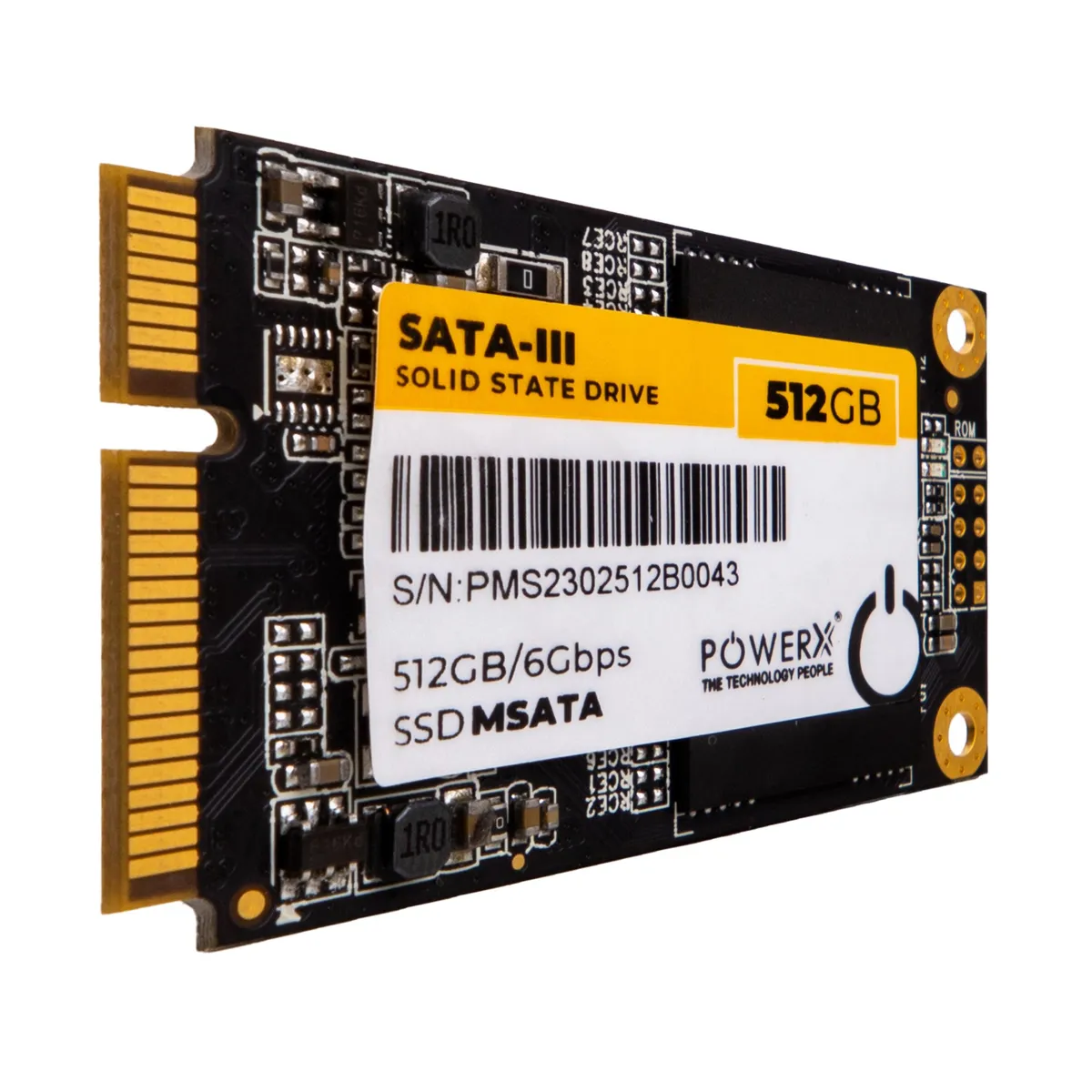

The MSATA 512GB SSD is a compact, high-speed storage option for laptops, embedded devices, and industrial PCs. Built in a mini-SATA (mSATA) form factor with a SATA III 6.0Gbps interface, it provides quick and dependable performance, with read rates of up to 550 MB/s and write speeds of up to 490 MB/s. This SSD uses innovative 3D NAND TLC technology to provide speedy boot times, faster application loading, and smooth overall system performance in a tiny footprint.
The MSATA SSD is designed for long-term durability, with an MTBF of 2 million hours and consistent performance across a wide temperature range. It has advanced features like as SMART monitoring, TRIM, LDPC ECC engine, global wear-leveling, bad block management, trash collection, and dynamic power management to improve data security and longevity. With low power consumption and compatibility with Windows, Linux, and Chrome OS, this 512GB mSATA SSD is an excellent upgrade for space-constrained systems that require speed and dependability.
| Specification |
Details |
| Model |
MSATA |
| Form Factor |
M-SATA |
| Interface |
SATA 6.0Gbps (SATA-III) |
| Capacity |
512GB |
| Dimensions |
50±0.1 x 30±0.1 x 3±0.2mm |
| NAND Type |
3D NAND TLC |
| Read Speed |
550MB/s |
| Write Speed |
490MB/s |
| MTBF |
2 Million hours |
| Operating Temperature |
0~+70°C |
| Storage Temperature |
-40~85°C |
| Active Power Consumption |
<3.19~4.35W |
| Idle Power Consumption |
<0.5W |
| Operating System |
Windows | Linux | Chrome OS |
| Features |
SMART Monitoring, TRIM Function, LDPC ECC Engine, Global Wear-Leveling
Bad Block Management, Dynamic Power Management, Garbage Collection |
Disclaimer: The company is not responsible for any data loss or SSD corruption. Please ensure proper backup and maintenance of your data.
