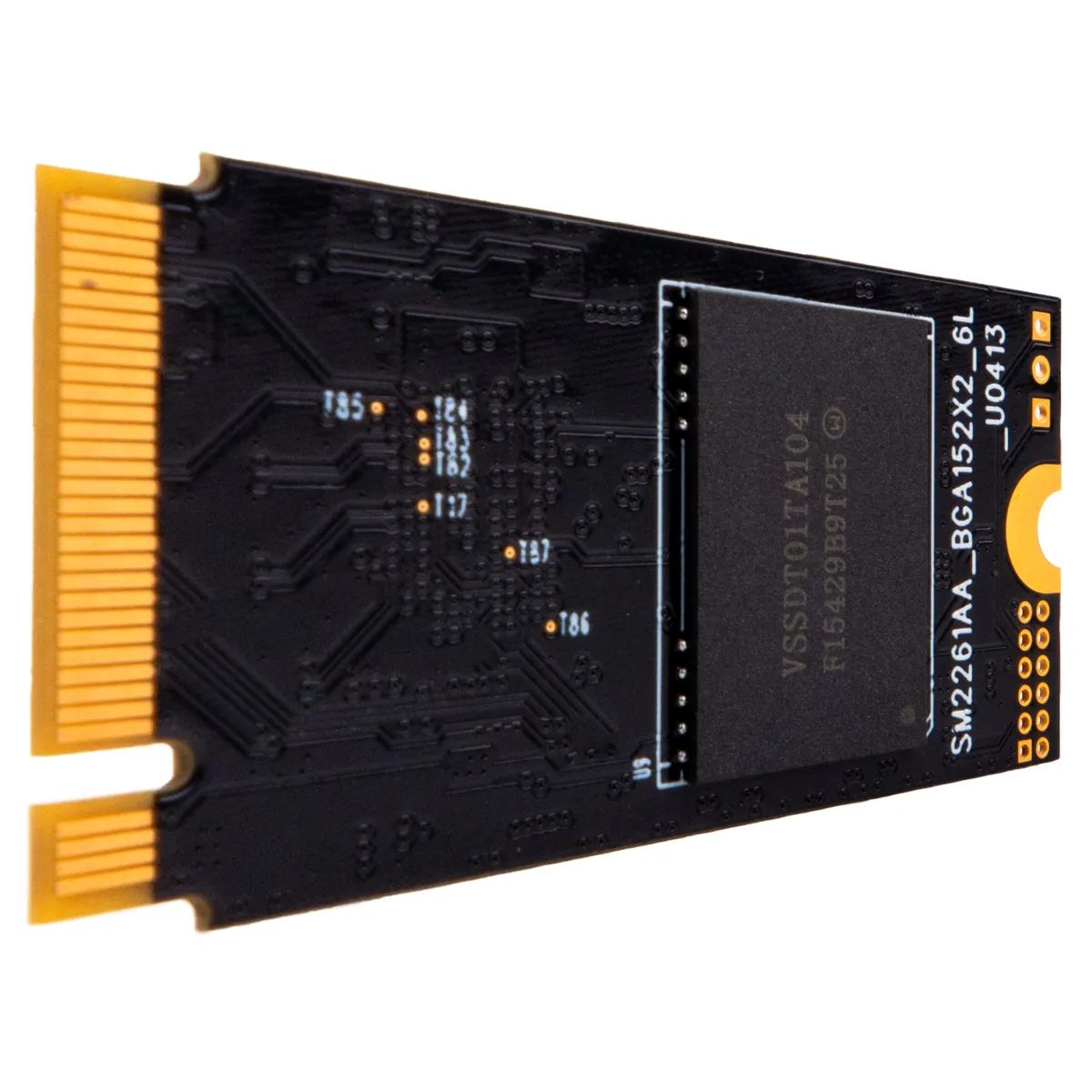

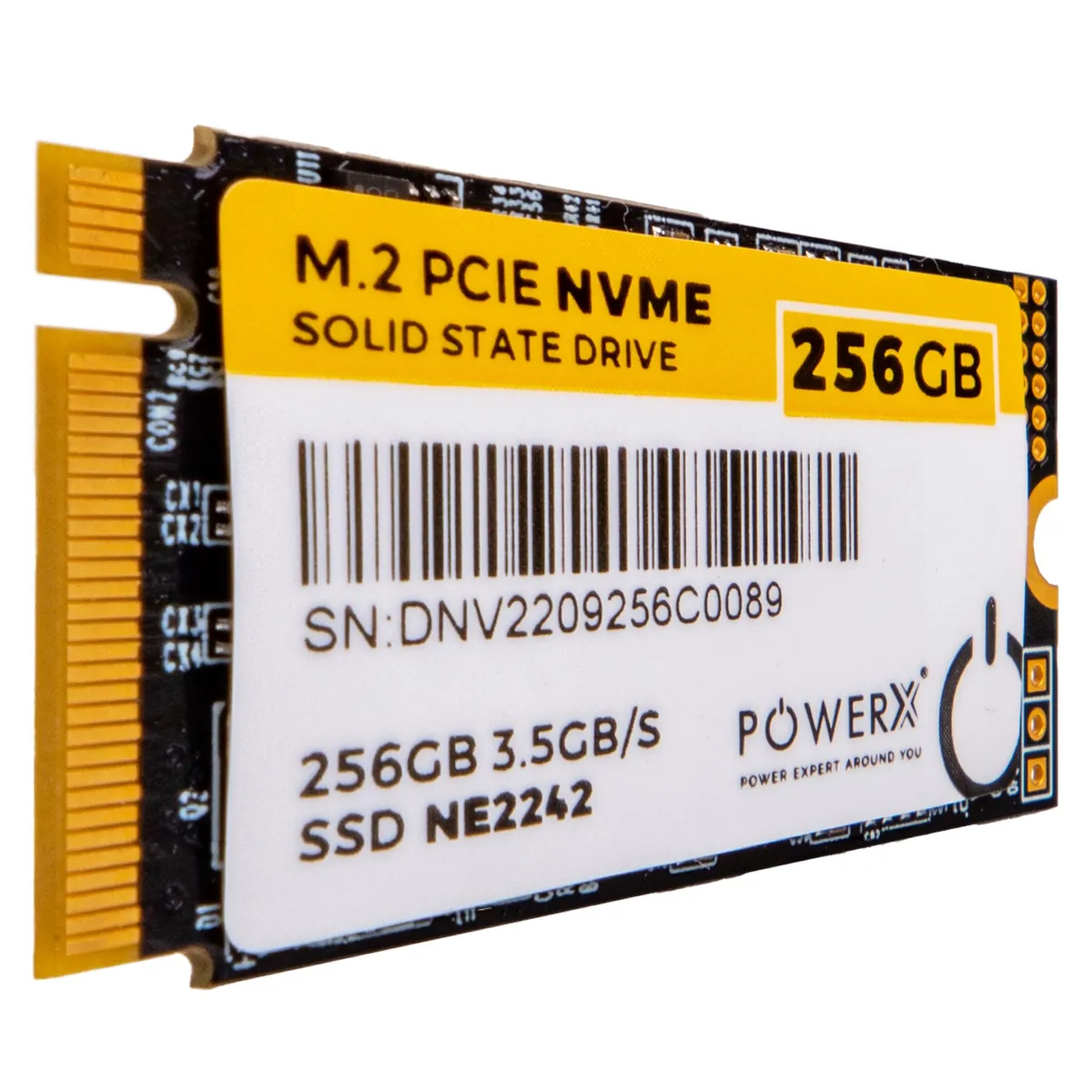

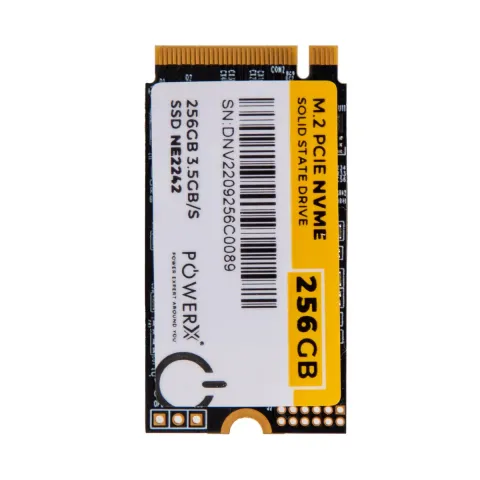

The NE2242 M.2 NVMe 256GB SSD is a high-performance storage option for small devices including laptops, micro PCs, and embedded systems. It has an M.2 NVMe 2242 form factor and a PCIe Gen 3 x4 interface (NVMe 1.3), delivering incredible performance with read and write speeds of up to 2000 MB/s and 1700 MB/s, respectively. This SSD uses reliable 3D NAND TLC memory to provide faster boot speeds, seamless multitasking, and speedy data access in a space-saving form.
The NE2242 SSD is designed for longevity and efficiency, with a 2 million hour MTBF and consistent performance across a wide temperature range. Advanced features including SMART monitoring, TRIM support, LDPC ECC engine, global wear-leveling, bad block management, garbage collection, and dynamic power management ensure data integrity and lifetime. With low power consumption and compatibility with Windows, Linux, and Chrome OS, this SSD is an excellent choice for those looking for quick, dependable, and energy-efficient NVMe storage.
| Specification |
Details |
| Model |
NE2242 |
| Form Factor |
M.2 NVMe 2242 |
| Interface |
PCIe GEN 3x4 LANE (NVMe 1.3) |
| Capacity |
256 GB |
| Dimensions |
42±0.1 x 22±0.1 x 2.1±0.1mm |
| NAND Type |
3D NAND TLC |
| Read Speed |
2000MB/s |
| Write Speed |
1700MB/s |
| MTBF |
2 Million hours |
| Operating Temperature |
0°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Active Power Consumption |
<3.19~4.35W |
| Idle Power Consumption |
0.5W |
| Operating System |
Windows | Linux | Chrome OS |
| Features |
SMART Monitoring, TRIM Function, LDPC ECC Engine, Global Wear-Leveling
Bad Block Management, Dynamic Power Management, Garbage Collection |
Disclaimer: The company is not responsible for any data loss or SSD corruption. Please ensure proper backup and maintenance of your data.
