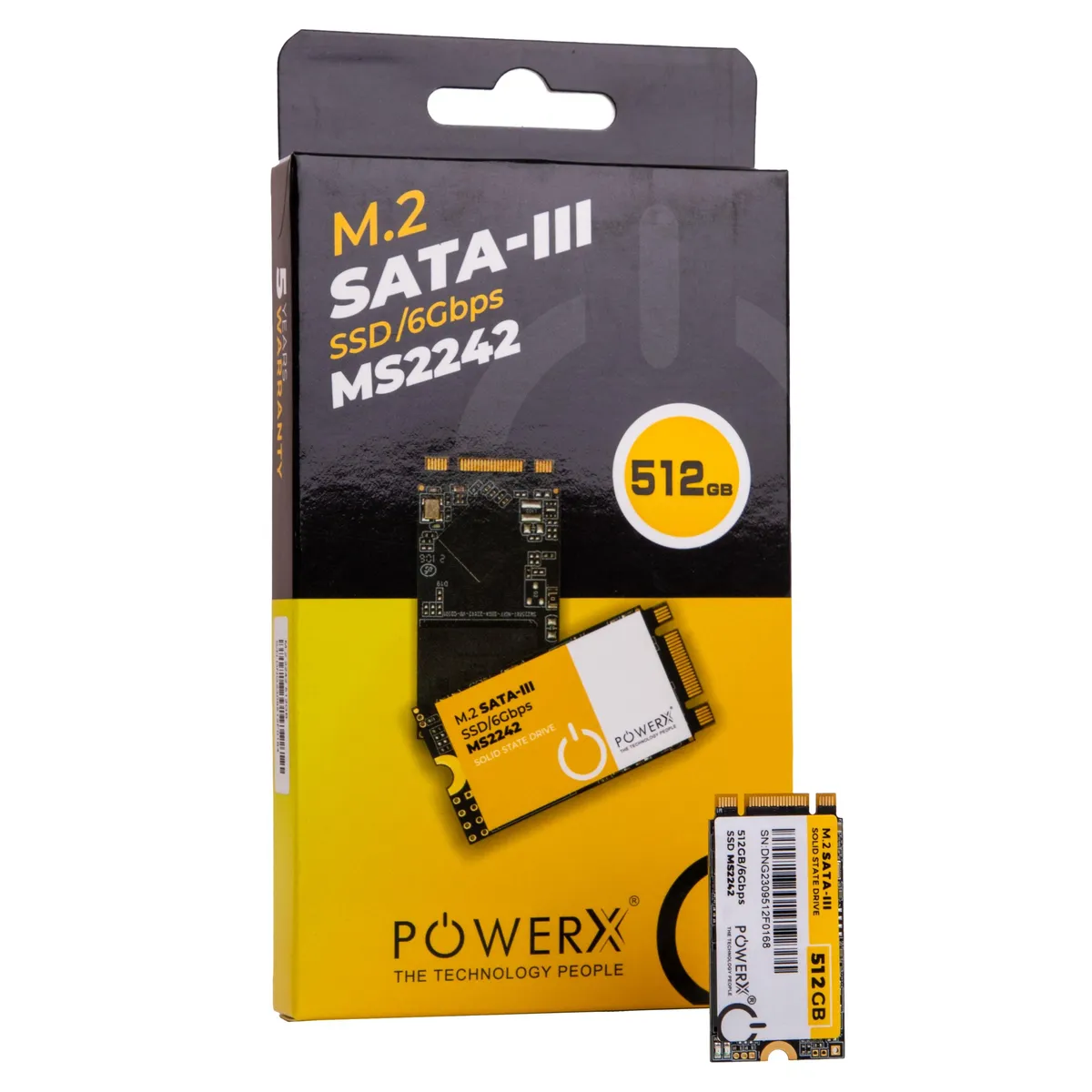

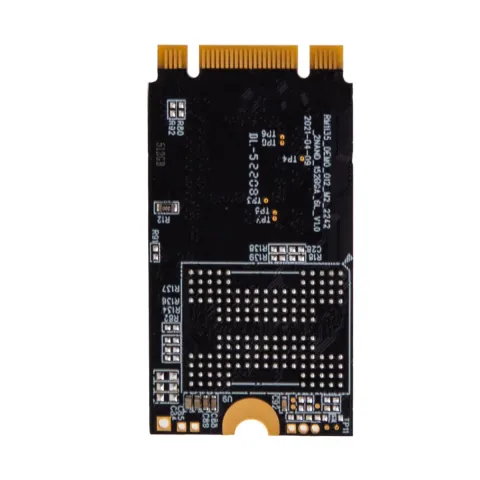

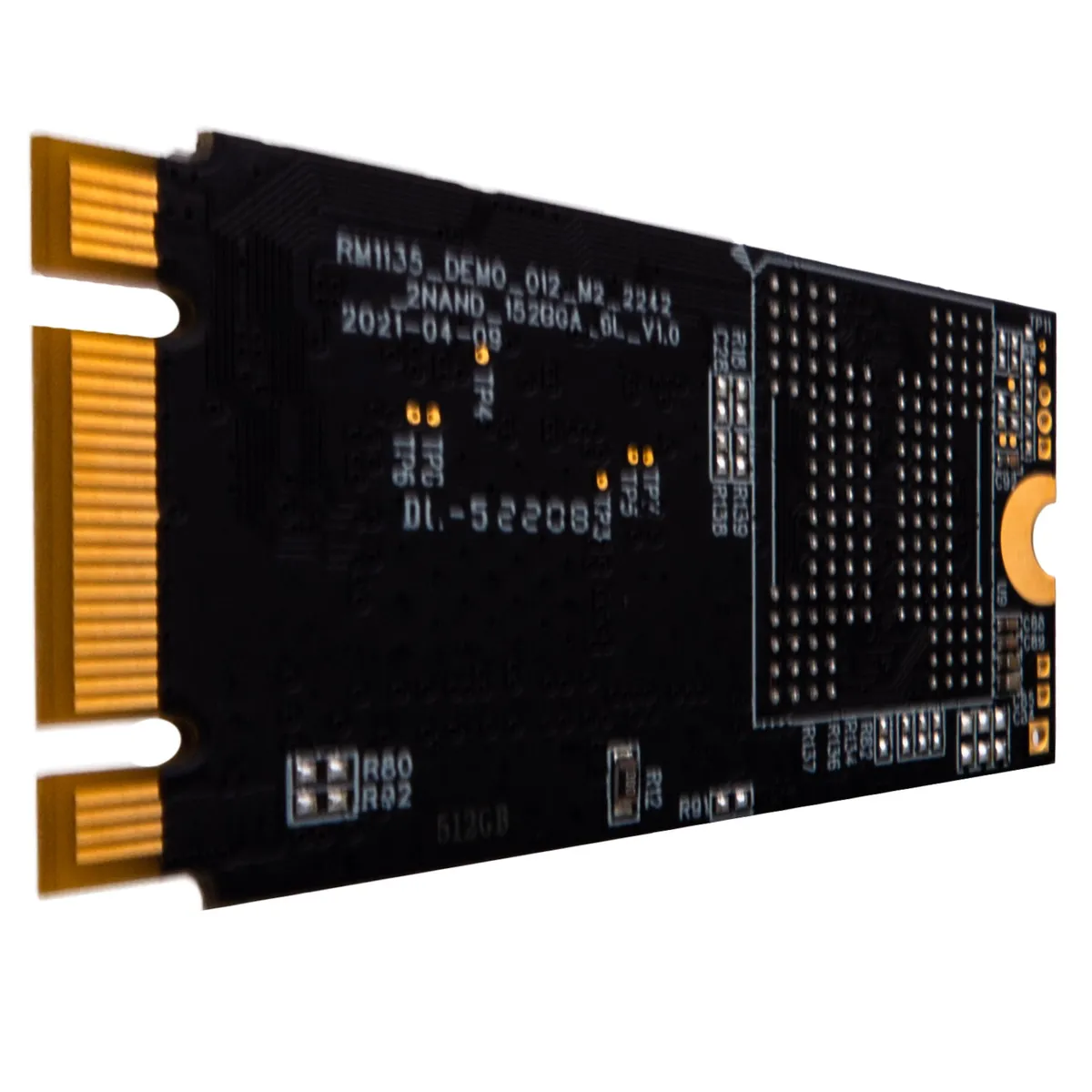

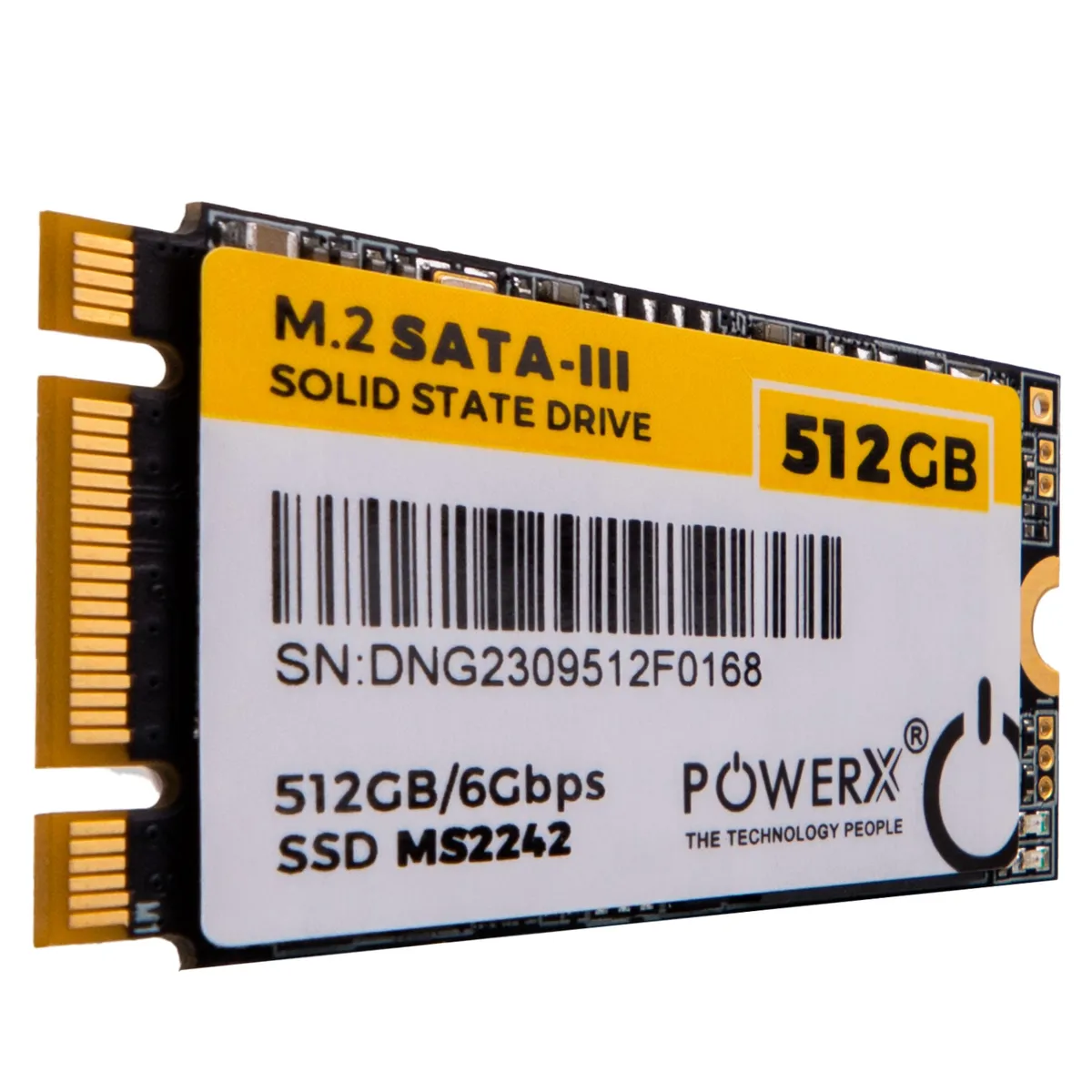

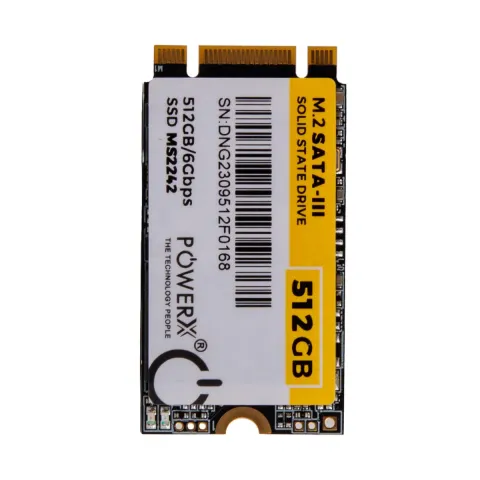

The MS2242 M.2 NGFF 512GB SSD is a compact and efficient storage option for laptops, tiny PCs, and embedded systems. With an M.2 NGFF 2242 form factor and a SATA III 6.0Gbps interface, it provides high performance, with read rates of up to 550 MB/s and write speeds of up to 490 MB/s. Built with dependable 3D NAND TLC technology, this SSD boosts boot times, application loading, and general system responsiveness while fitting nicely into tiny devices.
The SSD is designed for long-term dependability, with an MTBF of 2 million hours and consistent performance across a wide temperature range. It has advanced features like SMART monitoring, TRIM support, an LDPC ECC engine, global wear-leveling, bad block management, trash collection, and dynamic power management to improve data security and efficiency. With its low power consumption and compatibility with Windows, Linux, and Chrome OS, the MS2242 512GB SSD is an excellent choice for consistent and energy-efficient performance.
| Model |
MS2242 |
| Form Factor |
M.2 NGFF 2242 |
| Interface |
SATA 6.0Gbps (SATA-III) |
| Capacity |
512GB |
| Dimensions |
42±0.2 x 22±0.2 x 2.3±0.2mm |
| NAND Type |
3D NAND TLC |
| Read Speed |
550MB/s |
| Write Speed |
490MB/s |
| MTBF |
2 Million hours |
| Operating Temperature |
0~+70°C |
| Storage Temperature |
-40~85°C |
| Active Power Consumption |
<3.19~4.35W |
| Idle Power Consumption |
<0.5W |
| Operating System |
Windows 7/8/10, Linux Kernel 2.6.31+ |
| Features |
SMART Monitoring, TRIM Function, LDPC ECC Engine, Global Wear-Leveling
Bad Block Management, Dynamic Power Management, Garbage Collection |
Disclaimer: The company is not responsible for any data loss or SSD corruption. Please ensure proper backup and maintenance of your data.
