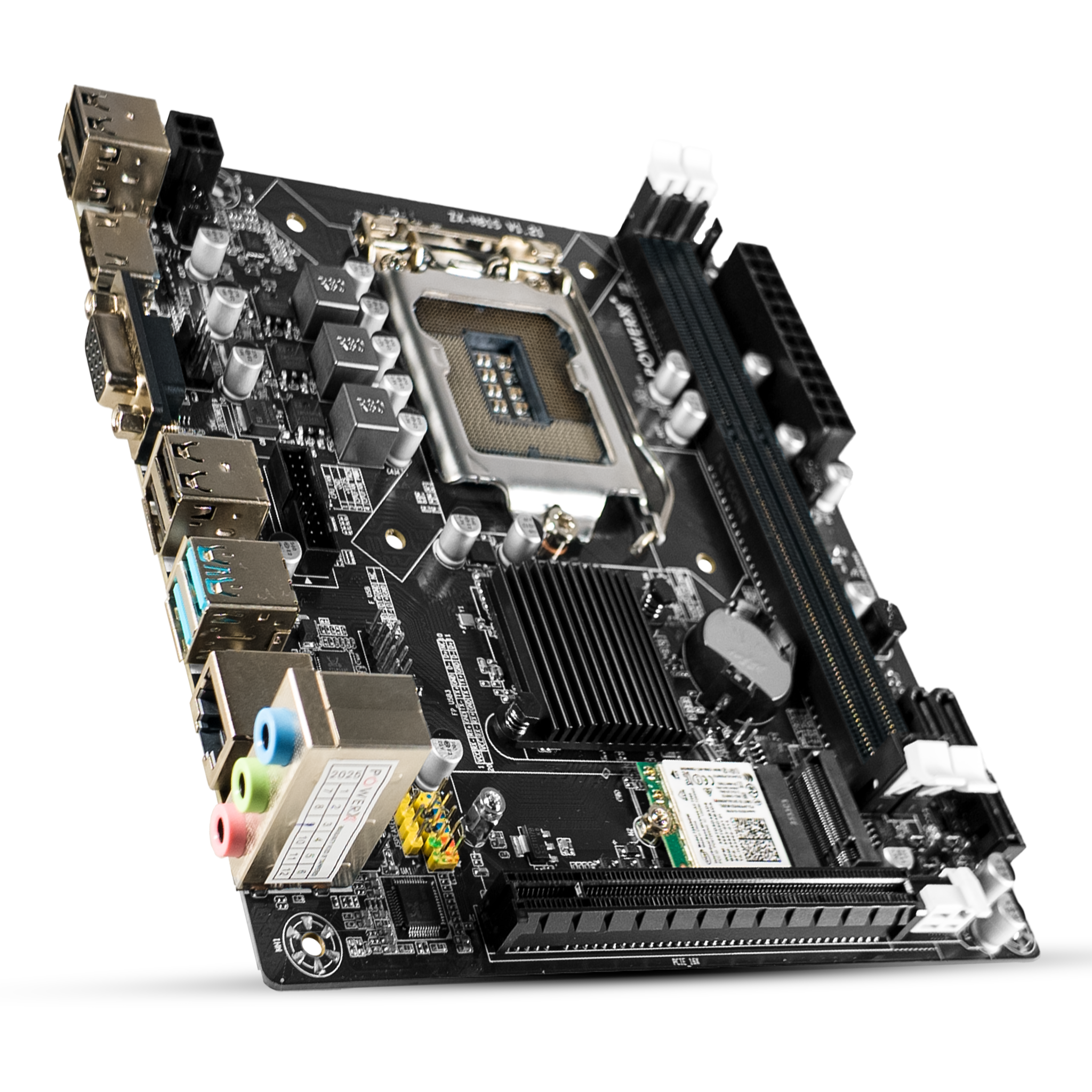

This Micro-ATX H81 Motherboard (17 × 19 cm) is a reliable choice for systems powered by 4th and 5th Gen Intel Core i3, i5, i7, and i9 processors with the LGA 1150 socket. It comes with built-in Wi-Fi and it uses the H81 chipset and supports DDR3 memory with two DIMM slots, allowing for up to 16GB of RAM (1600 MHz) with dual-channel compatibility. The compact design makes it excellent for home, business, and value-oriented desktop systems that demand consistent daily performance.
The motherboard includes one PCIe x16 slo, one PCIe x1 slot and M.2 NVMe/NGFF slot for expansion, as well as three SATA ports for storage. HDMI and VGA display outputs, USB 3.0 and USB 2.0 ports, 3-in-1 audio, and LAN (10/100 Mbps) support provide reliable networking. Other notable features include EFI BIOS, front USB and audio connections, CPU and system fan headers, a 20+4 pin power connector, and broad OS compatibility with Windows, Linux, and Chrome OS. The package includes the motherboard, I/O panel, SATA cable, driver disk, and user manual for simple installation.
| Specification | Details |
|---|---|
| Brand | POWERX |
| Model | PMBH81DDR3 |
| Form Factor | Micro ATX (17 x 19cm) |
| Chipset | H81 |
| CPU Support | 4th and 5th Gen |
| CPU Socket | LGA 1150 |
| Processor Support | Intel Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR3 |
| Memory Slots | 2 x DIMM |
| Max Memory | 16GB (8GB x 2) |
| Memory Speed | 1600 MHz |
| Wi-Fi | Wi-Fi 5 |
| Bluetooth | Bluetooth 4.0 |
| Dual Channel Support | Yes |
| PCIe x16 Slot | x1 |
| PCIe x1 Slot | x1 |
| M.2 Slots | x2 |
| SATA Ports | x3 |
| I/O Panel | 1 x HDMI | 1 x VGA | 2 x USB3.0 | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100Mbps |
| Expansion Slots | PCIe x 16 | PCIe x 1 | M.2 NVMe/NGFF slot | M.2 Wi-Fi |
| HDMI Port | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 4 |
| USB Front Header | Yes |
| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | Yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |
| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
