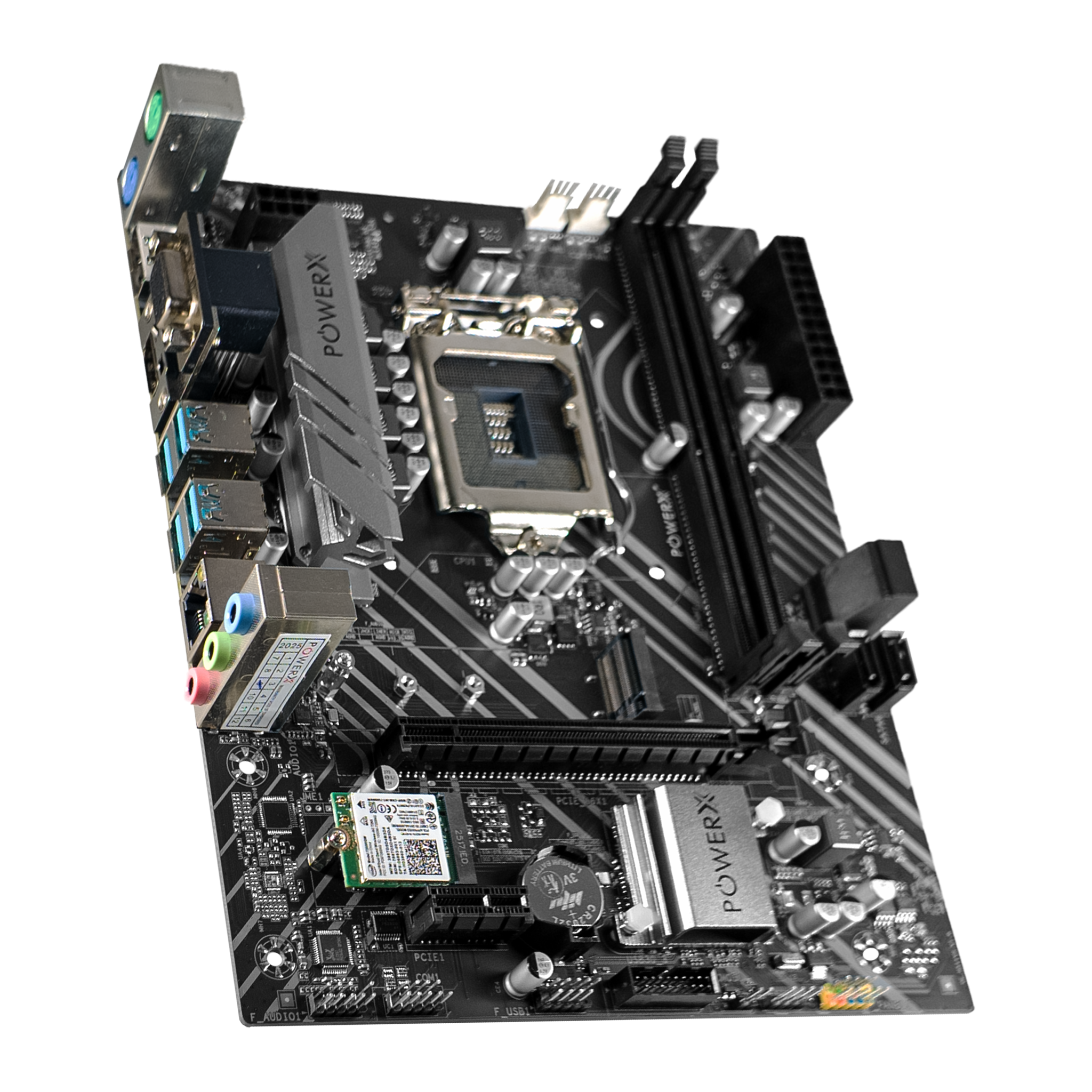

POWERX PMB-H510-DDR4 Motherboard with Wi-Fi + Bluetooth
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-H510-DDR4 Motherboard with Wi-Fi + Bluetooth
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India
The PMBH510DDR4 Micro ATX Motherboard is based on the Intel H510 chipset and supports 10th and 11th generation Intel Core i3, i5, i7, and i9 CPUs with the LGA 1200 socket. It comes with built-in Wi-Fi and Bluetooth and it is designed in a compact 17 x 22 cm Micro ATX form factor and supports DDR4 memory up to 64GB (2 x DIMM) at speeds of up to 3200MHz, as well as dual-channel architecture for steady performance. The board includes EFI BIOS for easy system management and dependable boot control.
It has PCIe x16, PCIe x1 and M.2 NVMe/NGFF extension slots, three SATA connections, HDMI and DisplayPort outputs, USB 3.0 and USB 2.0 ports, Gigabit LAN (10/100/1000 Mbps), and HD audio with Line In, Line Out, and Mic In. It supports Windows, Linux, and Chrome OS. Accessories include an I/O panel, a user manual, and a SATA connection, making it suitable for home, office, and corporate desktop configurations.
| Category | Details |
|---|---|
| Brand | POWERX |
| Model | PMBH510DDR4 |
| Form Factor | Micro ATX (17 x 22cm) |
| Chipset | Intel H510 |
| CPU Support | 10th and 11th Gen |
| CPU Socket | LGA 1200 |
| Processor Support | Intel Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR4 |
| Memory Slots | 2 x DIMM |
| Max Memory | 64GB 32GB x 2) |
| Memory Speed | 3200 MHz |
| Wi-Fi | Wi-Fi 5 |
| Bluetooth | Bluetooth 4.0 |
| Dual Channel Support | Yes |
| PCIe x16 Slot | x1 |
| PCIe x1 Slot | x1 |
| M.2 Slots | x2 |
| SATA Ports | x3 |
| I/O Panel | 1 x PS2 | 1 x HDMI | 1 x DP | 2 x USB3.0 | 2 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100/1000Mbps |
| Expansion Slots | PCIe x 16 | PCIe x 1 | M.2 NVMe/NGFF slot | M.2 Wi-Fi |
| HDMI Port | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 2 |
| USB Front Header | Yes |
| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | Yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |
| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
