POWERX PMB-H110-DDR4 Motherboard with Wi-Fi + Bluetooth
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-H110-DDR4 Motherboard with Wi-Fi + Bluetooth
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India

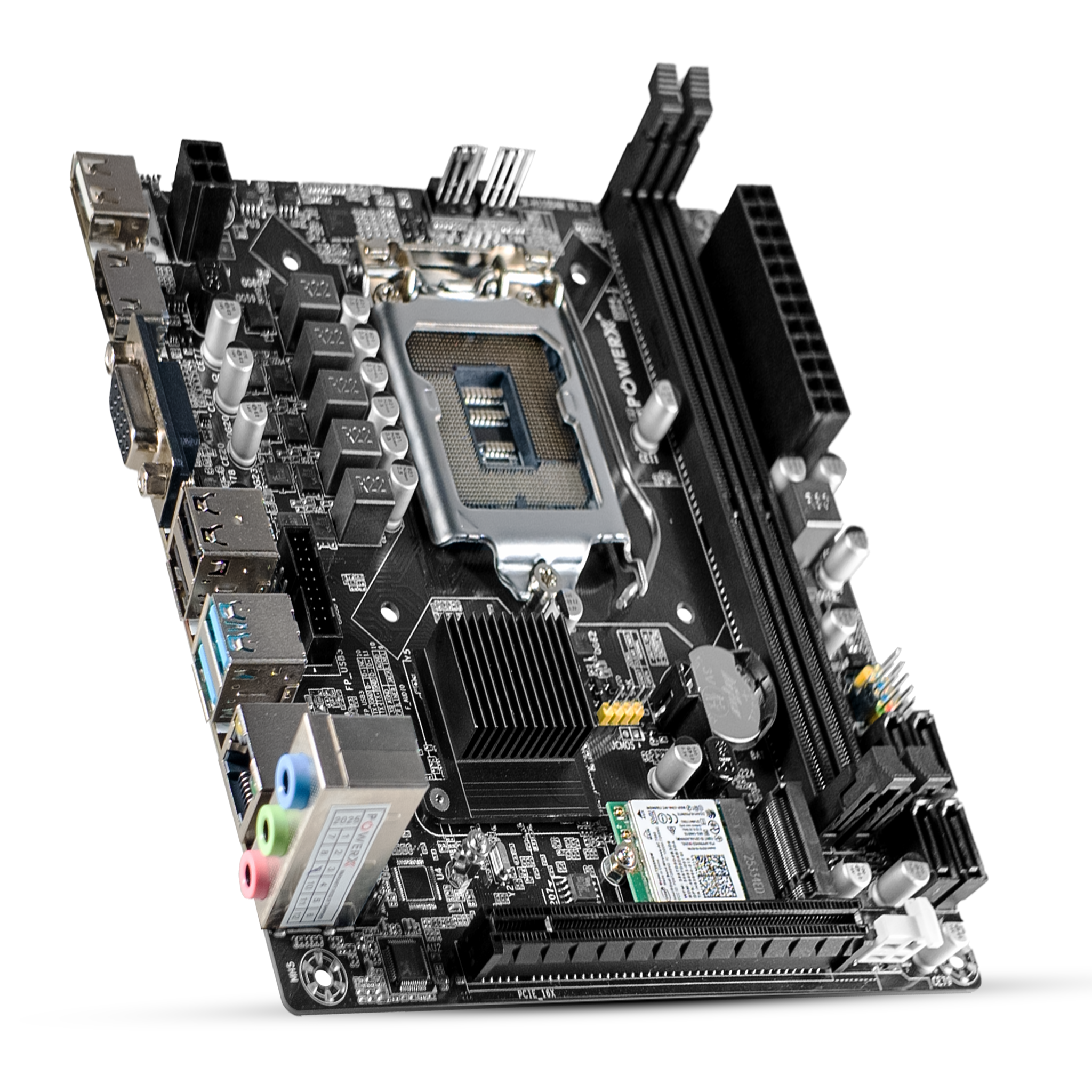

The PMBH110DDR4 Micro-ATX Motherboard is a dependable and cost-effective platform for Intel 6th, 7th, 8th, and 9th Generation Core i3, i5, i7, and i9 processors with LGA 1151 sockets. It comes with built-in Wi-Fi and Bluetooth and it uses the H110 chipset and supports DDR4 memory with two DIMM slots, allowing for up to 16GB RAM (2133MHz) in dual-channel mode. The tiny Micro-ATX form factor (17 × 19 cm) makes it suitable for home, office, and budget-friendly desktop PCs.
The motherboard has one PCIe x16 slot, M.2 NVMe/NGFF slot for expansion and three SATA connectors for storage devices. The back I/O panel has HDMI and VGA display outputs, USB 3.0 and USB 2.0 connections, 3-in-1 audio, and 10/100 Mbps LAN for reliable wired networking. Other notable features include EFI BIOS, RGB header, CPU and system fan headers, front USB and audio support, a 20+4 pin power connector, and extensive OS compatibility with Windows, Linux, and Chrome OS. To facilitate setup, the box includes the motherboard, I/O panel, SATA cable, driver CD, and user manual.
| Category | Details |
|---|---|
| Brand | POWERX |
| Model | PMBH110DDR4 |
| Form Factor | Micro ATX (17 x 19cm) |
| Chipset | Intel H110 |
| CPU Support | 6th, 7th, 8th and 9th Gen |
| CPU Socket | LGA 1151 |
| Processor Support | Intel Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR4 |
| Memory Slots | 2 x DIMM |
| Max Memory | 16GB (8GB x 2) |
| Memory Speed | 2133 MHz |
| Wi-Fi | Wi-Fi 5 |
| Bluetooth | Bluetooth 4.0 |
| Dual Channel Support | Yes |
| PCIe x16 Slot | x1 |
| M.2 Slots | x2 |
| SATA Ports | x3 |
| I/O Panel | 1 x HDMI | 1 x VGA | 2 x USB3.0 | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100Mbps |
| Expansion Slots | PCIe x 16 | M.2 NVMe/NGFF slot | M.2 Wi-Fi |
| HDMI Port | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 4 |
| USB Front Header | Yes |
| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | Yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |
| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
