POWERX PMB-H81-DDR3 NVMe MOTHERBOARD
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-H81-DDR3 NVMe MOTHERBOARD
Normal
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India
%20is%20a%20reliable%20choice%20for%20systems%20powered%20by%204th%20and%205th%20Gen%20Intel%20Core%20i3,%20i5,%20i7,%20and%20i9%20processors%20with%20the%20LGA%201150%20socket.%20It%20uses%20the%20H81%20chipset%20a...
){kind=link}

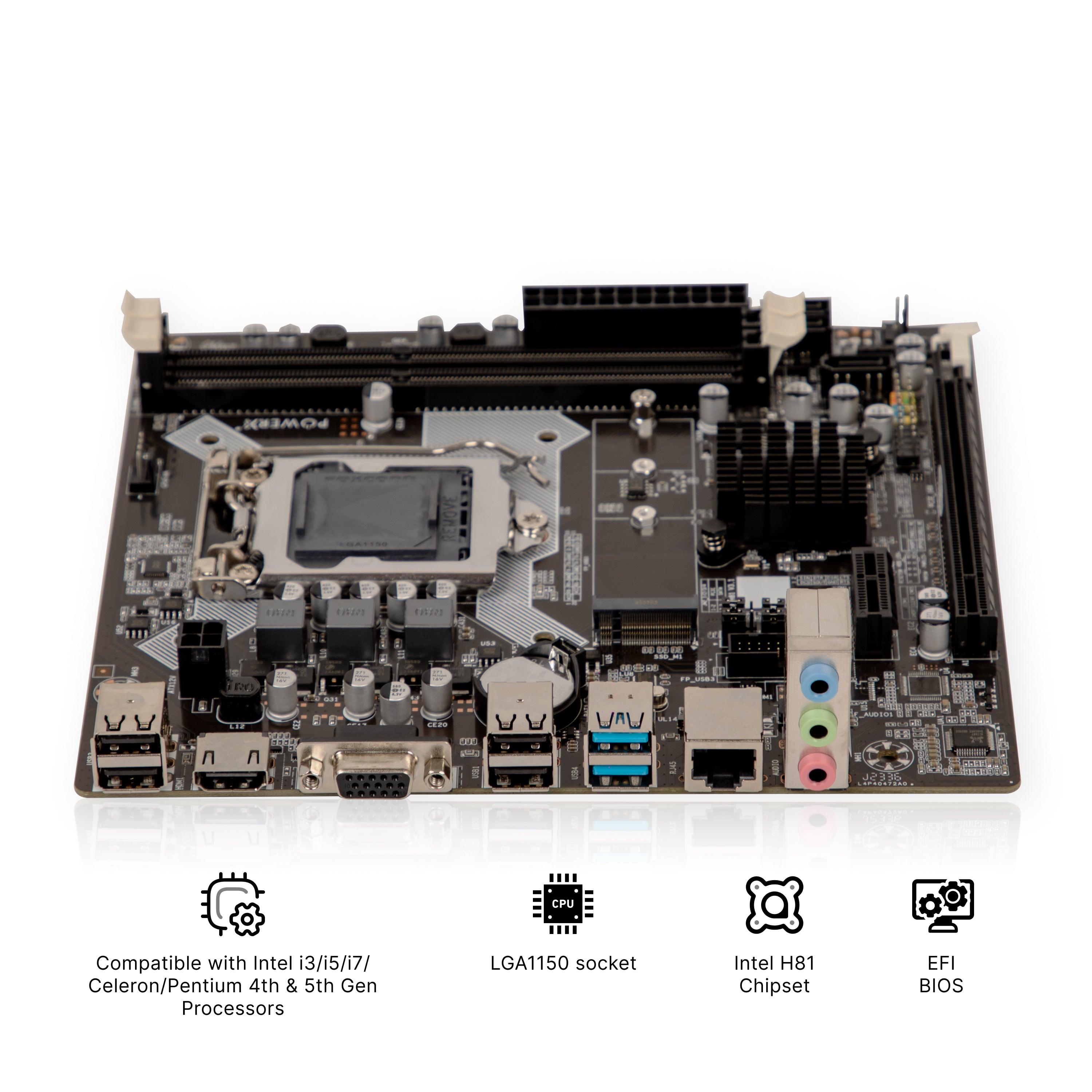

This Micro-ATX H81 Motherboard (17 × 19 cm) is a reliable choice for systems powered by 4th and 5th Gen Intel Core i3, i5, i7, and i9 processors with the LGA 1150 socket. It uses the H81 chipset and supports DDR3 memory with two DIMM slots, allowing for up to 16GB of RAM (1600 MHz) with dual-channel compatibility. The compact design makes it excellent for home, business, and value-oriented desktop systems that demand consistent daily performance.

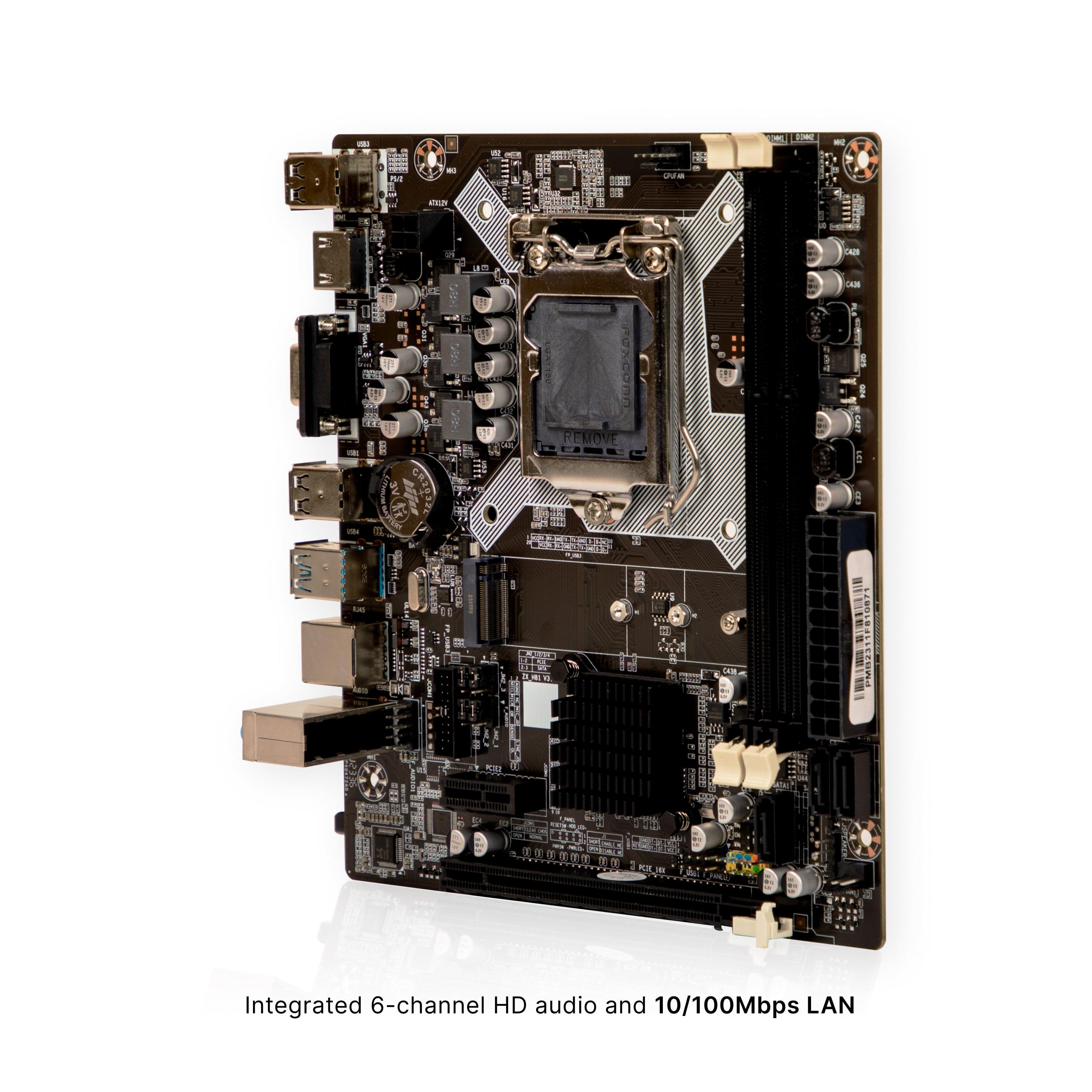

The motherboard includes one PCIe x16 slo, one PCIe x1 slot and M.2 NVMe/NGFF slot for expansion, as well as three SATA ports for storage. HDMI and VGA display outputs, USB 3.0 and USB 2.0 ports, 3-in-1 audio, and LAN (10/100 Mbps) support provide reliable networking. Other notable features include EFI BIOS, front USB and audio connections, CPU and system fan headers, a 20+4 pin power connector, and broad OS compatibility with Windows, Linux, and Chrome OS. The package includes the motherboard, I/O panel, SATA cable, driver disk, and user manual for simple installation.

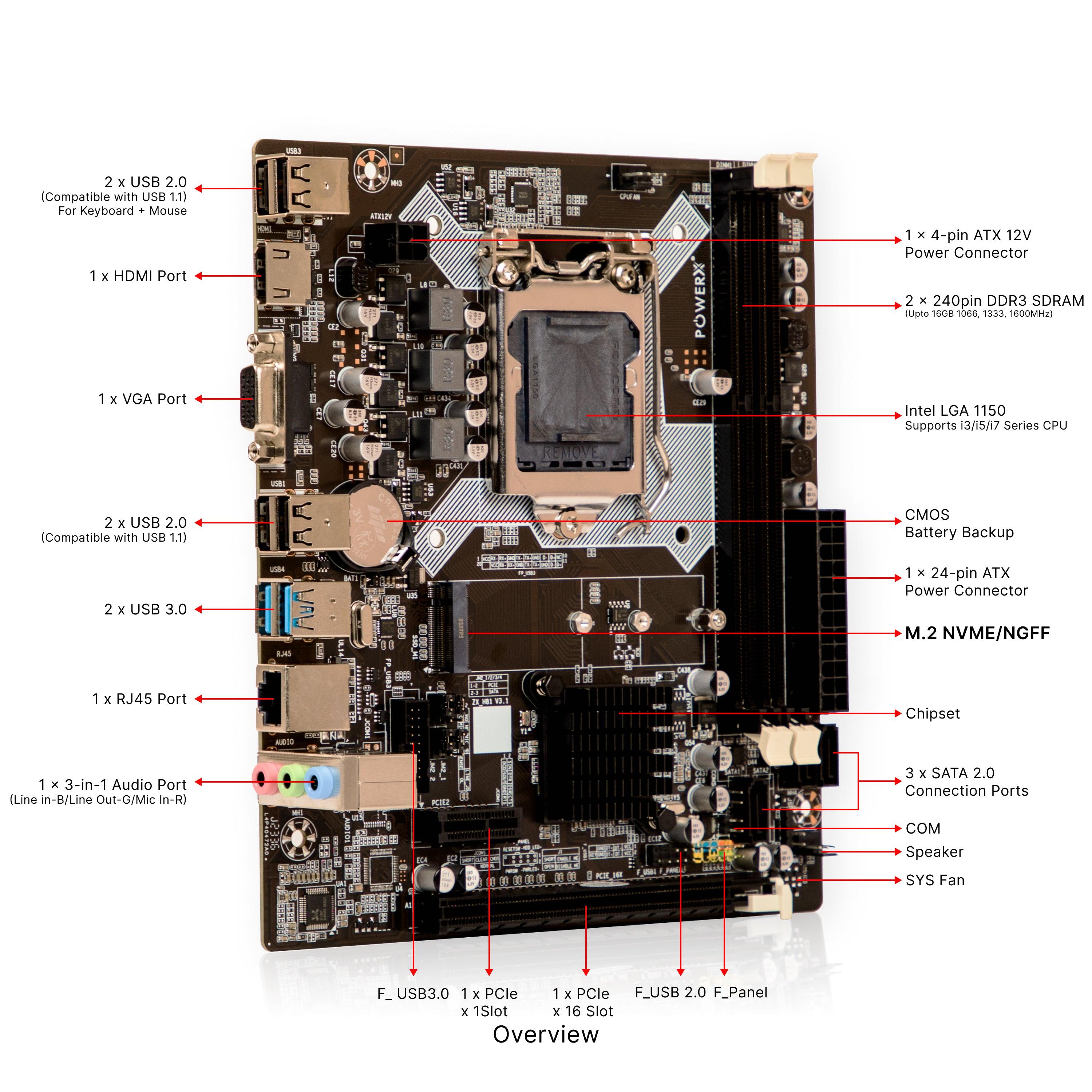

| Specification | Details |
| Model | PMBH81DDR3 |
| Form Factor | Micro ATX (17 x 19cm) |
| Chipset | H81 |
| CPU Support | 4th and 5th Gen |
| Socket | LGA 1150 |
| Processor Support | Inter Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR3 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 16GB (8GB x 2) |
| Memory Speed | 1600 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slots | x1 |
| PCIe x1 Slots | x1 |
| SATA Ports | x3 |
| I/O Panel | 1 x HDMI | 1 x VGA | 2 x USB3.0 | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100Mbps |
| Expansion Slots | PCIe x 16 | PCIe x 1 |
| HDMI Ports | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 4 |
| USB Front Header | Yes |
| LAN | 10/100 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |

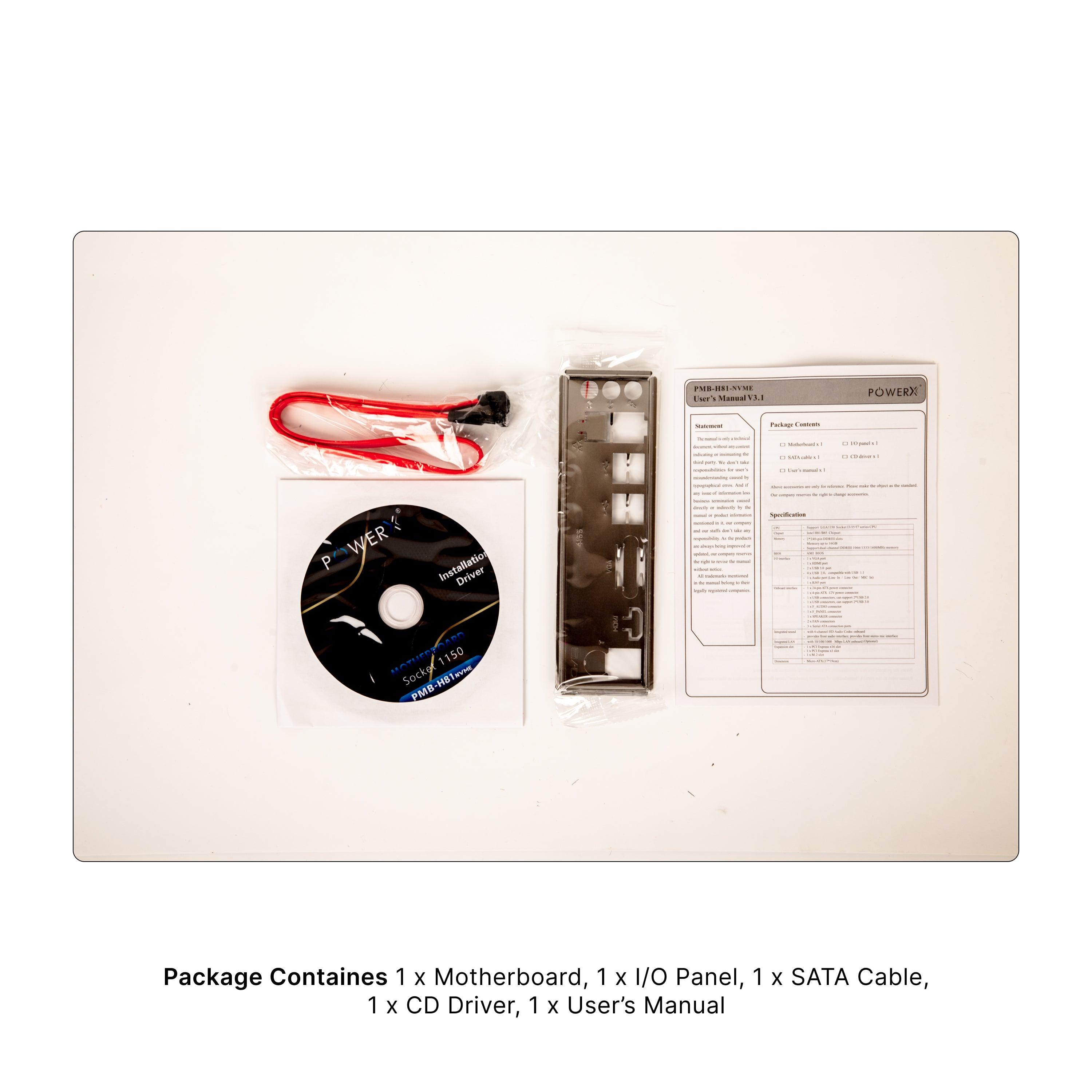

| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
| Motherboard Drivers | Click Here |
| Audio Drivers | Click Here |
