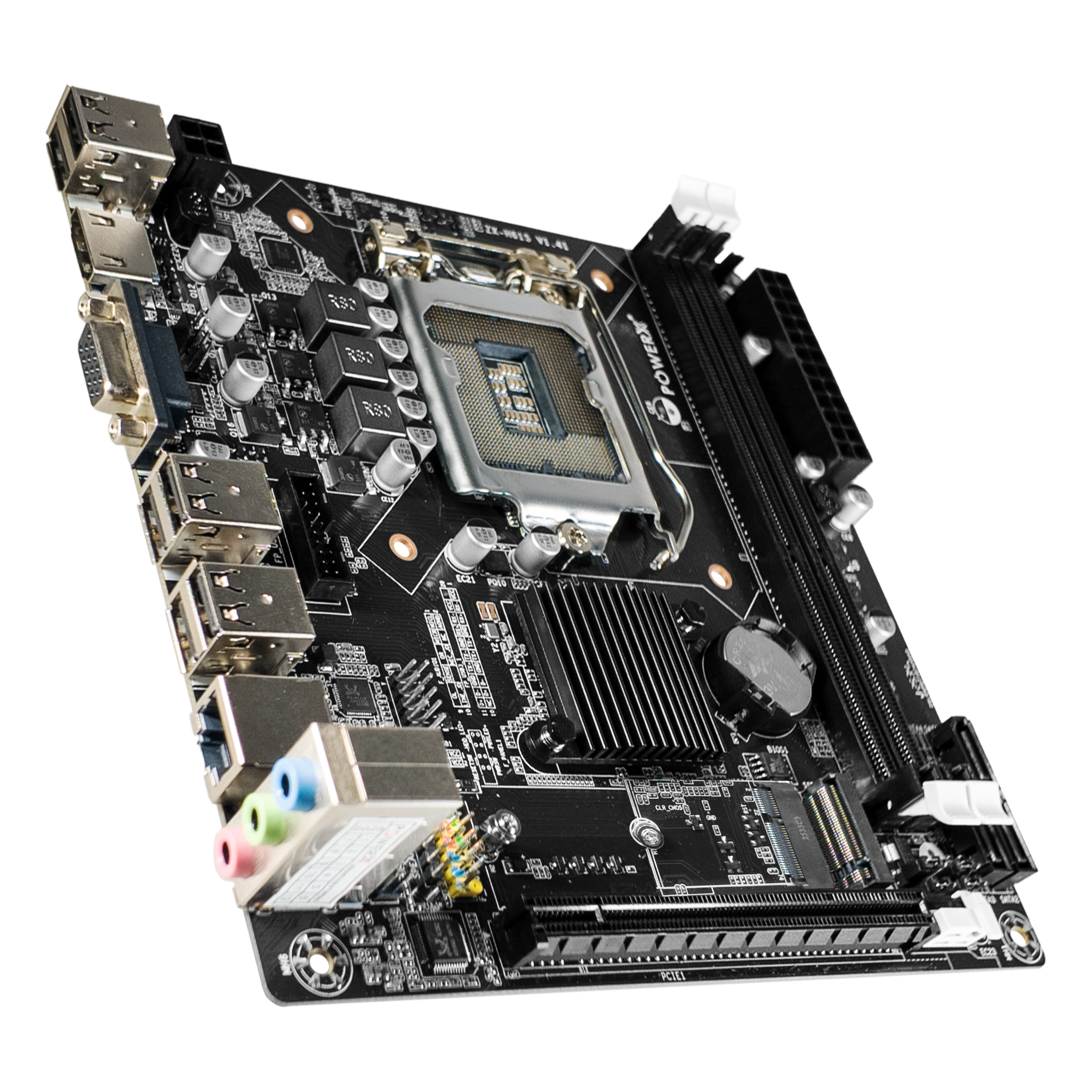

The PMBH61DDR3 Micro-ATX Motherboard (17 × 21.5 cm) is an effective option for everyday computing. It is built on the Intel H61 chipset with LGA 1155 socket support for 2nd and 3rd Gen Intel Core i3, i5, i7, and i9 processors. It supports DDR3 memory with two DIMM slots, allowing for up to 16GB of RAM at 1066 / 1333 / 1600 MHz and dual-channel support, ensuring smooth and steady performance for home, office, and business PCs.
The motherboard is designed for flexibility, with one PCIe x16 slot, one PCIe x1 slot, M.2 NVMe/NGFF and Wi-Fi slot for extension, as well as three SATA ports for storage devices. The back I/O panel features HDMI and VGA outputs, 6x USB 2.0 ports, 3-in-1 audio jacks, and 10/100 Mbps LAN connectivity. Additional features include AMI BIOS, front USB and audio connectors, CPU and system fan headers, and a 20+4 pin power connector, making installation simple. It supports Windows, Linux, and Chrome OS, and includes a motherboard, I/O panel, SATA cable, driver disk, and user manual.
| Specification | Details |
| Model | PMBH61DDR3 |
| Form Factor | Micro ATX (17 x 21.5cm) |
| Chipset | H61 |
| CPU Support | 2nd and 3rd Gen |
| Socket | LGA 1155 |
| Processor Support | Intel Core i3/i5/i7/i9 |
| BIOS | AMI |
| Memory Type | DDR3 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 16GB (8GB x 2) |
| Memory Speed | 1066MHz, 1333MHz, 1600 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slot | x1 |
| PCIe x1 Slot | x1 |
| M.2 Slots | x2 |
| SATA Ports | x3 |
| I/O Panel | 1 x HDMI | 1 x VGA | 6 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100/1000Mbps |
| Expansion Slots | PCIe x 16 | PCIe x 1 | M.2 NVMe/NGFF slot | M.2 Wi-Fi |
| HDMI Port | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 2.0 x 6 |
| USB Front Header | Yes |
| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | Yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |
| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
