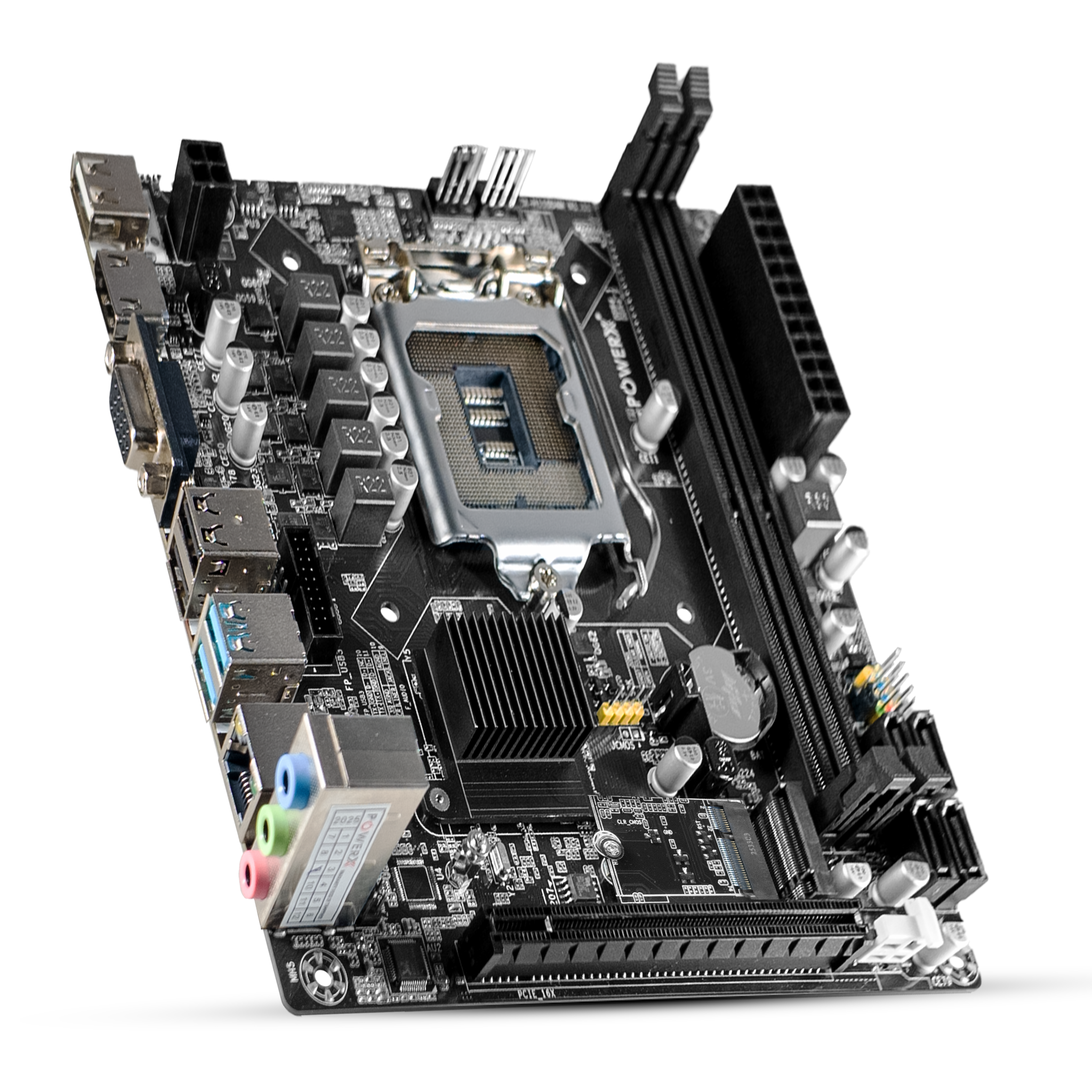

POWERX PMB-H110-DDR4 NVMe + Wi-Fi Slot MOTHERBOARD
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-H110-DDR4 NVMe + Wi-Fi Slot MOTHERBOARD
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India
The PMBH110DDR4 Micro-ATX Motherboard is a dependable and cost-effective platform for Intel 6th, 7th, 8th, and 9th Generation Core i3, i5, i7, and i9 processors with LGA 1151 sockets. It uses the H110 chipset and supports DDR4 memory with two DIMM slots, allowing for up to 16GB RAM (2133MHz) in dual-channel mode. The tiny Micro-ATX form factor (17 × 19 cm) makes it suitable for home, office, and budget-friendly desktop PCs.
The motherboard has one PCIe x16 slot, M.2 NVMe/NGFF and Wi-Fi slot for expansion and three SATA connectors for storage devices. The back I/O panel has HDMI and VGA display outputs, USB 3.0 and USB 2.0 connections, 3-in-1 audio, and 10/100 Mbps LAN for reliable wired networking. Other notable features include EFI BIOS, RGB header, CPU and system fan headers, front USB and audio support, a 20+4 pin power connector, and extensive OS compatibility with Windows, Linux, and Chrome OS. To facilitate setup, the box includes the motherboard, I/O panel, SATA cable, driver CD, and user manual.
| Specification | Details |
| Model | PMBH110DDR4 |
| Form Factor | Micro ATX (17 x 19cm) |
| Chipset | H110 |
| CPU Support | 6th, 7th, 8th and 9th Gen |
| Socket | LGA 1151 |
|
Processor Support |
Intel Core i3/i5/i7/i9 |
| BIOS | EFI |
| Memory Type | DDR4 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 16GB (8GB x 2) |
| Memory Speed | 2133 MHz |
| Dual Channel Support | Yes |
| PCIe x16 Slot | x1 |
| M.2 Slots | x2 |
| SATA Ports | x3 |
| I/O Panel | 1 x HDMI | 1 x VGA | 2 x USB3.0 | 4 x USB2.0 | 3 in 1 Audio | LAN (RJ45) 10/100Mbps |
| Expansion Slots | PCIe x 16 | M.2 NVMe/NGFF slot | M.2 Wi-Fi |
| HDMI Port | x1 |
| VGA Port | x1 |
| USB Rear Ports | USB 3.0 x 2 | USB 2.0 x 4 |
| USB Front Header | Yes |
| LAN | 10/100/1000 Mbps |
| Audio | Line in / Line out / Mic In |
| Front Audio | Yes |
| Fan Header | CPU Fan | System Fan |
| Power Connector | 20+4Pin |
| OS Support | Windows / Linux / Chrome OS |
| Accessories | 1 x Motherboard / 1 x I/O Panel / 1 x Blue Ray Disk / 1 x User Manual / 1 x SATA Cable |
