POWERX PMB-H81-DDR3 Motherboard | Intel LGA1150 Socket | H81 Chipset | DDR3 RAM | VGA, HDMI, USB 3.0 | NVMe Ready | Micro-ATX | 16GB Max Memory
Pickup available at POWER-X
Usually ready in 24 hours
POWERX PMB-H81-DDR3 Motherboard | Intel LGA1150 Socket | H81 Chipset | DDR3 RAM | VGA, HDMI, USB 3.0 | NVMe Ready | Micro-ATX | 16GB Max Memory
POWER-X
81/B, 2nd Phase, 2nd Cross Rd APMC Yard, Yeswanthpur Industrial Suburb
Yeshwanthpur
560022 Bengaluru KA
India
Get free delivery on all orders above ₹999.
Special Offer for First-Time Shoppers

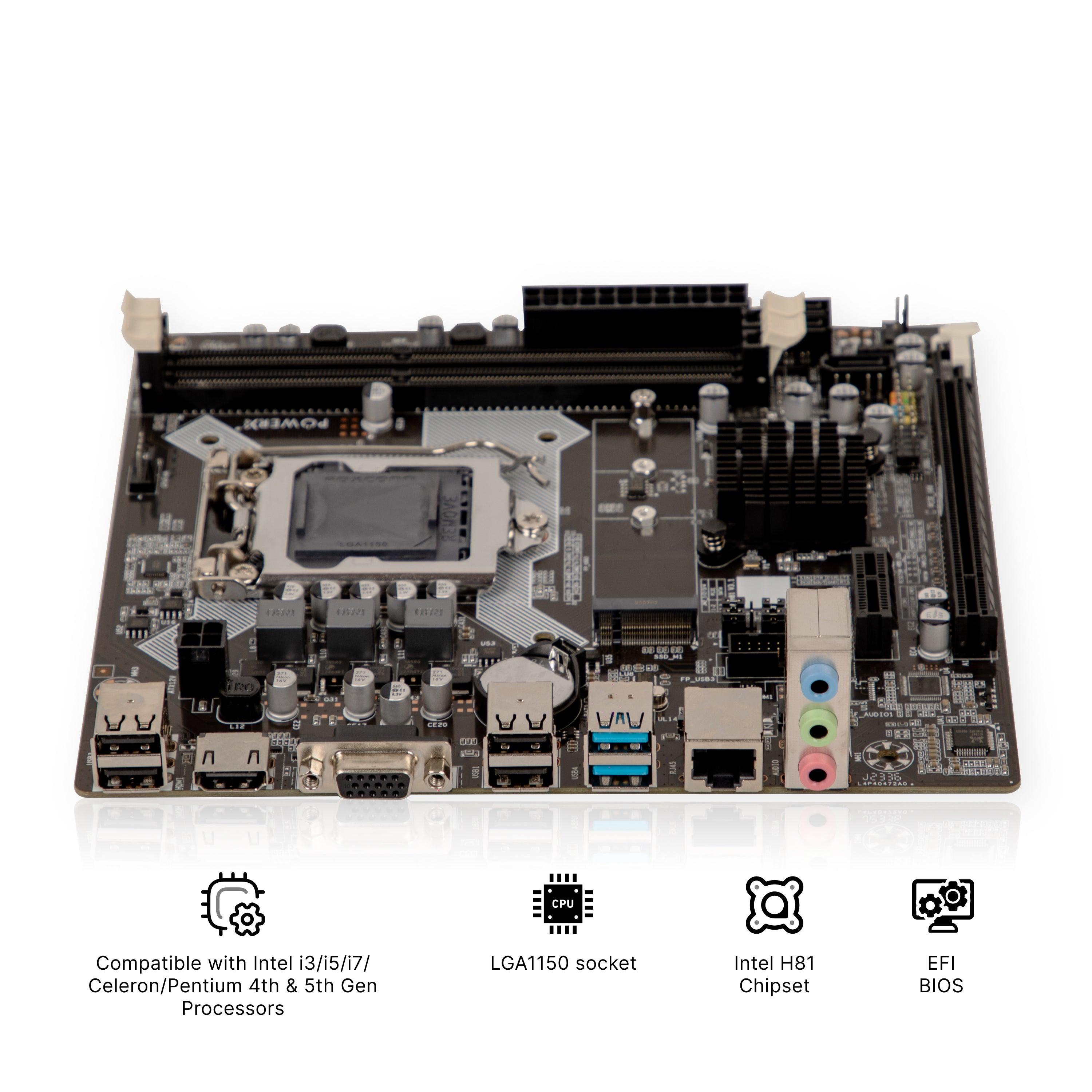

- Intel CPU Support – Supports 4th & 5th Gen i3/i5/i7/Celeron/Pentium
- LGA1150 Socket – Stable connection for Intel 4th & 5th Gen processors
- DDR3 RAM Ready – 2 slots, up to 16GB memory, 1066/1333/1600MHz
- H81 Chipset – Smooth data handling and stable system performance
- EFI BIOS – Easy setup with user-friendly system configuration
- Modern I/O Ports – HDMI, VGA, USB 3.0, USB 2.0, LAN, and Audio
- Expandable Layout – PCIe x16, PCIe x1, M.2 for NVMe, 4 x SATA

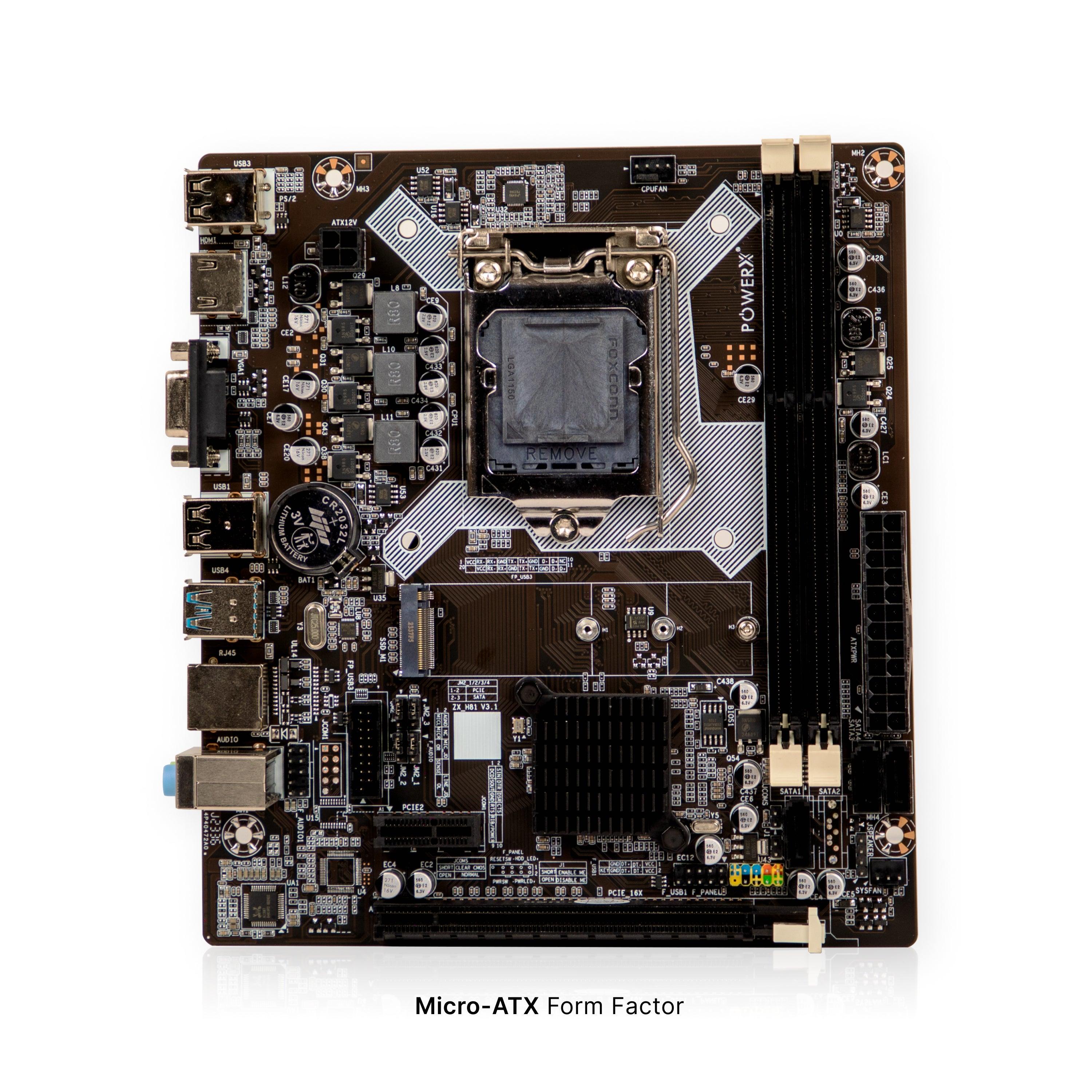

- Compact Design – Micro-ATX form factor, 170 x 190 mm build-friendly
- Download PMB-H81-DDR3 Motherboard Drivers: Click Here
- Realtek Front Panel Audio Drivers: Click Here
The POWERX PMB-H81-DDR3 MOTHERBOARD is built for powerful and stable computing with support for Intel’s 4th and 5th Gen i3, i5, i7, Celeron, and Pentium processors. With its LGA1150 socket and Intel H81 chipset, this board ensures reliable connectivity, smooth data handling, and lasting performance.
Equipped with two DDR3 RAM slots, it supports up to 16GB of memory at speeds of 1066MHz, 1333MHz, and 1600MHz. This dual-channel configuration ensures quick multitasking and responsiveness for daily workloads, media, or office tasks.
Designed for flexibility, the motherboard includes a rich I/O interface: VGA, HDMI, 4 x USB 2.0, 2 x USB 3.0, 3-in-1 audio ports, and RJ45 LAN. The integrated 6-channel HD Audio Codec and front stereo mic interface enhance your audio experience, while the onboard 10/100Mbps LAN ensures stable network access.

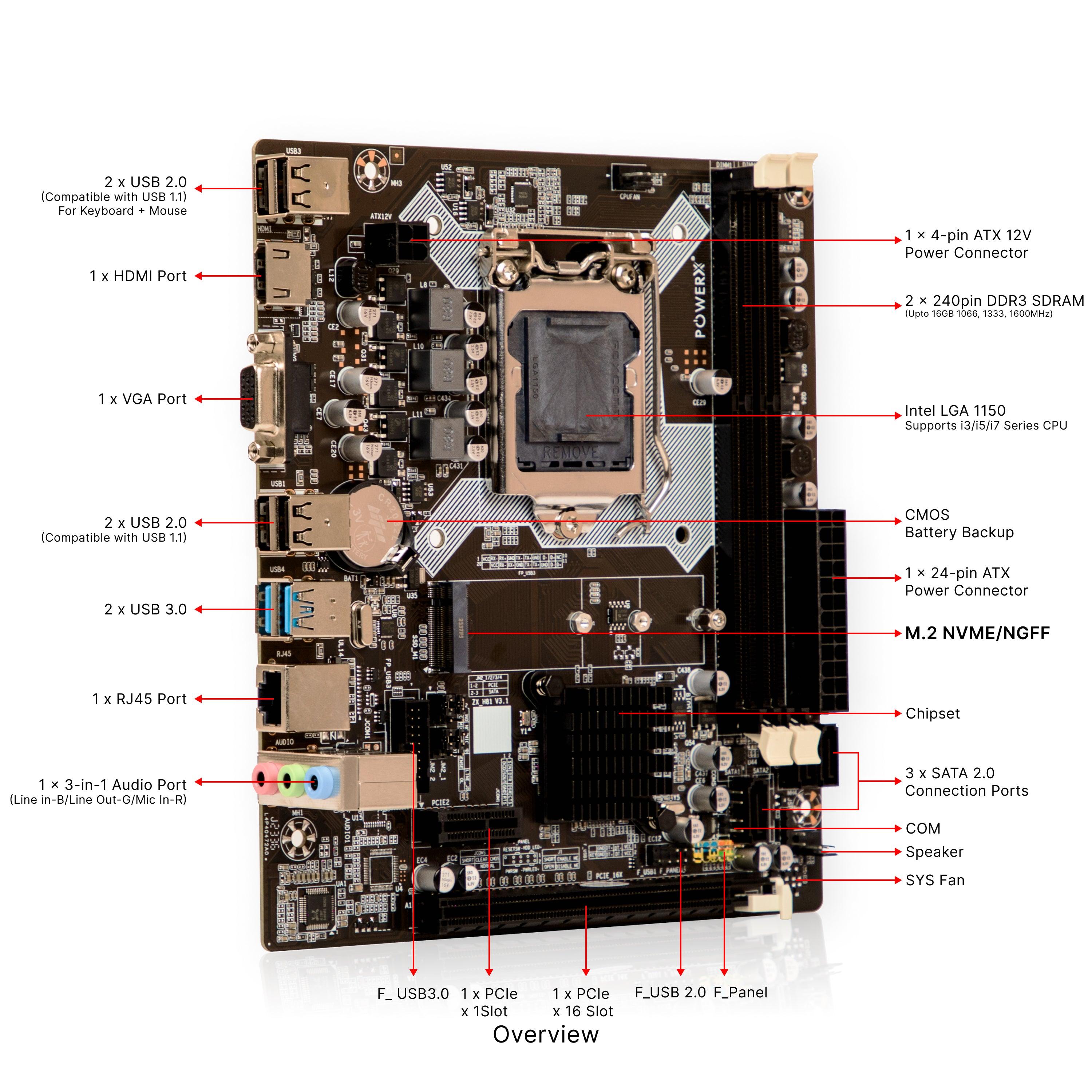

Internally, it provides robust connectivity and expansion through 24-pin ATX, 4-pin ATX 12V, 2 USB 2.0 headers, 2 USB 3.0 headers, 4 SATA ports, F_AUDIO, F_PANEL, and 2 fan headers. The inclusion of 1 PCIe x16, 1 PCIe x1, and M.2 slot (NVMe compatible) allows you to upgrade your system with a GPU, expansion cards, or fast SSD storage.
Compact and efficient, the PMB-H81-DDR3 fits the Micro-ATX form factor (170 x 190 mm), making it ideal for a wide variety of system builds. Whether upgrading or building new, POWERX delivers a motherboard that balances power, performance, and value.
