Intel CPU Ready – Supports 6th to 9th Gen i3/i5/i7/Celeron/Pentium
-
LGA1151 Socket – Compatible with latest Intel desktop processors
-
DDR4 Memory – 2 slots, up to 16GB RAM at 2133MHz speed
-
H110 Chipset – Ensures smooth performance and system stability
-
EFI BIOS – Simplifies system setup and custom configurations
-
HD Connectivity – VGA, HDMI, USB 2.0/3.0, Audio, RJ45 LAN ports
-
Internal Headers – 4 x SATA, USB headers, fan & audio support
-
Compact Build – Micro-ATX 170x190mm for space-saving systems
-
Download Drivers: Click Here

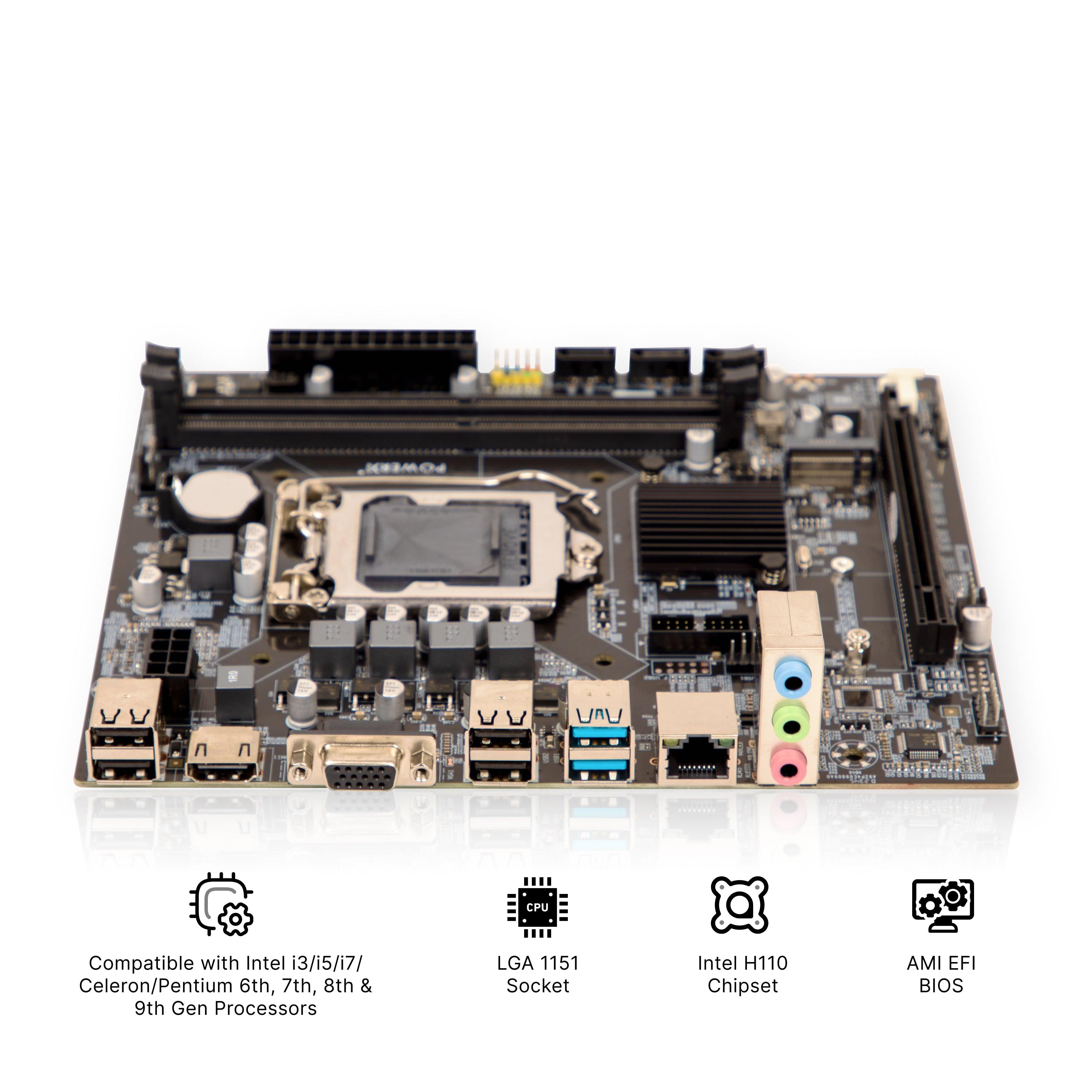

The POWERX PMB-H110-DDR4 MOTHERBOARD is a reliable and versatile platform engineered for high-performance builds using Intel’s 6th, 7th, 8th, or 9th Gen processors. With support for Intel Core i3, i5, i7, Celeron, and Pentium CPUs on the LGA1151 socket, it provides exceptional compatibility and value for office, multimedia, and everyday systems.
Built with the Intel H110 chipset, it ensures consistent data throughput and system reliability. The board features 2 x 284-pin DDR4 slots supporting up to 16GB RAM at 2133MHz, delivering stable and efficient multitasking performance.

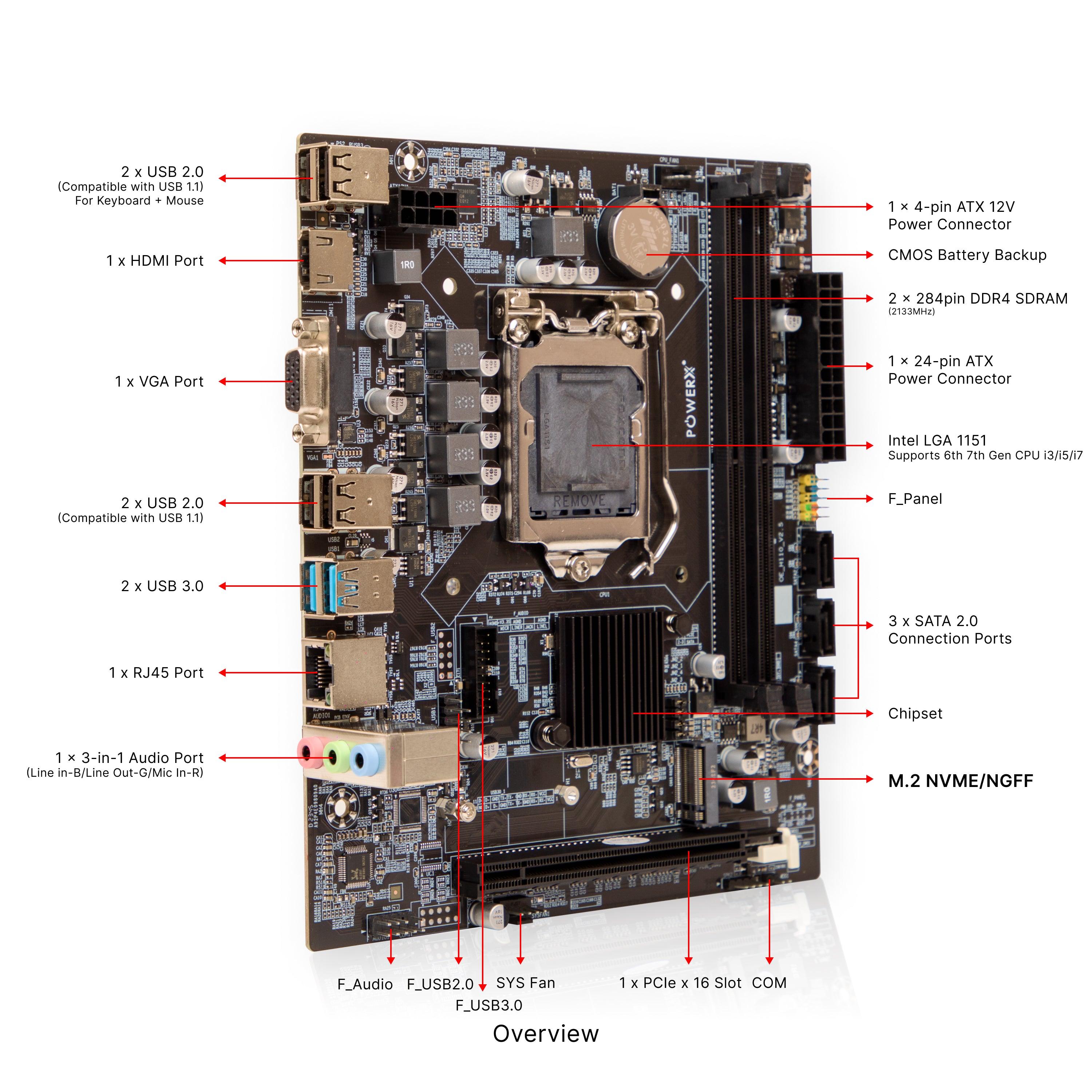

Connectivity is seamless with I/O ports including PS/2, VGA, HDMI, 2 x USB 2.0, 2 x USB 3.0, LAN, and 3-in-1 audio jacks. Internally, it supports 4 SATA ports, dual fan connectors, front audio, speaker, and front panel connections. EFI-based AMI BIOS offers intuitive configuration for all users.
Expand your setup easily with the PCI Express x16 slot, perfect for adding dedicated graphics or expansion cards. The integrated 6-channel HD Audio and front stereo mic enhance sound clarity, making this board ideal for productivity, entertainment, or light gaming builds.

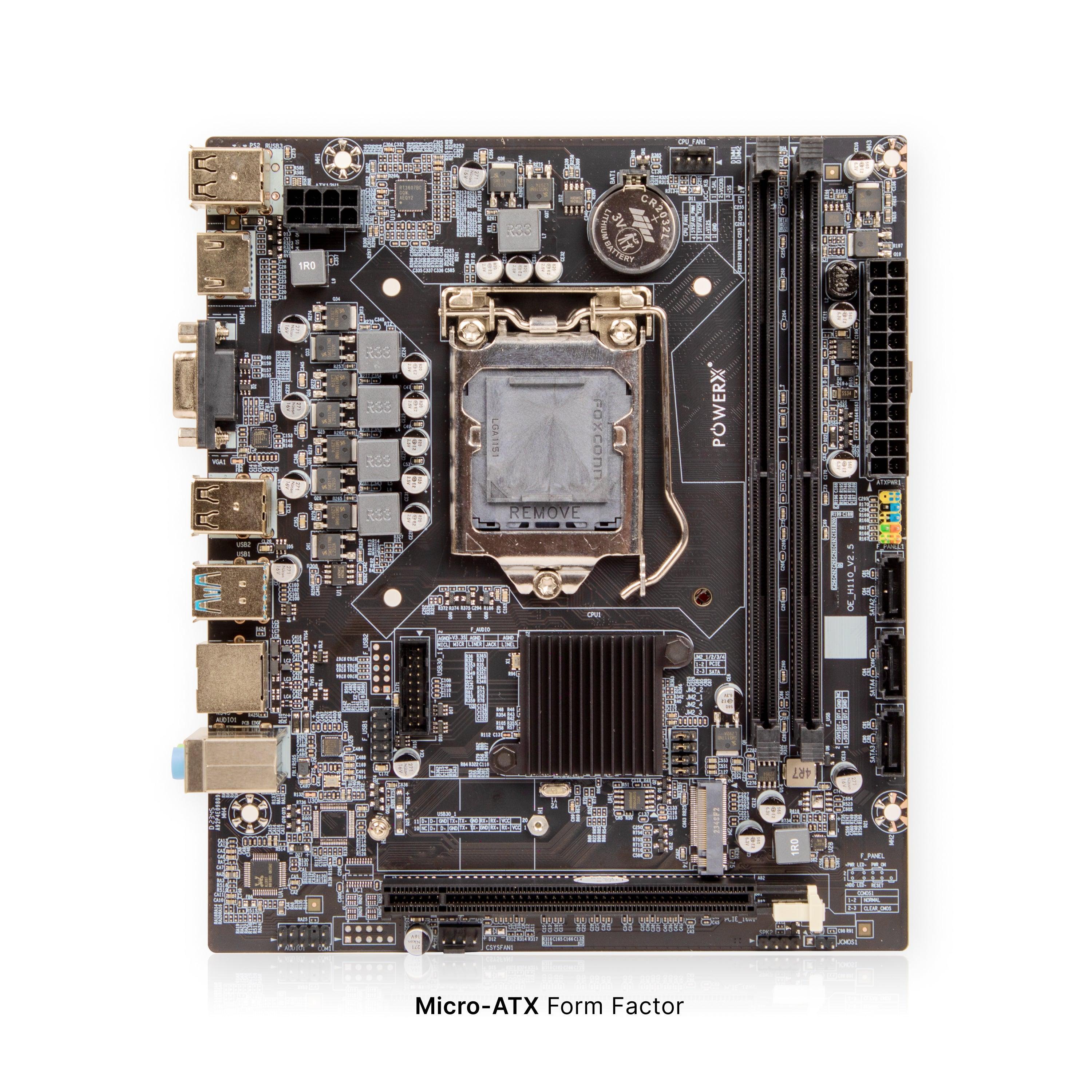

Adhering to the Micro-ATX form factor (170 x 190 mm), the POWERX PMB-H110-DDR4 MOTHERBOARD is a space-efficient, performance-driven choice for modern system builders who want future-ready features without breaking the budget.
