PX04MBD34
Variant · Normal
Details

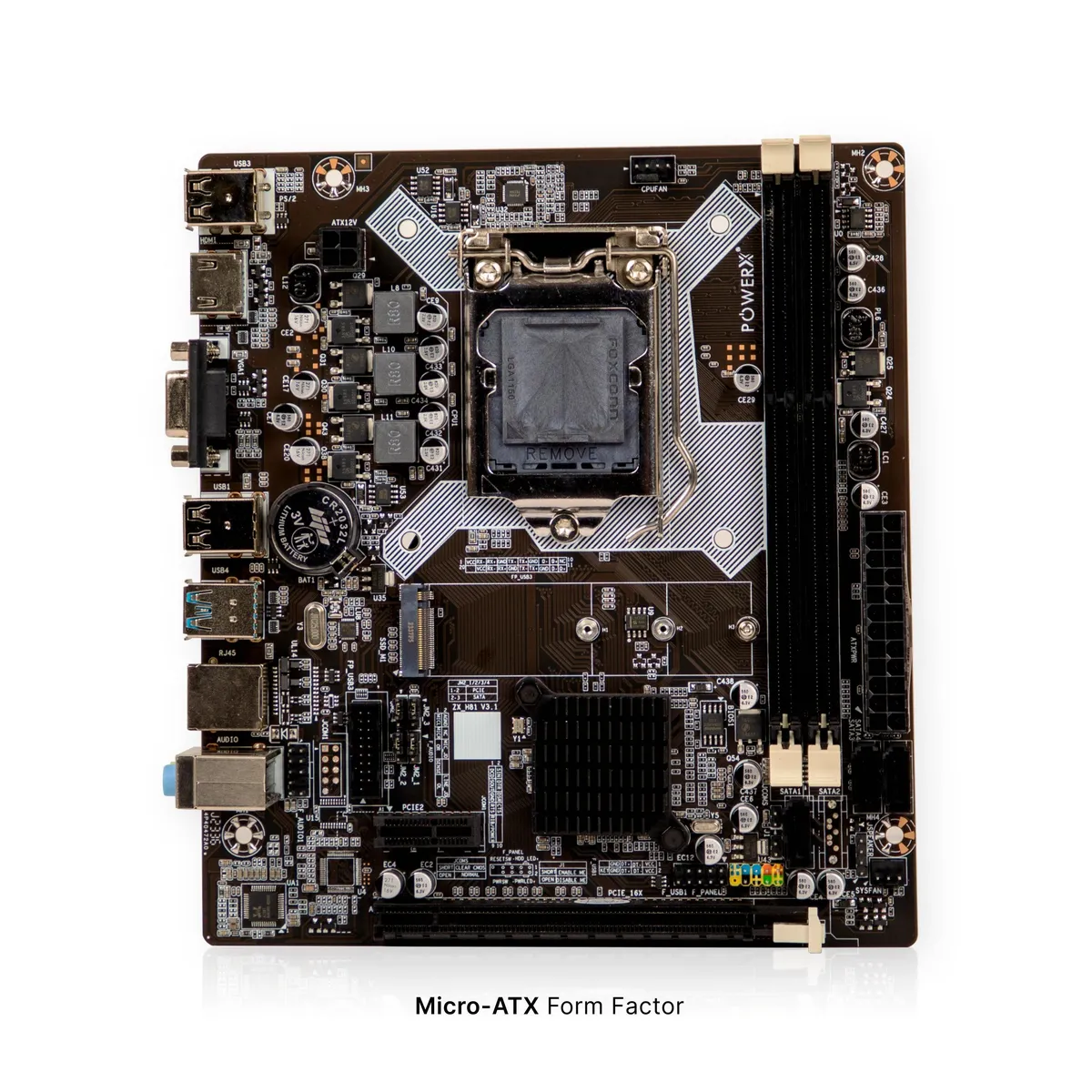

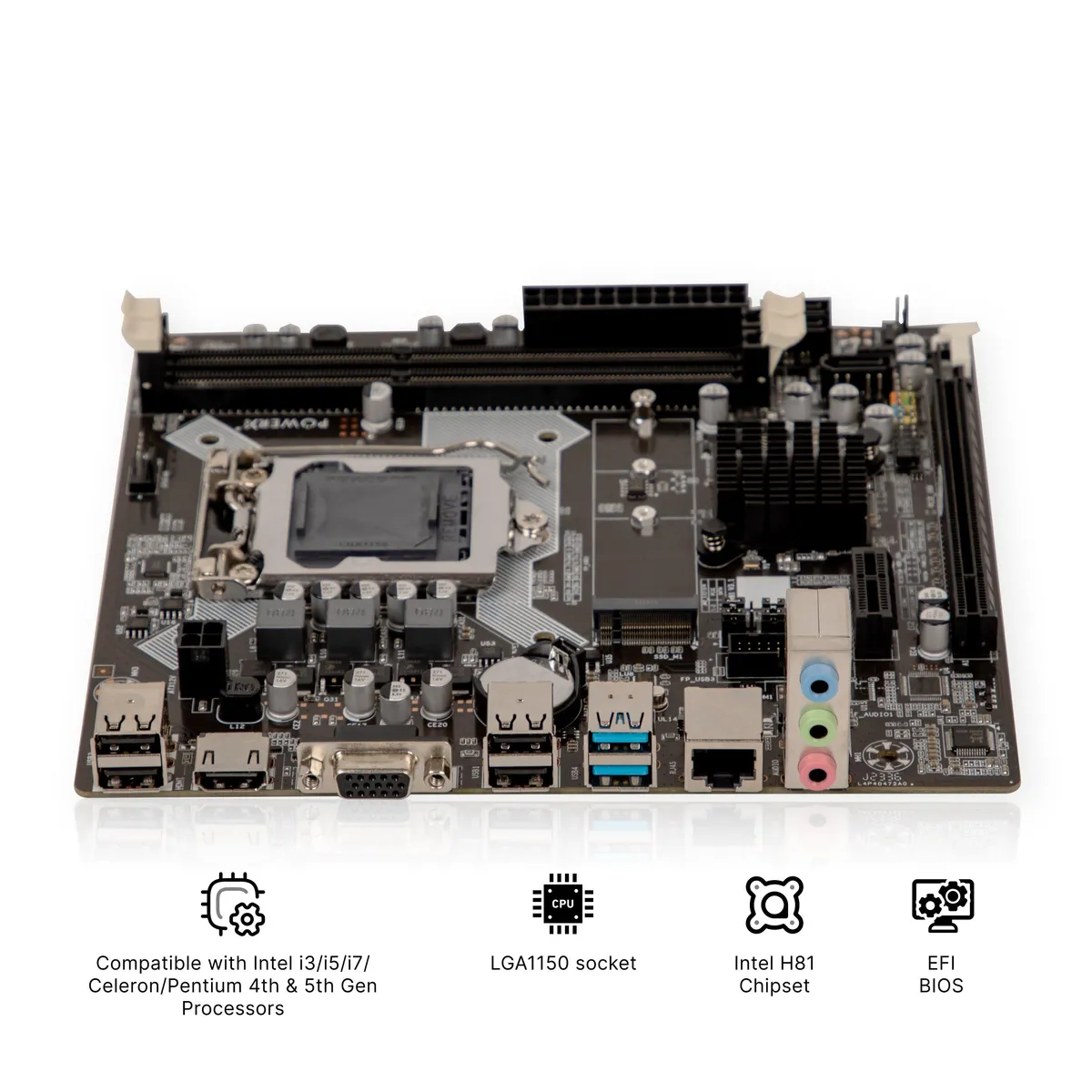

This Micro-ATX H81 Motherboard (17 × 19 cm) is a reliable choice for systems powered by 4th and 5th Gen Intel Core i3, i5, i7, and i9 processors with the LGA 1150 socket. It uses the H81 chipset and supports DDR3 memory with two DIMM slots, allowing for up to 16GB of RAM (1600 MHz) with dual-channel compatibility. The compact design makes it excellent for home, business, and value-oriented desktop systems that demand consistent daily performance.

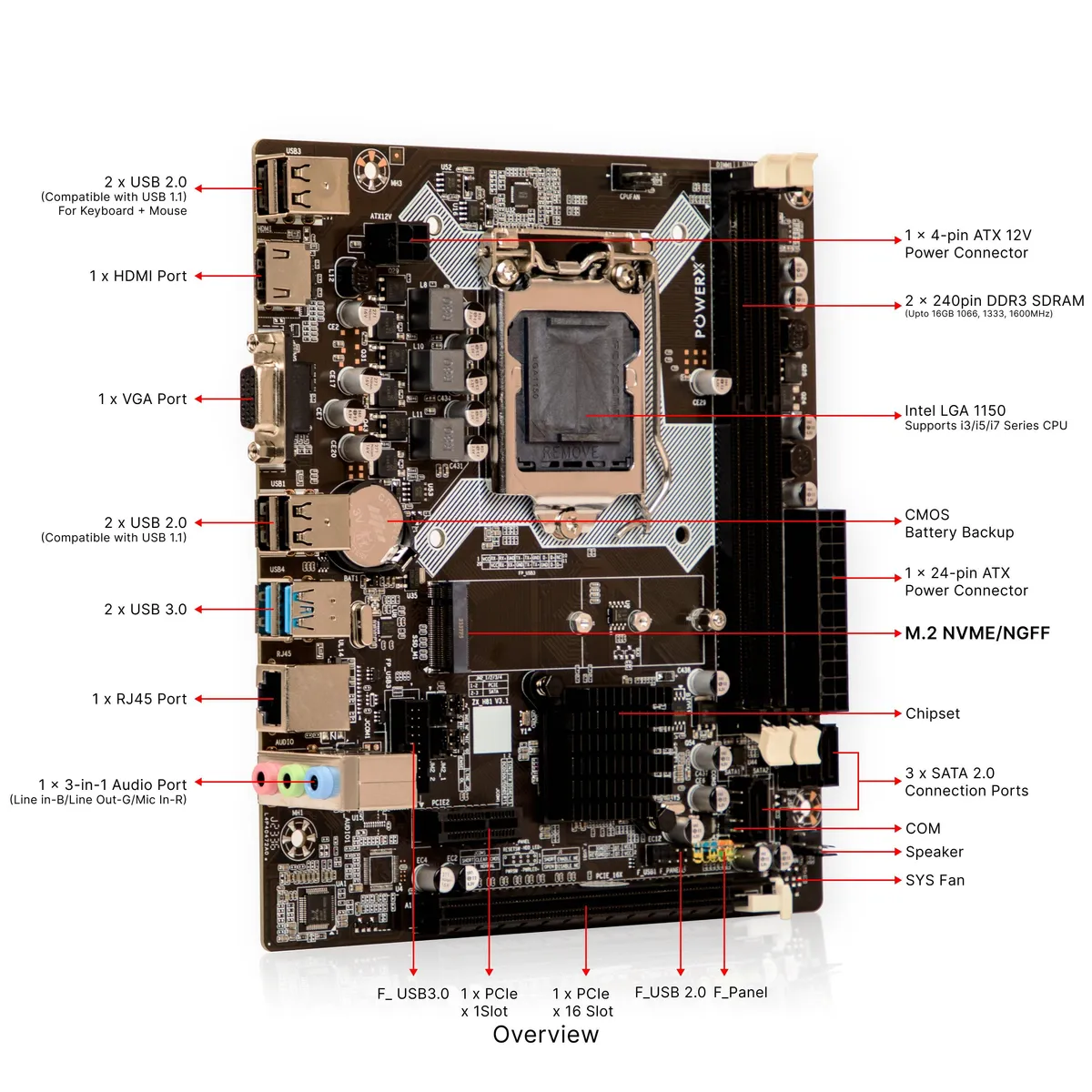

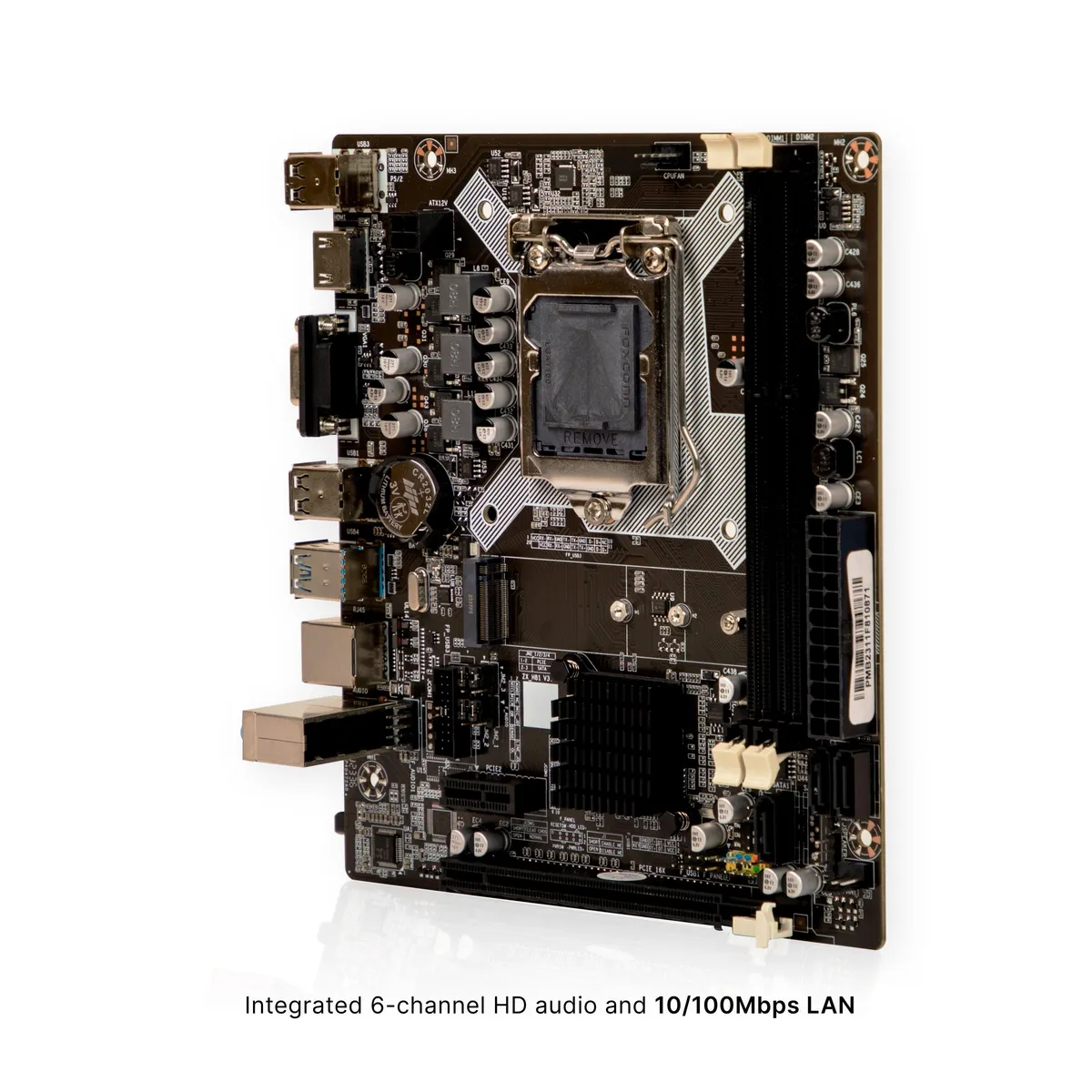

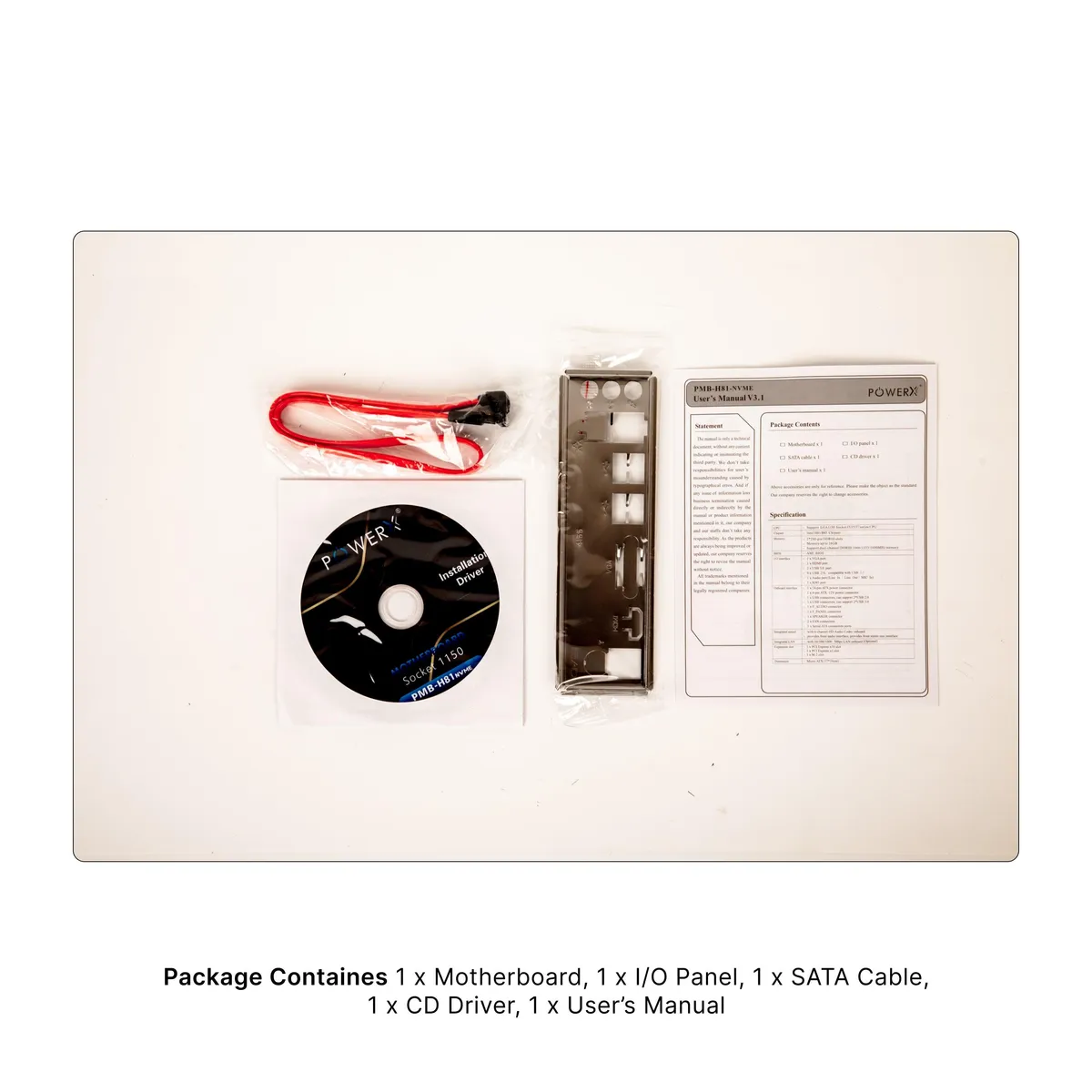

The motherboard includes one PCIe x16 slo, one PCIe x1 slot and M.2 NVMe/NGFF slot for expansion, as well as three SATA ports for storage. HDMI and VGA display outputs, USB 3.0 and USB 2.0 ports, 3-in-1 audio, and LAN (10/100 Mbps) support provide reliable networking. Other notable features include EFI BIOS, front USB and audio connections, CPU and system fan headers, a 20+4 pin power connector, and broad OS compatibility with Windows, Linux, and Chrome OS. The package includes the motherboard, I/O panel, SATA cable, driver disk, and user manual for simple installation.
The socket and chipset rows in the specification table define compatibility. Match the CPU generation to the chipset. Our team can confirm before you order.
Check the memory row: DDR4 boards take DDR4 only, DDR5 boards DDR5 only. Speeds above the rated maximum downclock safely.
Yes. Every boxed board ships with its I/O shield, SATA cables and manual.
Yes. Every SKU ships from our own verified inventory with a PowerX warranty card inside.
What buyers of this category add next, picked by the PowerX bench, not an algorithm.
Dispatch in 24h
On stocked items
Free shipping ₹999+
Pan-India delivery
GST invoice
With every order
Nationwide RMA
48h turnaround target
Buying for a business?
Schools, offices and resellers get quantity pricing, staged delivery and per-unit GST invoicing.
